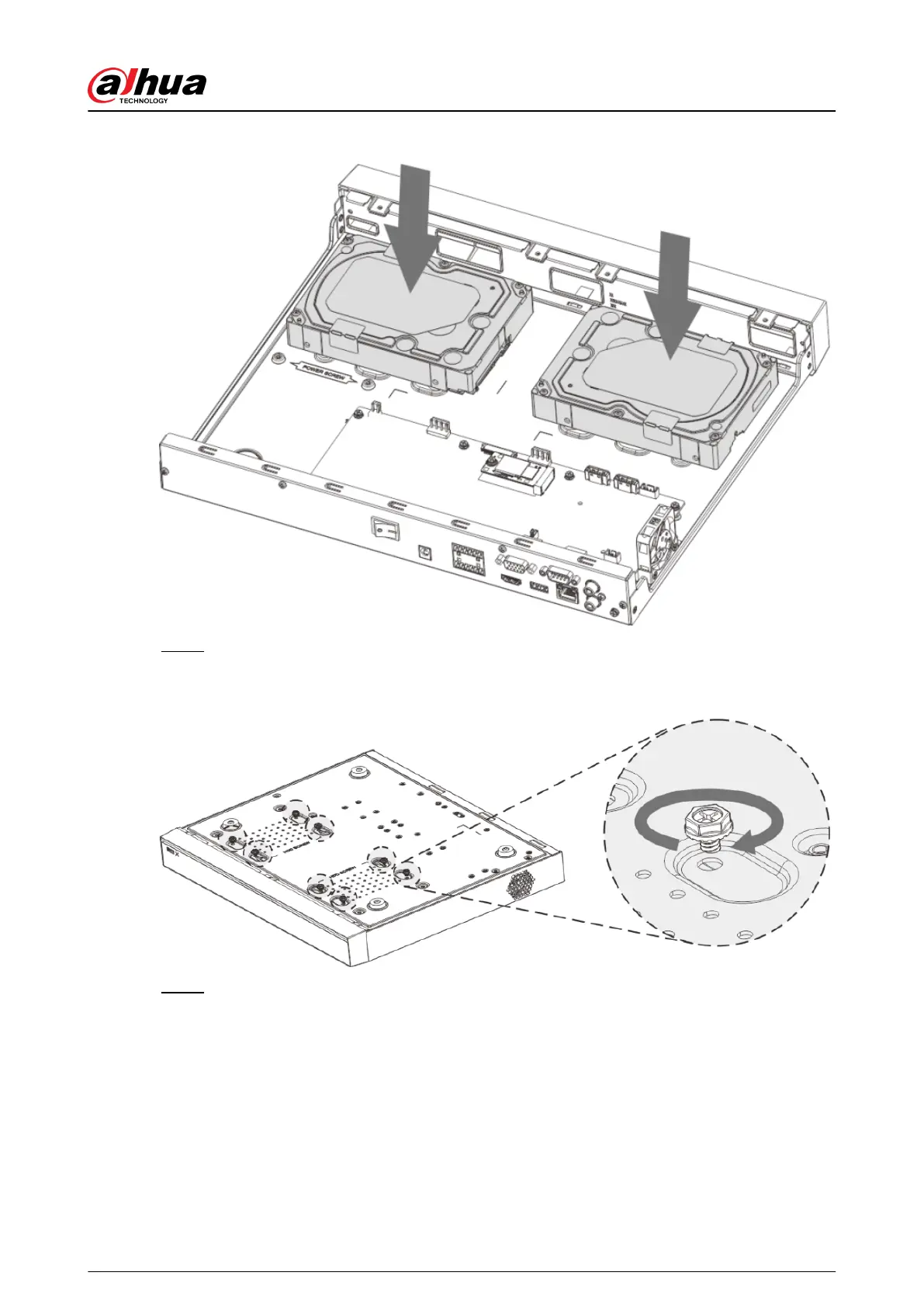

Figure 3-13 Align HDD
Step 4 Turn the device upside down, match the screws with the holes on the HDD and then
fasten them. The HDD is xed to the baseboard.
Figure 3-14 Fasten screws
Step 5 Connect the HDD data cable and power cable to the device.
User's Manual
87
