No. Name No. Name
5 eSATA Port 6
HDMI Port
High-denition decoding card is not
installed in standard hardware
conguration, you can purchase as
needed.
7 VGA Port 8 AUDIO IN, RCA Connector
9 AUDIO OUT, RCA Connector 10 Alarm In/Out
11 Power Input 12 Power Switch
2.2.29 NVR624-XI Series
The redundant power series rear panel of NVR624-XI series is shown as below.

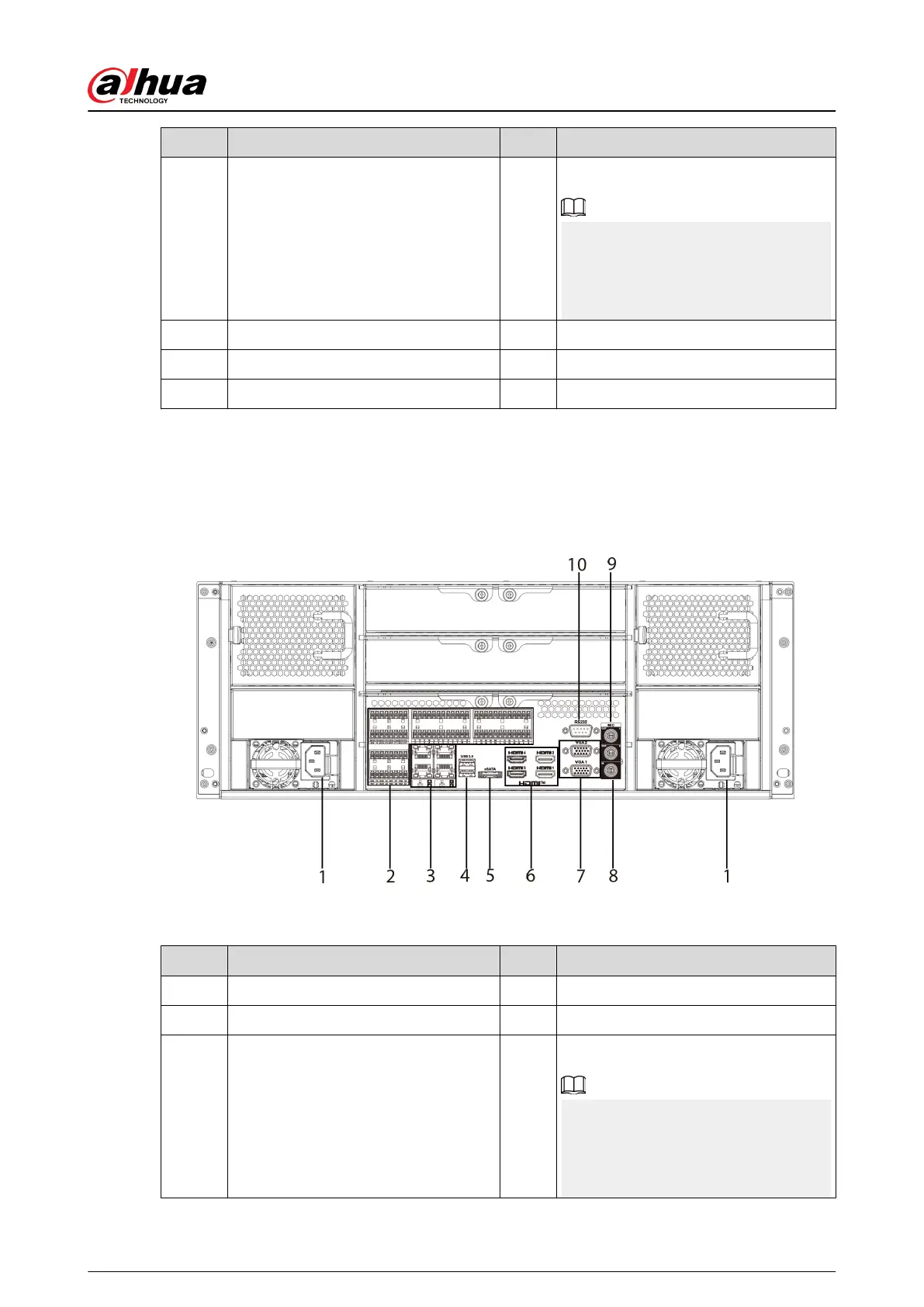

Figure 2-95 Rear panel
Table 2-44 Ports
No.
Name No. Name
1 Power Input 2 Alarm In/Out
3 Network Port 4 USB Port
5 eSATA Port 6
HDMI Port
High-denition decoding card is not
installed in standard hardware
conguration, you can purchase as
needed.
User's Manual
68
