2.2.4 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/
NVR52-24P-4KS2/NVR52-8P-4KS2E/NVR52-16P-4KS2E/
NVR52-EI/NVR52-8P-EI/NVR52-16P-EI/NVR42-16P-EI

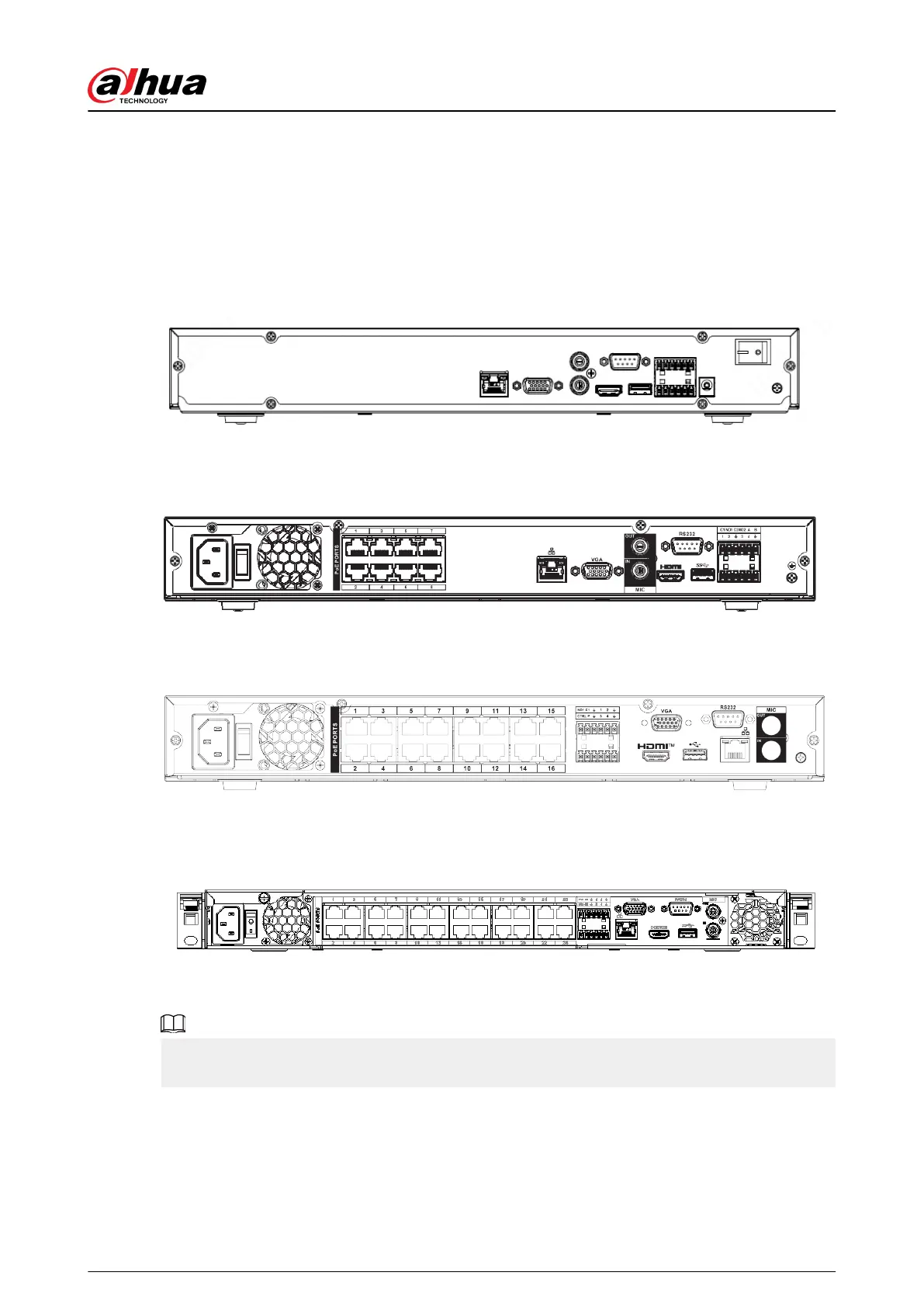

The NVR52-4KS2 series rear panel is shown as below.
Figure 2-39 Rear panel
The NVR52-8P-4KS2 series rear panel is shown as below.
Figure 2-40 Rear panel
The NVR52-16P-4KS2/NVR42-16P-EI series rear panel is shown as below.
Figure 2-41 Rear panel
The NVR52-24P-4KS2 series rear panel is shown as below.
Figure 2-42 Rear panel
The NVR52-8P-4KS2E/52-16P-4KS2E series rear panel is shown as below.
The following gure takes NVR52-16P-4KS2E series as an example. NVR52-8P-4KS2E has 8 ePoE
ports only.
