Icon Name Function
PWR Power status indicator light
The blue light is on when the power
connection is normal.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner and
more.
2.1.12 NVR608-32-4KS2 Series
The following gures are for reference only.

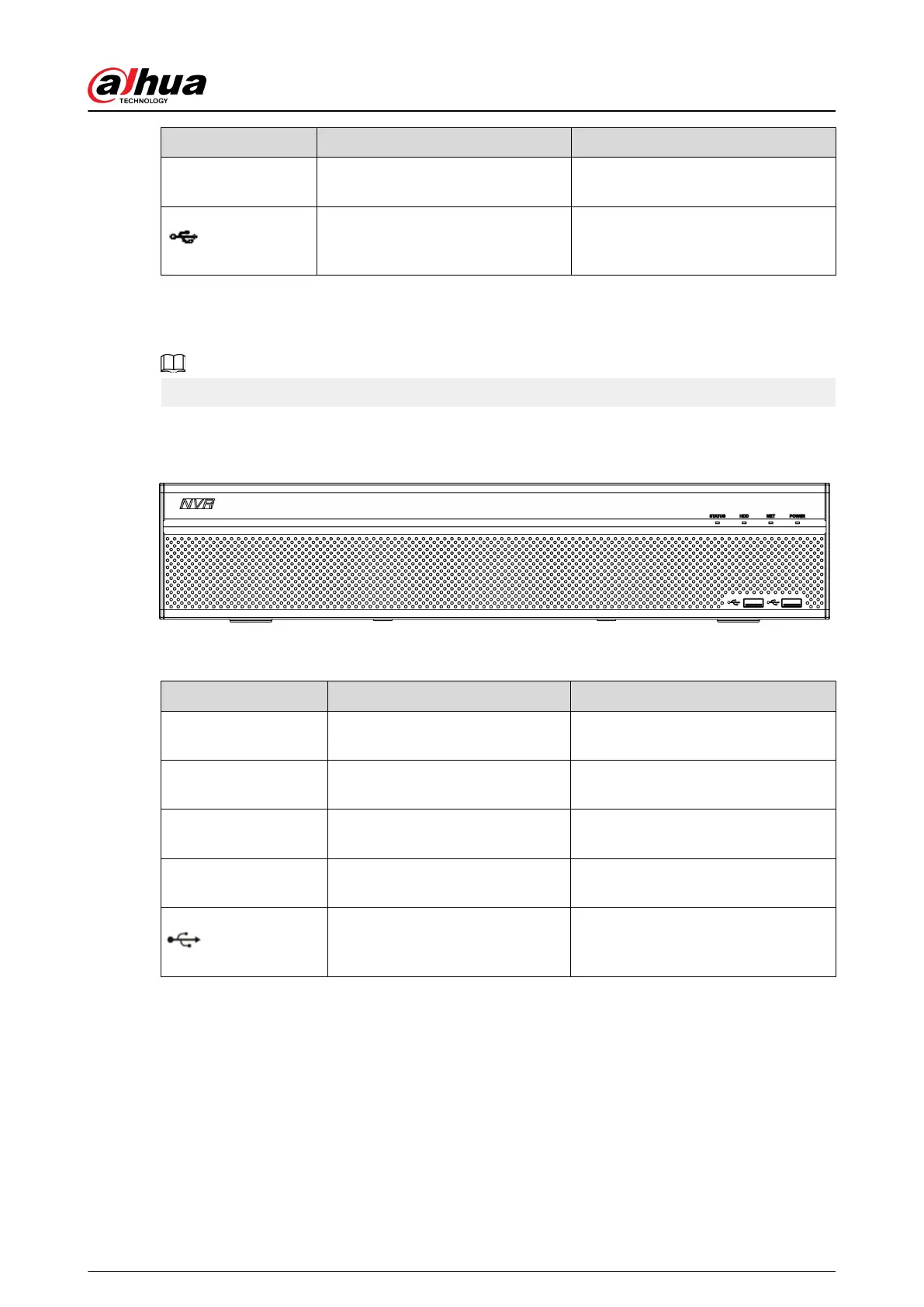

The NVR608-32-4KS2 front panel is shown as below.
Figure 2-23 Front panel
Table 2-11 Icons description
Icon
Name Function
STATUS Status indicator light
The blue light is on when the device
is working properly.
HDD HDD status indicator light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
POWER Power status indicator light
The blue light is on when the power
connection is normal.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner and
more.
2.1.13 NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-XI/
NVR608RH-XI Series
The NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-32-XI/NVR608H-64-XI/NVR608H-128-XI/
NVR608RH-32-XI/NVR608RH-64-XI/NVR608RH-128-XI front panel is shown as below.
