Name Function
PoE PORTS PoE port
Built-in Switch. Support PoE.
For PoE series product, you can use this port to provide
power to the network camera.
2.2.9 NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/
NVR48-16P-4KS2/L/NVR48-4KS2/I/NVR48-16P-4KS2/I Series
The NVR48-4KS2/NVR48-4KS2/L/NVR48-4KS2/I series rear panel is shown as below.

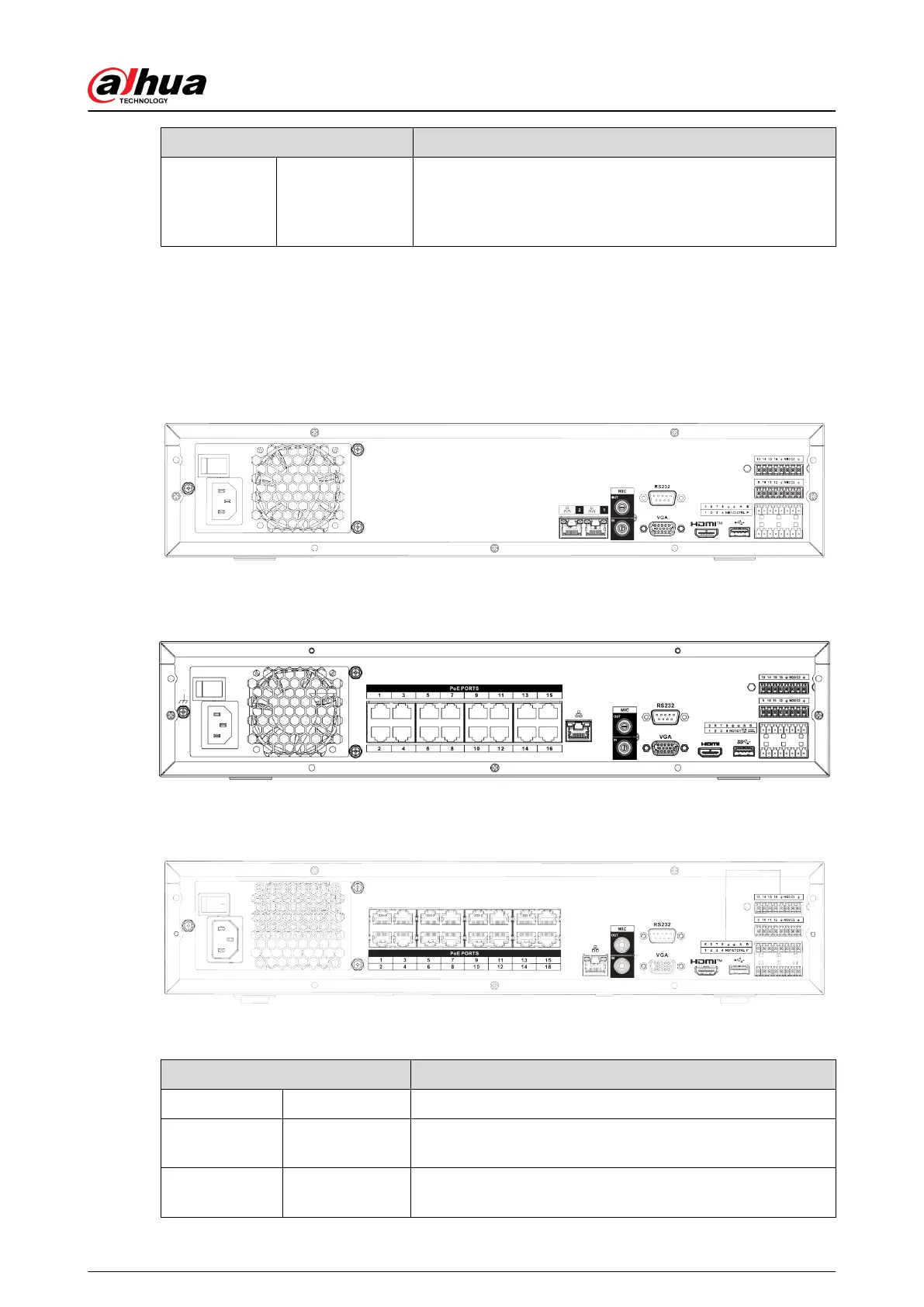

Figure 2-62 Rear panel
The NVR48-16P-4KS2/NVR48-16P-4KS2/L/NVR48-16P-4KS2/I series rear panel is shown as below.
Figure 2-63 Rear panel
The NVR48-16P-EI series rear panel is shown as below.
Figure 2-64 Rear panel
Table 2-24 Ports
Name
Function
Power switch — Power on-o button.
Power input
port
— 90~264-12 VAC 12.5 A/-53 V 2.83 A.
MIC IN Audio input port
Bidirectional talk input port. It is to receive the analog audio
signal output from the devices such as microphone, pickup.
User's Manual
38
