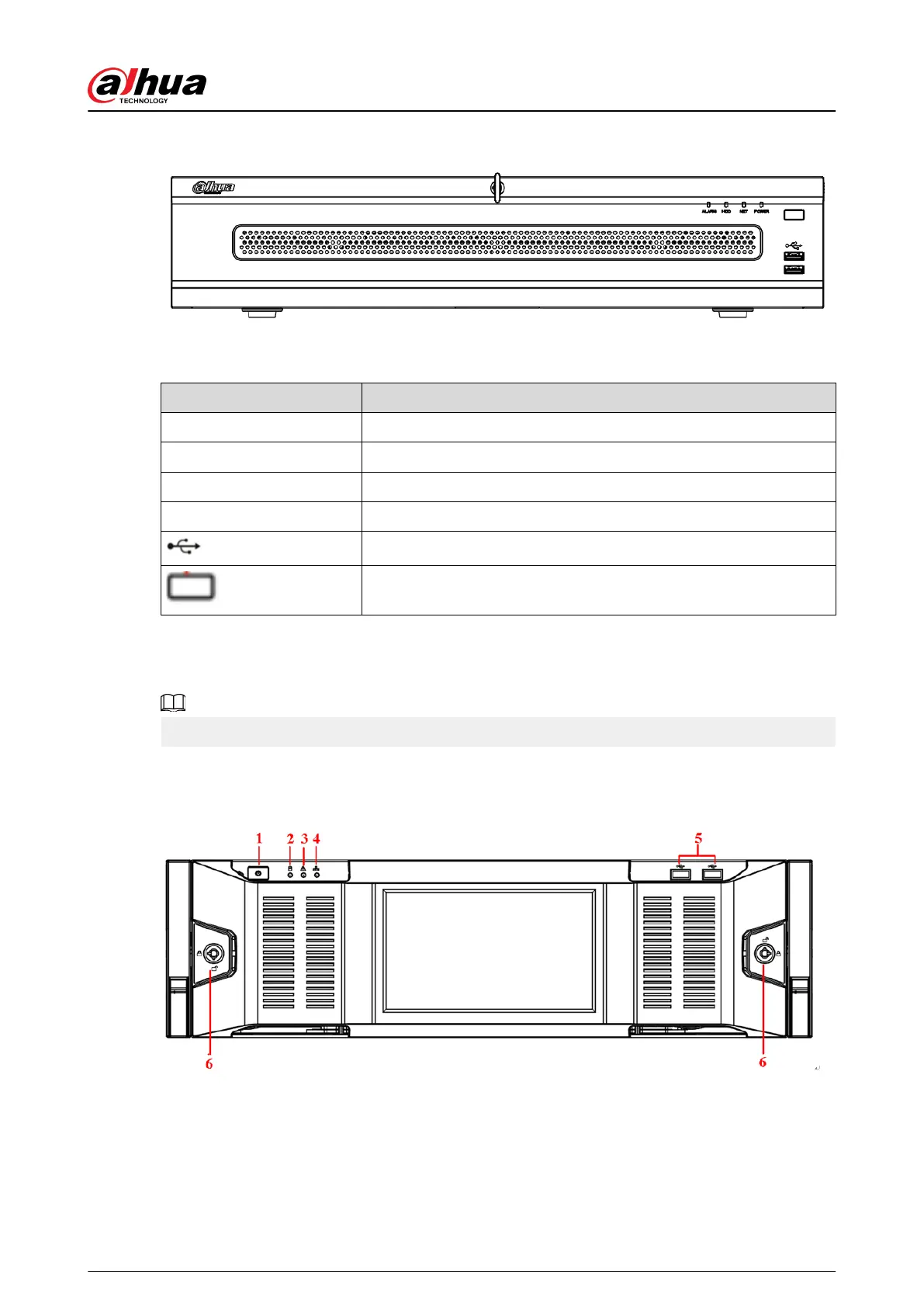

Figure 2-24 Front panel
Table 2-12 Front panel description
Icon Name
ALARM Alarm indicator light
HDD HDD status indicator light
NET Network status indicator light
POWER Power status indicator light
USB 2.0 port
Power on-o button
2.1.14 NVR616-4KS2/NVR616-XI/NVR50-EI Series
The following gures are for reference only.
For the product of LCD, the front panel of NVR616-4KS2/NVR616-XI series is shown as below.
Figure 2-25 Front panel
