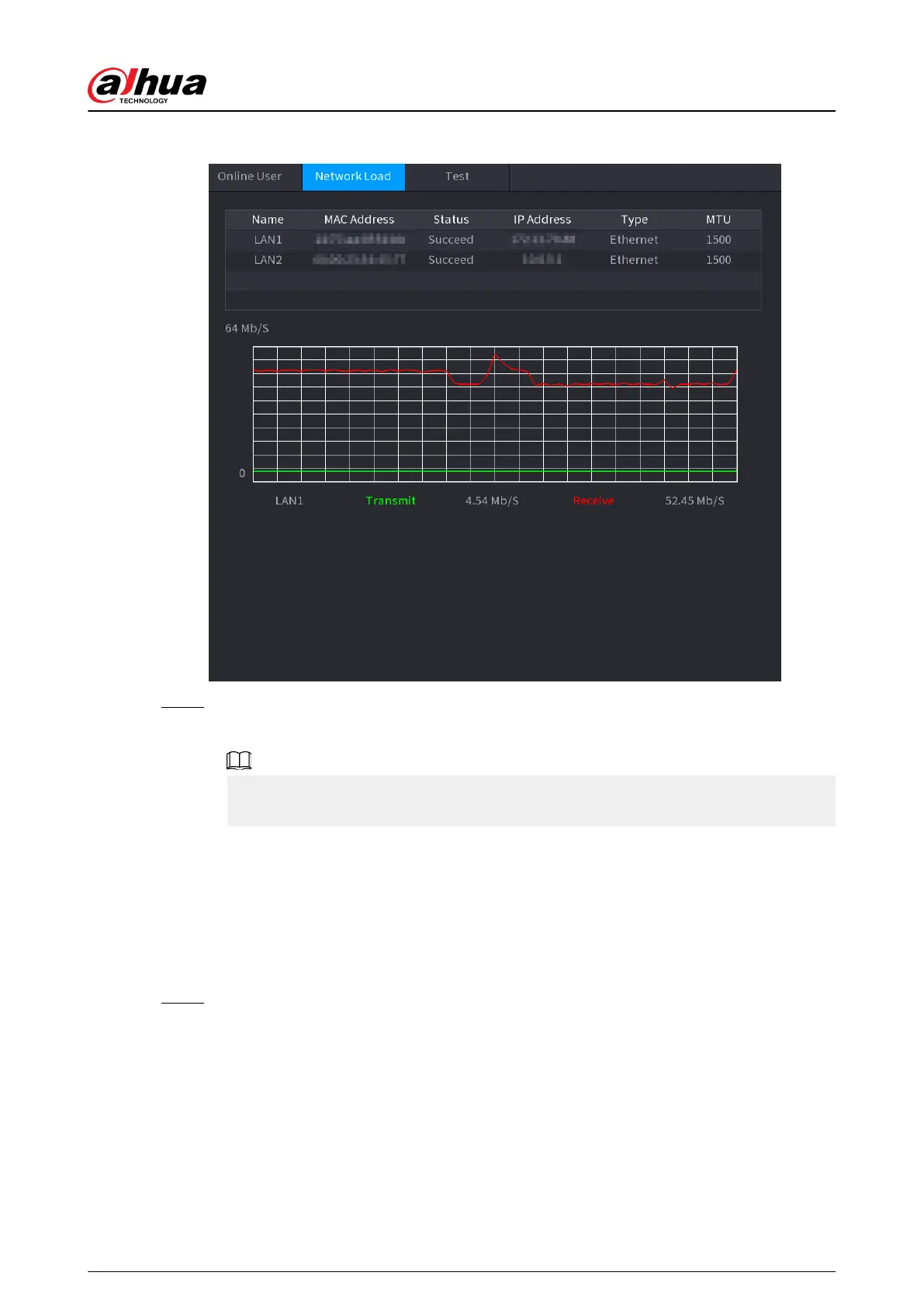

Figure 5-302 Network load
Step 2 Click the LAN name that you want to view, for example, LAN1.
The system displays the information of data sending speed and receiving speed.
●
System displays LAN1 load by default.
●
Only one LAN load can be displayed at one time.
5.19.3.3 Network Test
Background Information
You can test the network connection status between the Device and other devices.
Procedure
Step 1 Select Main Menu > MAINTAIN > Network > Test.
User's Manual
419
