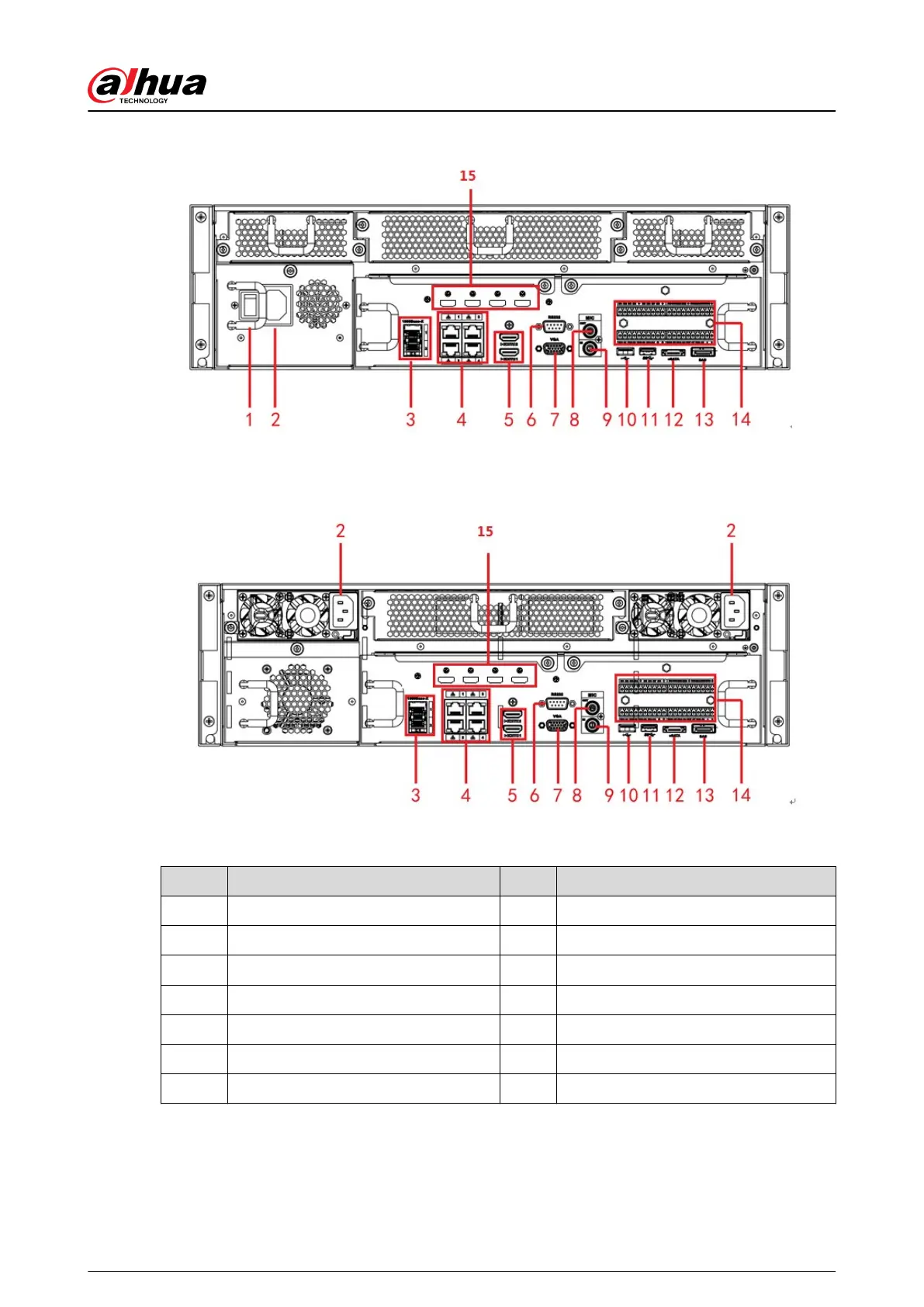

Figure 2-91 Rear panel
The redundant power series rear panel of NVR616-4KS2 series is shown as below.
Figure 2-92 Rear panel
Table 2-42 Ports
No.
Name No. Name
1 Power on-o button 2 Power socket
3 1000M ber port 4 Network port
5 HDMI port 6 RS-232 port
7 Video VGA output 8 Audio output
9 Audio input 10 USB 3.0 port
11 USB 3.0 port 12 eSATA port
13 SAS extension port 14 Alarm input/output/RS-485 port
User's Manual
66
