Local Basic Operations 202

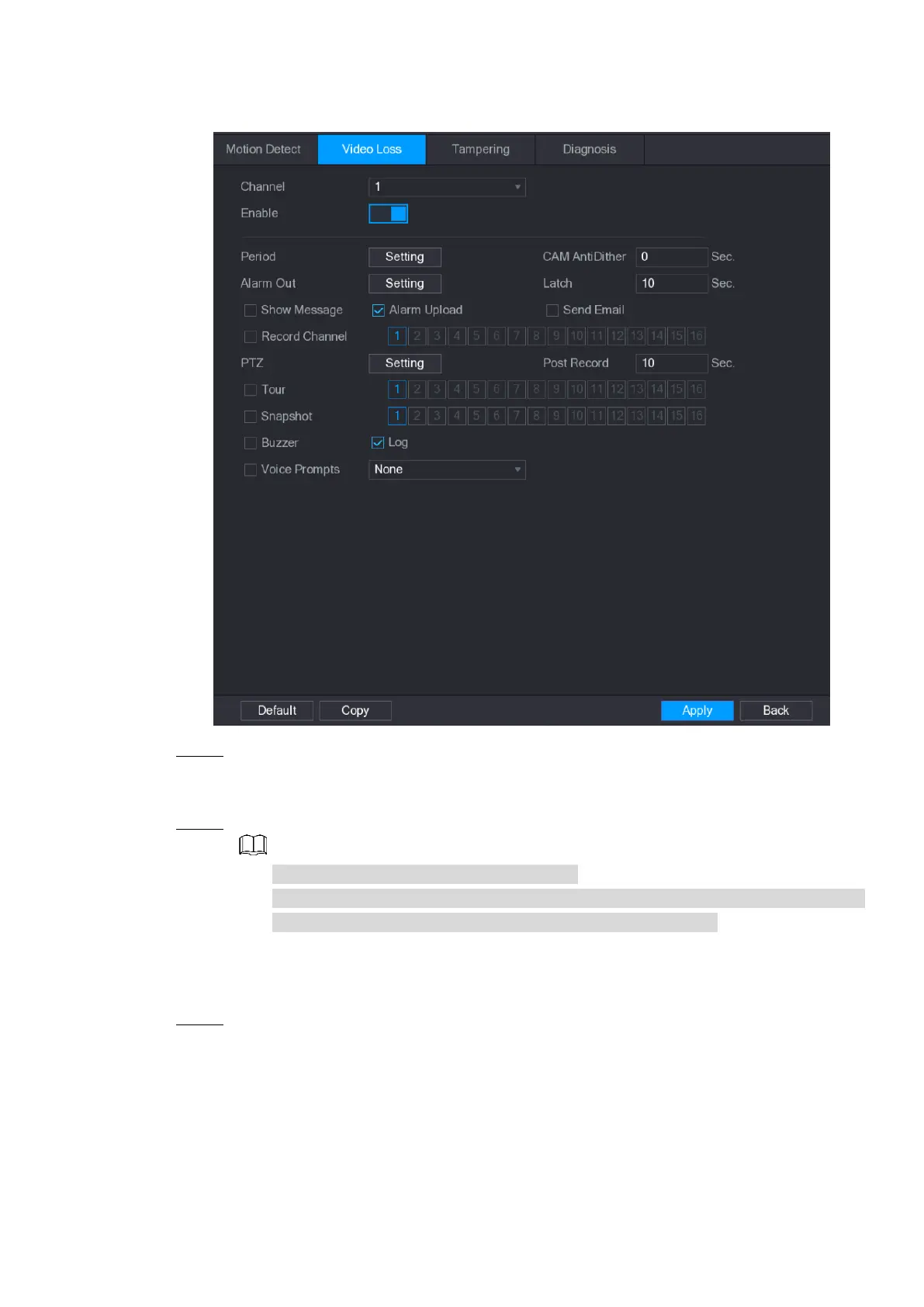

Figure 4-178
Step 2 To configure the settings for the video loss detection parameters, see "4.8.5.1 Motion
Detect."
The video loss function does not have region and sensitivity items.
Step 3 Click Apply to complete the settings.
Click Default to restore the default setting.
Click Copy, in the Copy dialog box, select the additional channel(s) that you want
to copy the motion detection settings to, and then click Apply.
4.8.5.4 Scene Change
When the detected scene has changed, system can generate an alarm.
Step 1 Select Main Menu>ALARM >VIDEO DETECTION >SCENE CHANGE,
The Scene Change interface is displayed. See Figure 4-179.
