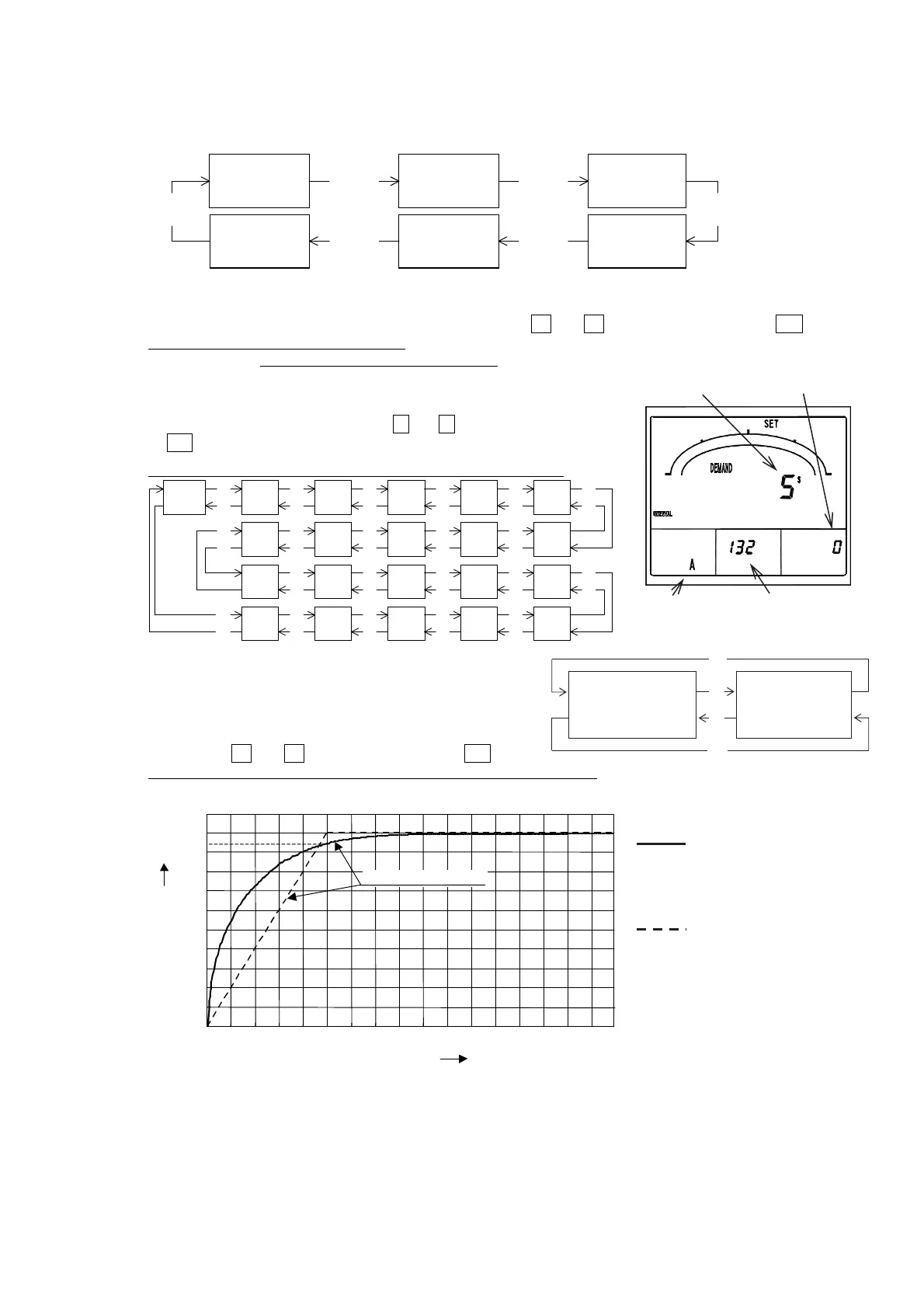

(3) 131H to 136 Demand detection setting 【Except voltage input】
The following operation method is setting.
Demand current, action of demand, high-alarm value, time-interval, power-factor, demand active power.
131H
Demand current
upper limit
RESET/
SHIFT
136
Power-factor
operation method
RESET/
SHIFT
RESET/
SHIFT
132
Demand current
time interval
RESET/
SHIFT
135
Demand power
operation method
RESET/
SHIFT
134
Demand power
time interval
133H
Demand power
upper limit
RESET/
SHIFT
◆ 131H Demand current upper limit. 133H Demand active power upper limit.
Set the high-alarm value of demand current(DA) and demand active power(DW).
The setting range is 5 to 100％ (1％ step). Selection by
＋
and
－
, set value is updated by
SET
.
Default setting：80％ (Demand current),
OFF [Non use] (Demand active power)
◆ 132 Demand current time interval. 134 Demand active power time interval.
Set the time interval (95％ time interval) of demand current(DA) and
demand active power(DW). Selection by
＋
and
－
, set value is updated
by
SET
.
Default setting：0 second (demand current, demand active power)
0sec
(
Nothing
)
＋
－
5sec
＋
－
10sec
＋
－
20sec
＋
－
30sec
＋
－
40sec
＋
－
50sec1min
－
＋
＋
－
2min
－
＋
3min
－
＋
4min
－
＋
5min
－
＋
6min
－
＋
7min
＋
－
8min
＋
－
9min
＋
－
10min
－
＋
15min
－
＋
20min
＋
－
25min
－
＋
30min
－
＋
◆ 135 Demand active power operation method
The operating system of demand (DW) can be selected from
d (operating system according with bimetallic type：
demand) and A (Averaging arithmetic in demand time
delay：average).
Selection by
＋
and
－
, set value is updated by
SET
.
Default setting：d (Operating system according with bimetallic type)
● Demand time delay characteristic (Demand current, Demand active power)
0
20
40
60
80
100
0 102030
Time（min）
Demand
value
（％）
Time delay 10 minutes
95
Arithmetic method
Demand current measurement ：Arithmetic method according with bimetallic type.
Demand active power measurement：Arithmetic method according with bimetallic type (Default value).
Or the averaging arithmetic in a demand time interval.
One is selected by setting.
100％ indication time is about 3 times the time delay at the case of the arithmetic method according with
bimetallic type.(In case of 10 minutes/95％ of time-interval, time to reach to 100％ is about 30 minutes.)
Demand measurement is measured to the 2 times of the rated current, and the 2 time of a rated active power.
d：Operating system
according with
bimetallic type
A：Averaging
arithmetic in
demand time
delay
＋
－
＋
－
Demand current time interval
New setting
Setting factor
Current setting
Setting No.
Arithmetic method according
with bimetallic type.
(Indication time to 95％
of a final constant value)
Averaging arithmetic in
demand time delay.
(Averaging time in demand
time delay.)
