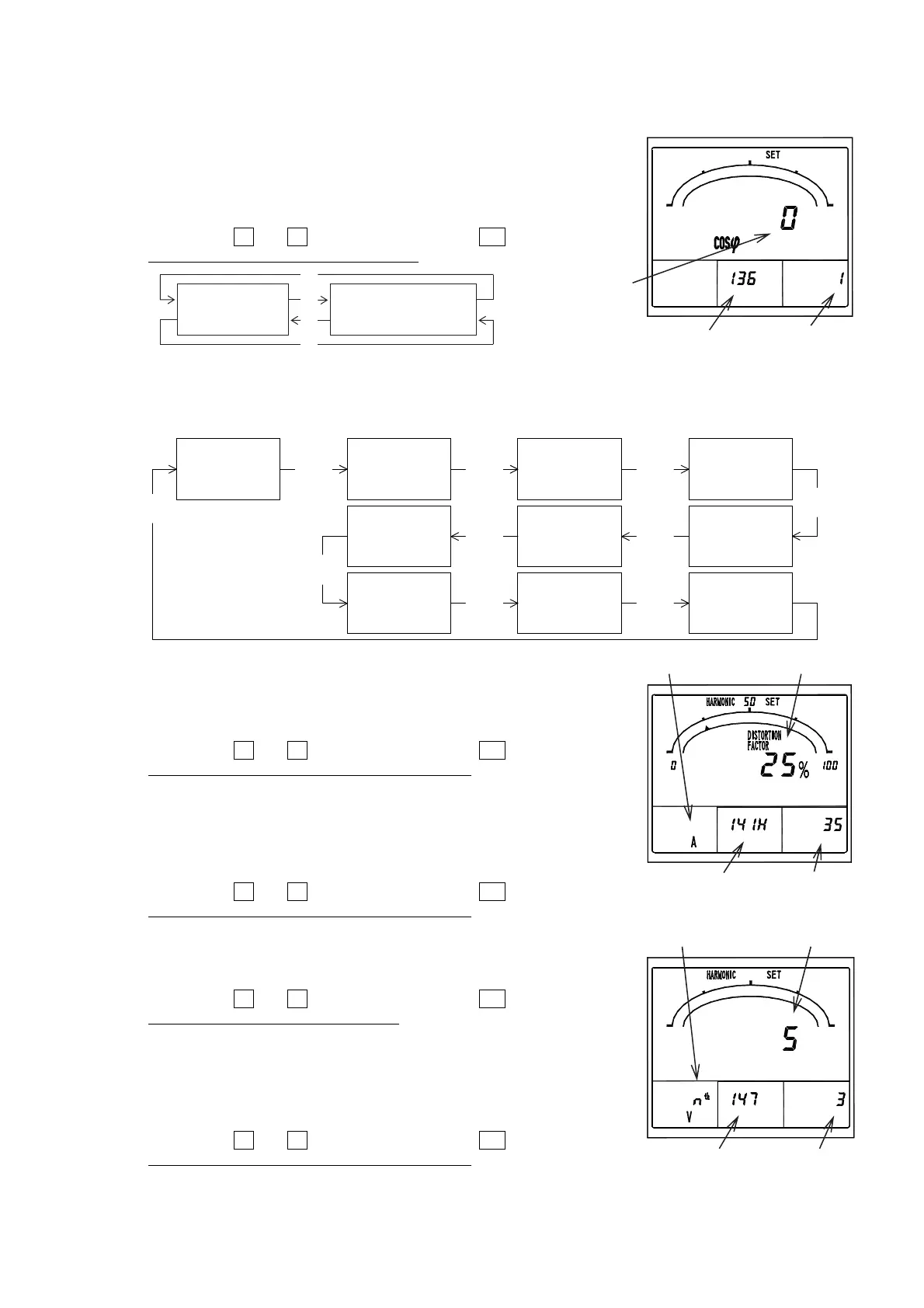

◆ 136 Power-factor operation method
The operation method of power-factor measurement can be selected from 0
(instant measurement) and 1 (averaging operator in a demand time
interval).
In case it is set as "1 (averaging operator in a demand time interval)",
power-factor measurement is calculated from the operation method of a
power demand time interval and a demand active power meter.
Selection by
＋ and － , set value is updated by SET .
Default setting：0 (Instant measurement )
(4) 141H to 14A Harmonic detection setting 【All models】
Set the high-alarm value of each harmonic (current, voltage) measurement factor, factor, 5th conversion detection
characteristics, and average time interval is performed.
141H
Current
distortion-factor
upper limit
RESET/
SHIFT
RESET/
SHIFT
142H
Current 5th
conversion content
upper limit
RESET/
SHIFT
RESET/
SHIFT
RESET/
SHIFT
143
Current nth
content factor
RESET/
SHIFT
144H
Current nth
content upper
limit
145H
Voltage
distortion-factor
upper limit
RESET/
SHIFT
146H
Voltage 5th
conversion content
upper limit
147
Voltage nth
content factor
148H
Voltage nth
content upper
limit
RESET/
SHIFT
149
5th conversion
detection
characteristics
RESET/
SHIFT
14A
Average time
interval
RESET/
SHIFT
◆ 141H Current distortion-factor upper limit,
145H Voltage distortion-factor upper limit
Set the high-alarm value of distortion factor (current, voltage).
Setting range. Current：5 to 100％ (1％ step)
Voltage：1.0 to 20.0％ (0.1％ step)
Selection by
＋ and － , set value is updated by SET .
Default setting：OFF [Non-use] (Current, Voltage)
◆ 142H Current 5th conversion content upper limit,
146H Voltage 5th conversion content upper limit.
Set the high-alarm value of 5th conversion content (current, voltage).
Setting range. Current：5 to 100％ (1％ step)
Voltage：1.0 to 20.0％ (0.1％ step)
Selection by
＋ and － , set value is updated by SET .
Default setting：OFF [Non-use] (Current, Voltage)
◆ 143 Current nth content factor, 147 Voltage nth content factor.
Set the factor (order) of nth content (current, voltage).
An order can be selected from n= 3, 4, 5, 7, 9, 11, 13, 15.
Selection by
＋ and － , set value is updated by SET .
Default setting：5th(Current, Voltage)
◆ 144H Current nth content upper limit,
148H Voltage nth content upper limit.
Set the high-alarm value of nth content (current, voltage).
Setting range. Current：5 to 100％ (1％ step)
Voltage：1.0 to 20.0％ (0.1％ step)
Selection by
＋ and － , set value is updated by SET .
Default setting：OFF [Non-use] (Current, Voltage)
Current distortion-factor upper limit
Setting factor
Current setting
Setting No.
New setting
Voltage nth content factor
Setting factor
Current setting Setting No.
New setting
0：Instant
measurement
1：
Averaging operator
in a demand time
interval
＋
－
－
＋
New setting
Current setting
Setting No.
Power-factor operation method
