Daiichi Electronics SQLC-110L - Page 61

SQLC-214-097
60

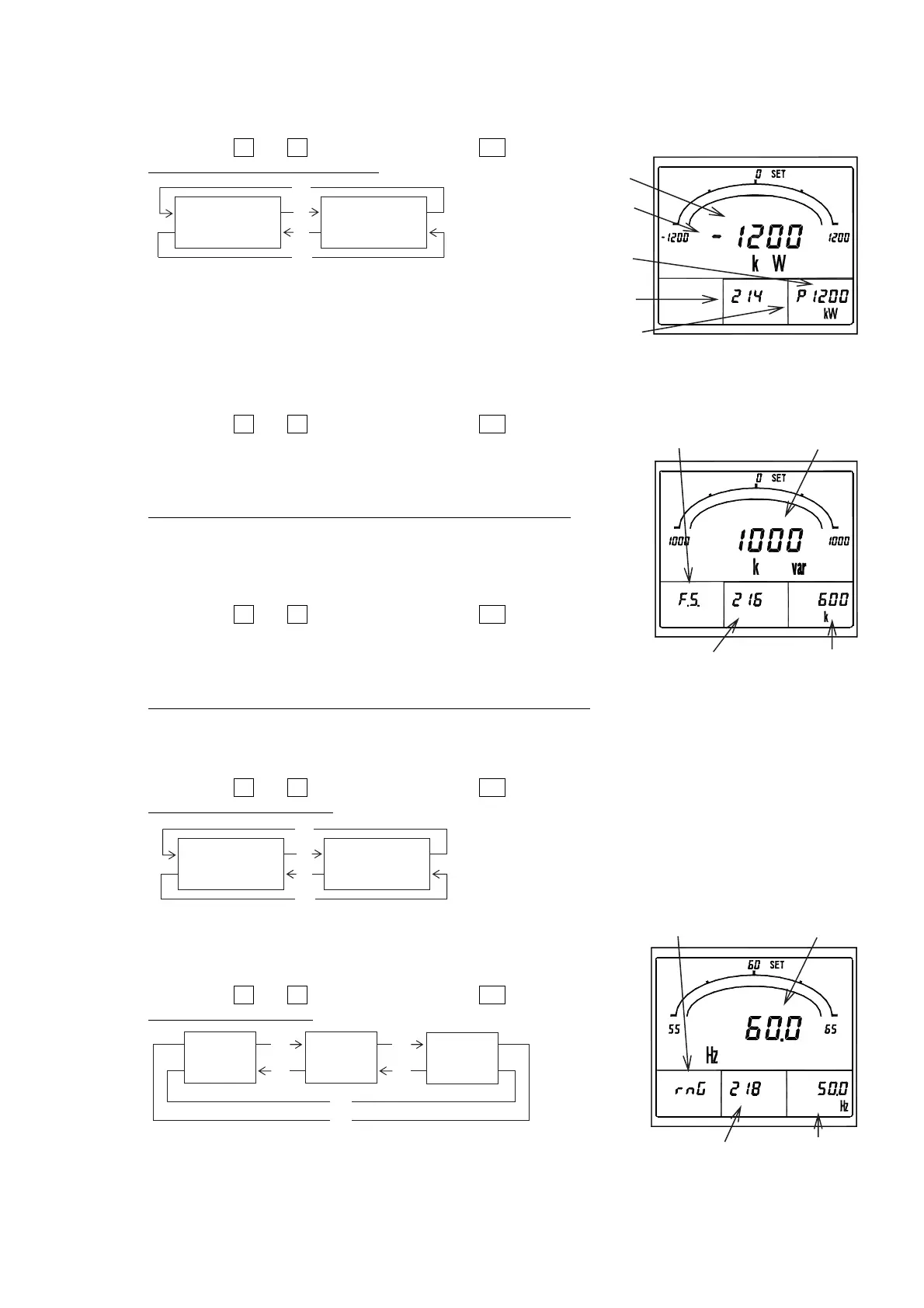

◆ 214 Active power polarity
A swing display of active power meter can be selected from P (one side swing) and － (both swings).
Selection by
＋ and － , set value is updated by SET .
Default setting：P (One-side swing)
◆ 215 Active power range
Set the full scale of active power meter. The setting range is 40 to 115％ of range of a VT ratio × CT ratio.
And it can select from "213 current display intrinsic sensitivity" tables.
Selection by
＋ and － , set value is updated by SET .
<Caution> VT ratio：In case of 220V direct input. Calculates by VT
ratio＝2.
CT ratio：In case of 1A input. Calculates by CT ratio÷5.
Default setting：3φ3W：1200kW ，1φ3W：100.0kW ，1φ2W：150.0kW
◆ 216 Reactive power range
Set the full scale of reactive power meter.
The setting range is 30 to 115％ of range of a VT ratio × CT ratio.
And it can select from "213 current display intrinsic sensitivity" tables.
Selection by
＋ and － , set value is updated by SET .
<Caution> VT ratio：In case of 220V direct input. Calculates by VT
ratio＝2.
CT ratio：In case of 1A input. Calculates by CT ratio÷5.
Default setting：3φ3W：600kvar ，1φ3W：50.0kvar ，1φ2W：75.0kvar
◆ 217 Power-factor range
A power-factor measurement range can be selected from 0.5‐1‐0.5/0‐1‐0.
Change of this setting also sets the analog output range of a power-factor automatically simultaneously.
Selection by
＋ and － , set value is updated by SET .
Default setting：0.5‐1‐0.5
◆ 218 Frequency range
A frequency measurement range can be selected from 45‐55Hz/55‐65Hz/
45‐65Hz. Change of this setting also sets the analog output range of
a frequency automatically simultaneously.
Selection by
＋ and － , set value is updated by SET .
Default setting：45‐65Hz
Power polarity
Setting No.
Current setting
One-side swing display
New setting
Both swing display
P：
One-side swing
－：Both swin
g
s
＋
－
－
＋
50：
45‐55Hz
＋
－
60：
55‐65Hz
＋
－
55：
45‐65Hz
＋
－
Reactive power range
Setting factor
Setting No.
New setting
Current setting
Frequency range
Setting factor
Setting No.
New setting
Current setting
0.5‐1‐0.5
0‐1‐0
＋
－
－
＋
