Controls
Note: A random start delay time between 300 and 360
seconds is generated at power up.

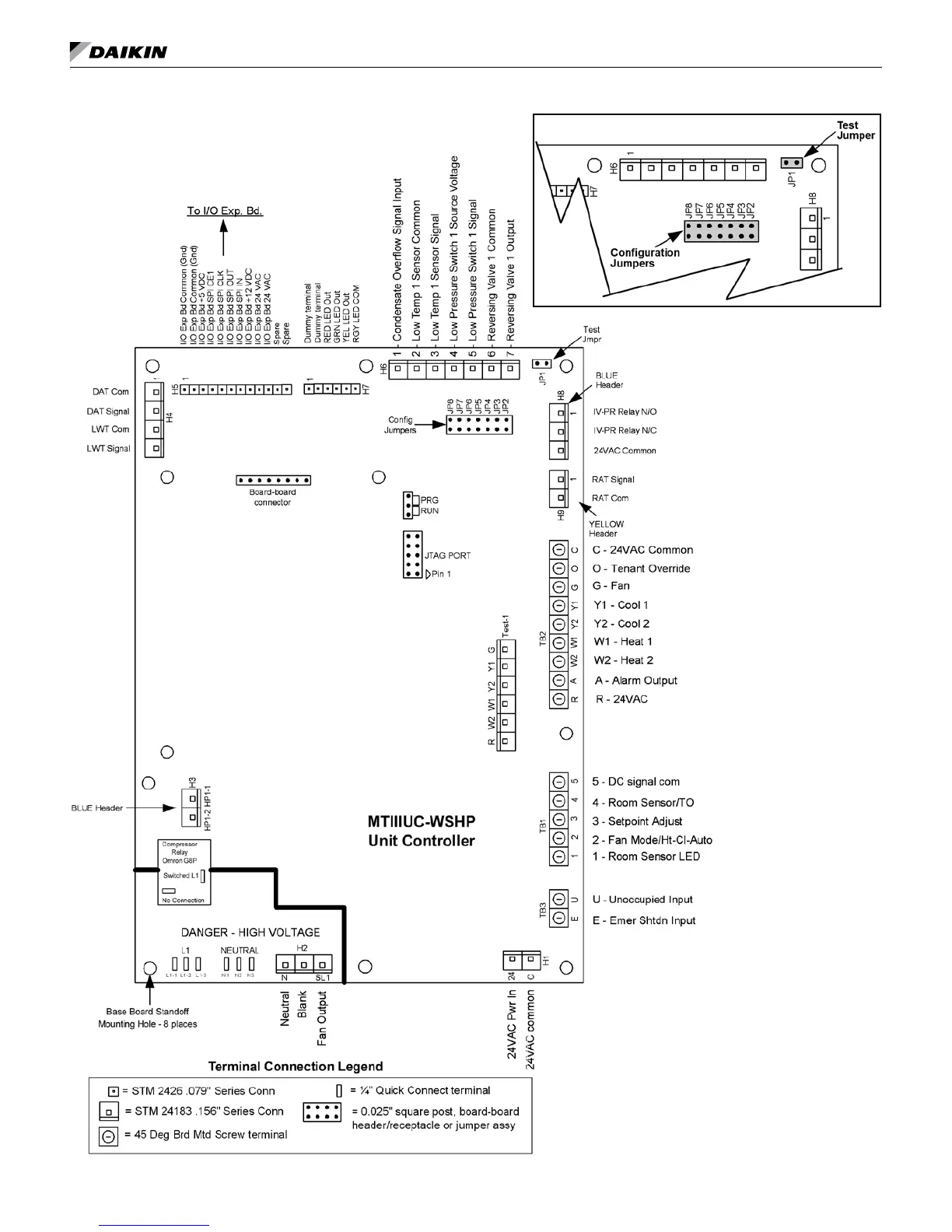

Figure 11: MicroTech III Unit Controller Terminal Locations
Figure 12: Location of Configuration Jumpers on the
MicroTech III Unit Controller
www.DaikinApplied.com 15 EnnityVerticalWaterSourceHeatPumps• IM 930-6
