Daikin FL15EXV1 - Outlines & Dimensions; Model

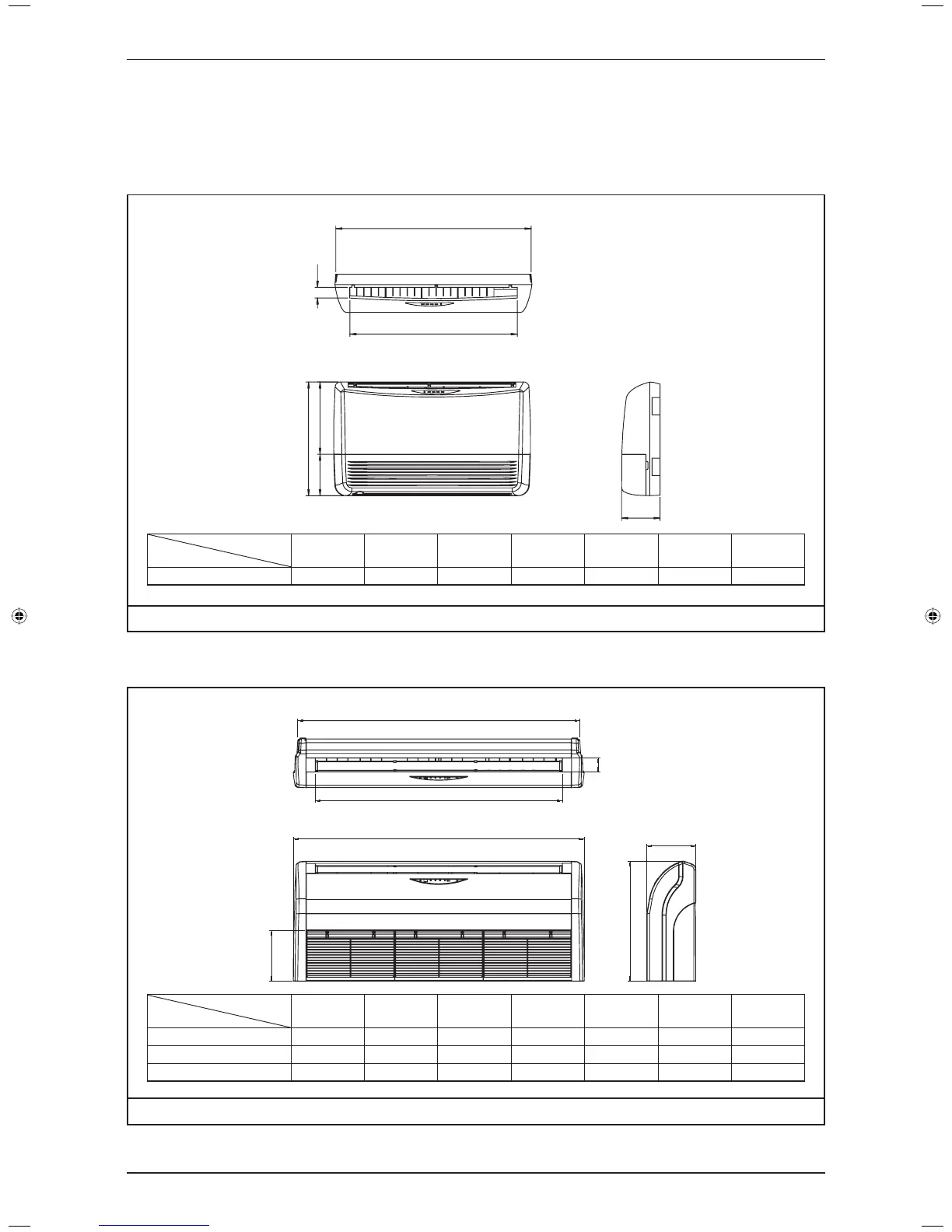

Outlines & Dimensions
47
Outlines & Dimensions
Indoor Unit
Model: FL(Y)15/20/25/28EXV1
B
C
DE
F
G
A
Dimension
Model
ABCDEFG
FL(Y)15/20/25/28EXV1 1080 928 65 400 230 630 218
Note: Dimension in mm
Model: FL(Y)35/40/50EXV1
A
B
E
C
D
G
F
Dimension
Model
ABCDEFG
FL(Y)35EXV1 1272 1088 74 1320 268 635 259
FL(Y)40EXV1 1490 1308 74 1538 268 635 259
FL(Y)50EXV1 1738 1556 74 1786 268 365 259
Note: Dimension in mm
