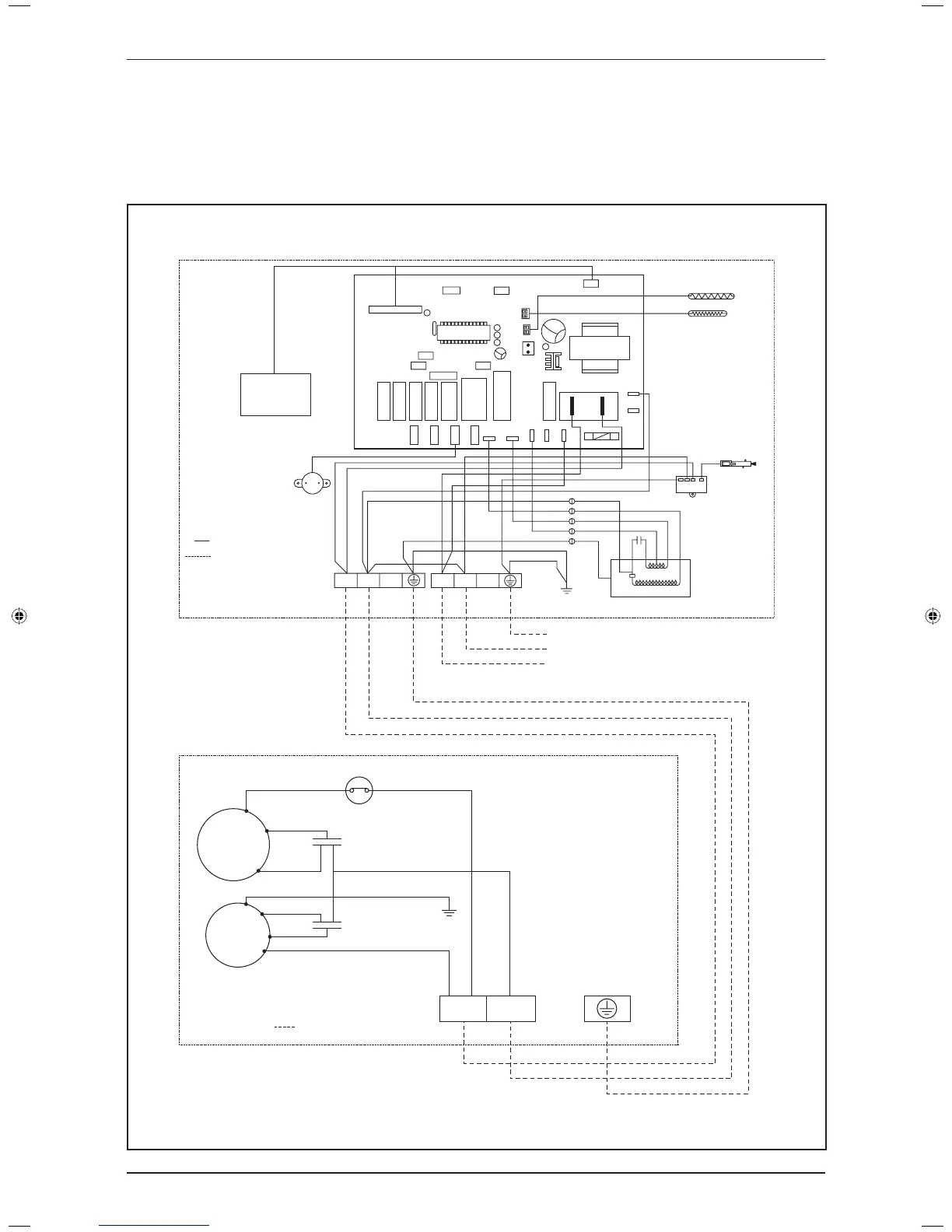

Wiring Diagrams
Wiring Diagrams
Cooling Only
Indoor Unit
Model: FL15EXV1
Outdoor Unit
Model: R15CXV1
INDOOR COIL SENSOR
RETURN AIR SENSOR
IONIZER
FAN MOTOR
WIRED OR
WIRELESS
REMOTE
CONTROLLER
AS
KEY:
CN5
CN2
CN3
HIGH MED
L
COMP.
N1N2
RED
RED RED
G/Y
WHITE
PURPLE
BLACK
BLACK
RED RED
ION
AS
LOW
WTP
LIVE
ROOM
ID
OD
TRANSFORMER
- FIELD SUPPLY WIRING
1 PHASE
220/240VAC 50Hz OR
208/230VAC 60Hz
AS: AIR SWING MOTOR
PART NO.: 08 02 4 120162
BLACK
COMP. N NL
BLACK
YELLOW
BROWN
ORANGE
G/Y
BLACK
YELLOW
BROWN
ORANGE
G/Y
G/Y
G/Y
FH
FM
FL
A.C
M.C
I.C
WHITE
WHITE
OLP
RED
RED
BLACK
BLUE
BLUE
CAPACITOR
CAPACITOR
BLUE
GREEN/YELLOW
C
S
R
CM
FM
COMP N
KEY˖
CM – COMPRESSOR MOTOR
FM – FAN MOTOR
– FIELD SUPPLY WIRING
