Application Information
Model: FL28EXV1 – R28CXV1

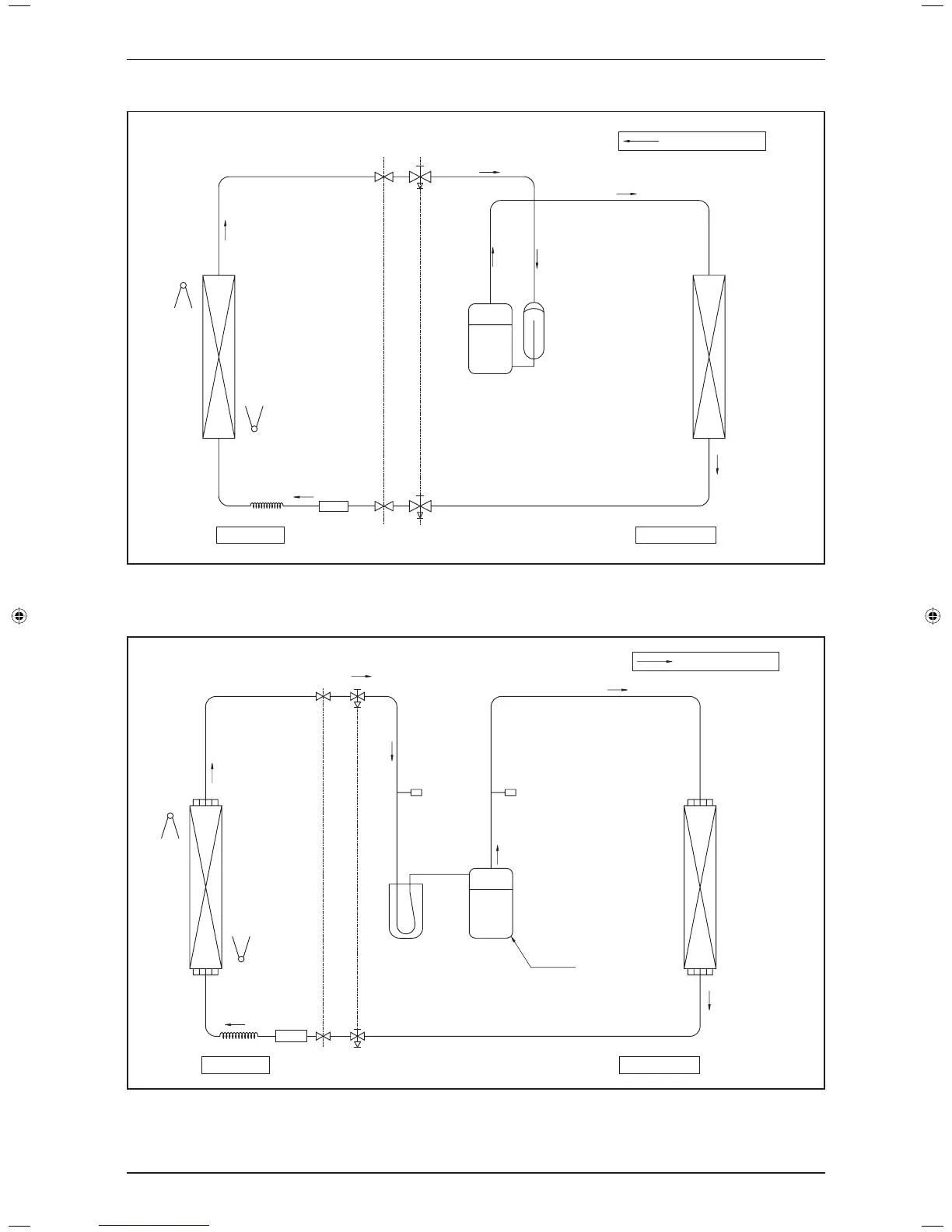

COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
DISCHARGE
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
3 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
Model: FL28EXV1 – R30DXV1 / FL35EXV1 – R35DXV1 / FL40EXV1 – R40DXV1 / FL40EXV1 – R40DXY1 /
FL50EXV1 – R50DXY1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
DISCHARGE
ACCUMULATOR
LOW
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
3 WAY
VALVE
3 WAY
VALVE
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
COMPRESSOR
