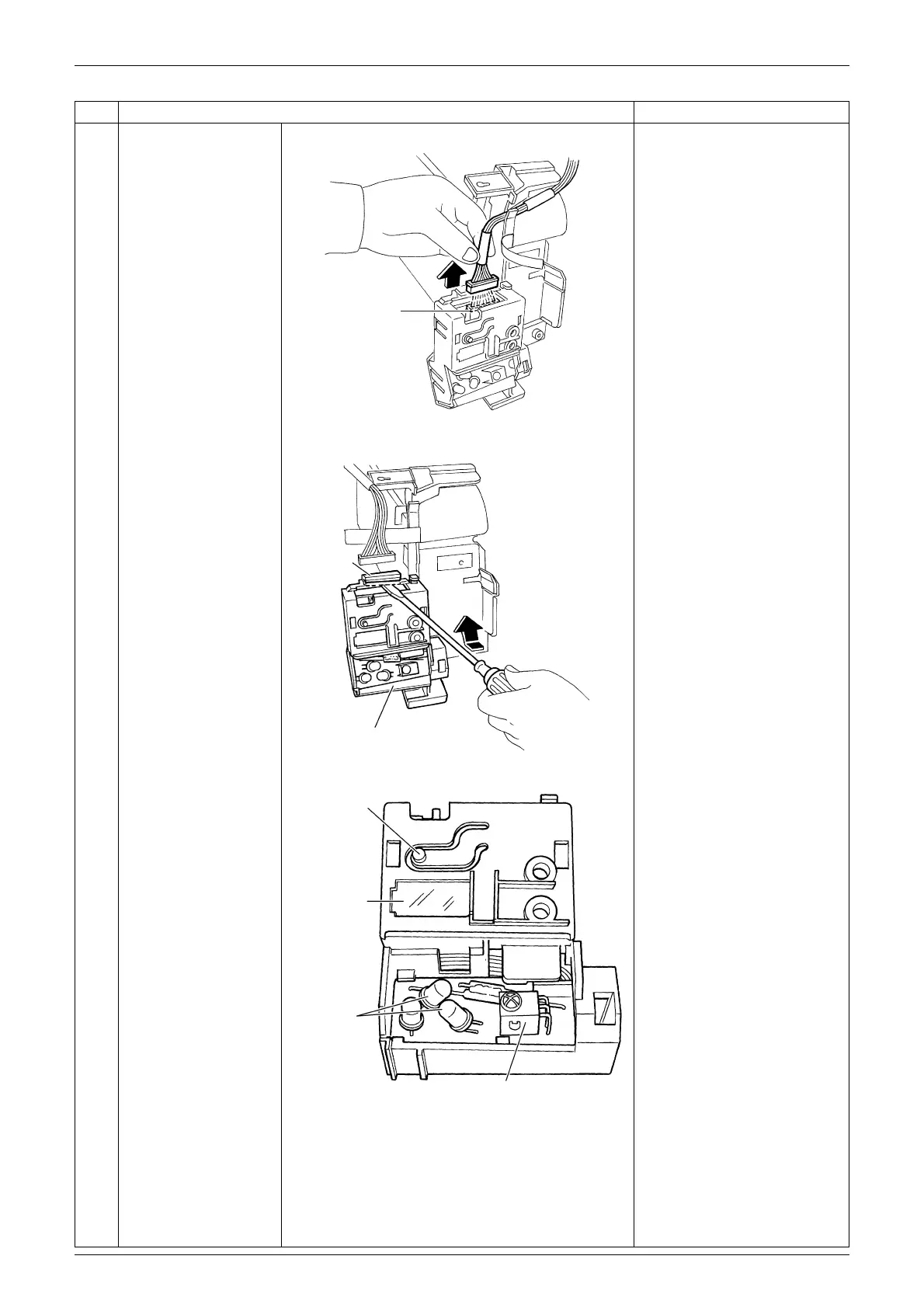

Removal of PCBs Si04-756
28 Removal Procedure
2
Disconnect the
connector [S56].
[S56]: control PCB
3
Unfasten the upper
hook with a flat
screwdriver.
4
Unfasten the lower
hook.
5
Remove the lamp
cover assembly.
Step Procedure Points
[S56]
(R13965)
Lower hook
(R5713)
Upper
hook
Receiver
Transmitter
Multi-colored
indicator lamp
ON/OFF
button
(R13966)
