SiUS091133 Check
Service Diagnosis 152
15/18 class
5.14 Capacitor Voltage Check

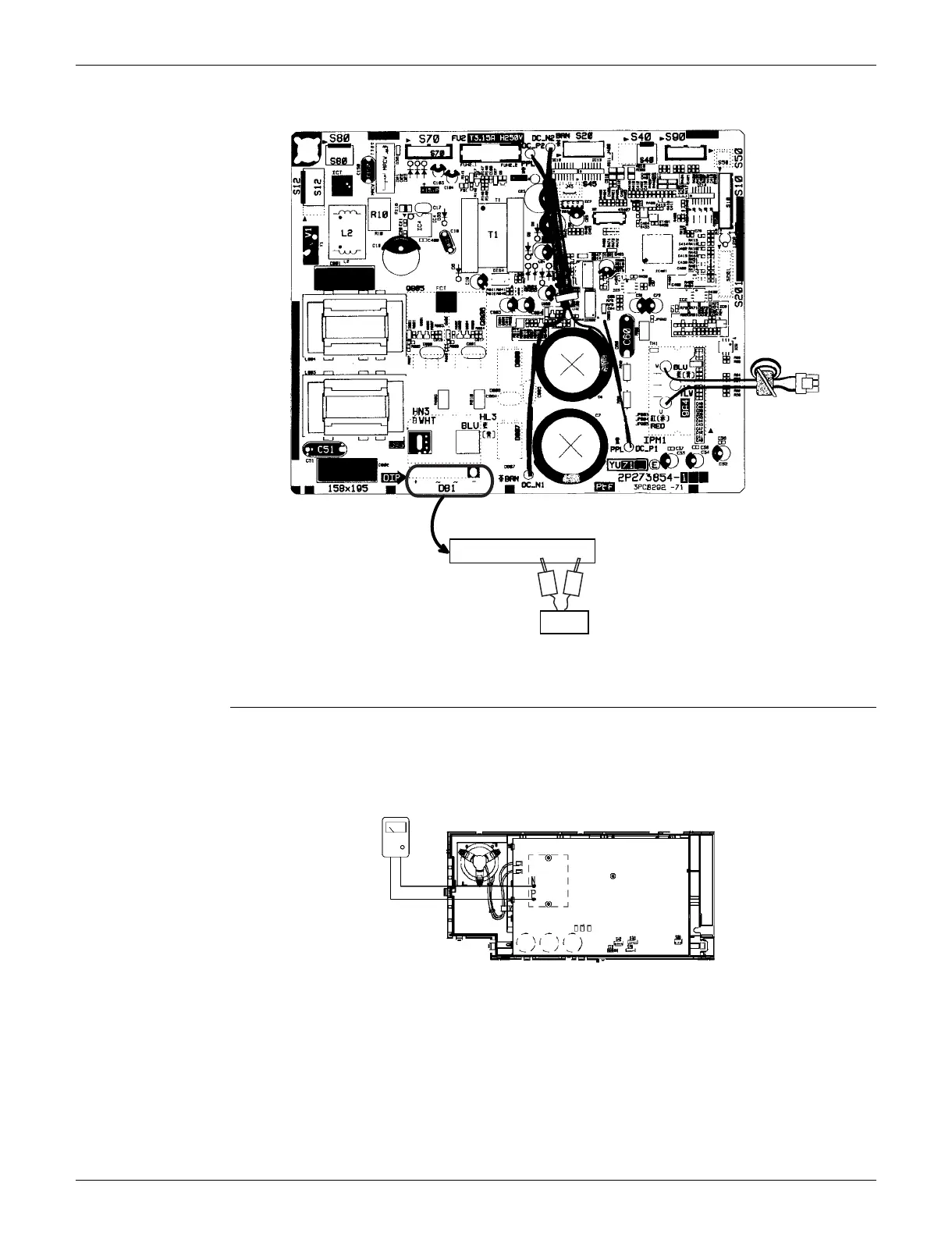

Check No.21 Before this check, be sure to check the main circuit for short circuit.
With the circuit breaker still on, measure the voltage according to the drawing of the model in
question. Be careful never to touch any live parts.
Tester
–~~+
1234
–
+
(R14700)
Multimeter
(DC voltage range)
(R13538)
