SiUS091133 Indoor Unit: FTXS30/36LVJU
Removal Procedure 250

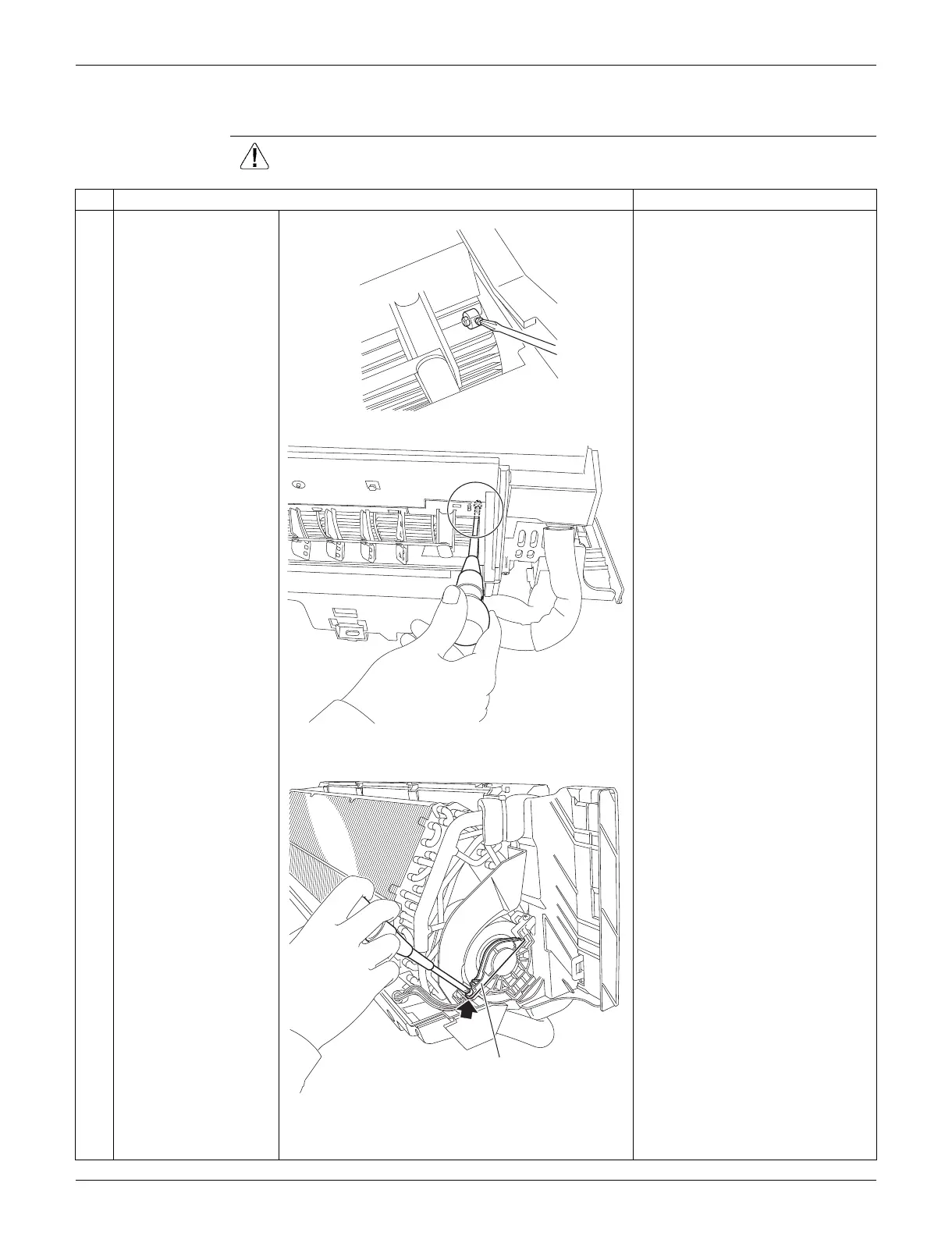

3.6 Removal of Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Loosen the screw of the
fan motor from the air
outlet.
2
Remove the screw of
the fan motor fixing
plate.
(R9559)
(R9560)
Fan motor fixing plate
