SiUS091133 Indoor Unit: FTXS15/18/24LVJU
Removal Procedure 196
2.4 Removal of PCBs
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

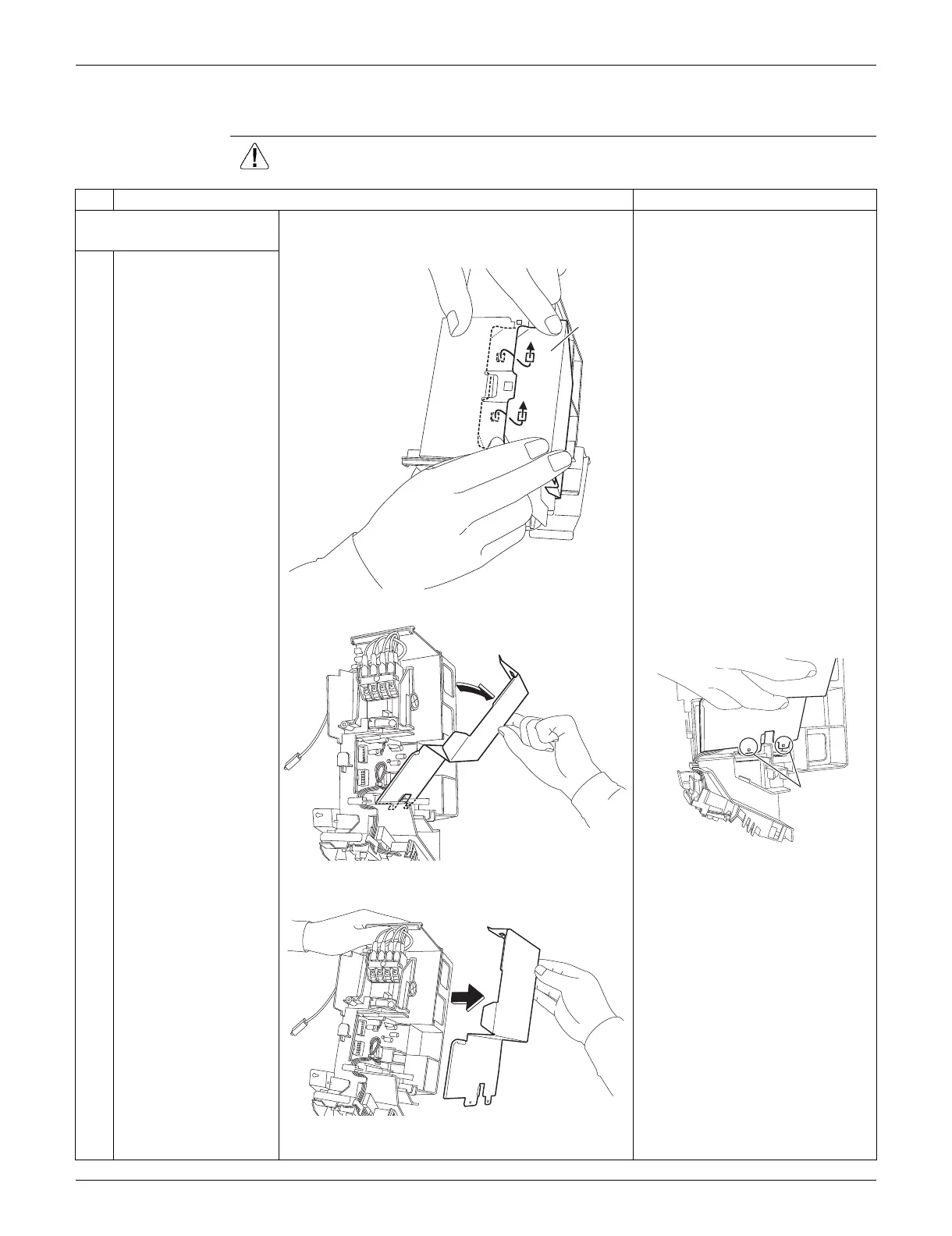

1. Remove the signal
receiver PCB.
1
Unfasten the hooks of
the shield plate.
Preparation
 Remove the electrical box
according to the “Removal of
Electrical Box.”
2
Open the shield plate.  The shield plate has 2 hooks at
the lower part also.
3
Remove the shield
plate.
(R9506)
Shield
plate
(R16283)
(R16498)
Hook
(R16284)
