SiUS091133 Indoor Unit: FTXS30/36LVJU
Removal Procedure 260

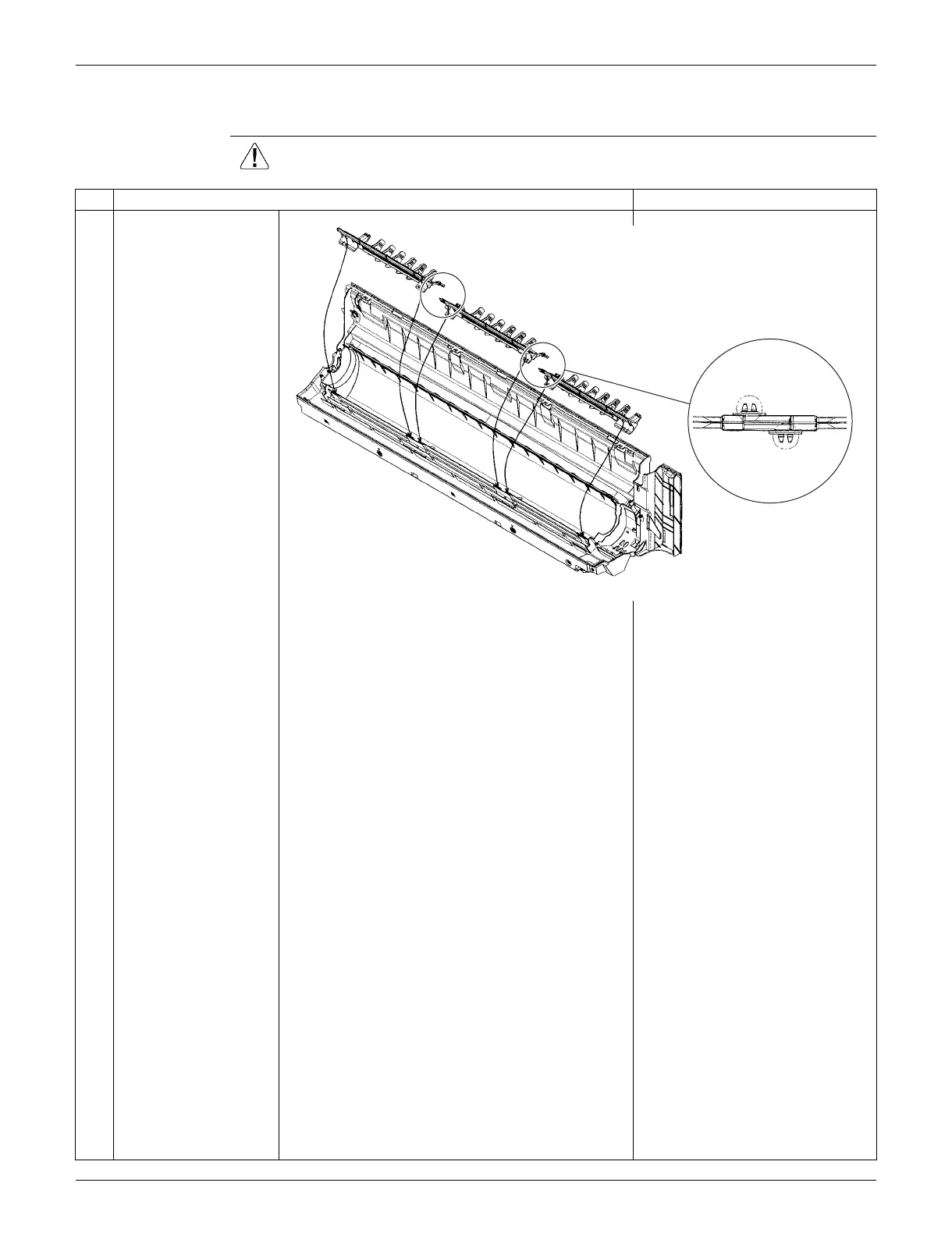

3.9 Removal of Vertical Blade ASSYs
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Unfasten the 2 hooks of
each vertical blade
ASSY.
Remove the 3 vertical
blade ASSYs.
Each vertical blade ASSY is
united with a drain pan ASSY.
(R16979)
When reassembling,
connect the 3 vertical blade
ASSYs. Fasten the hooks at
the connecting points.
