Daikin FTXS-L Series User Manual

SiUS091133 Indoor Unit: FTXS09/12LVJU
Removal Procedure 160
1.3 Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

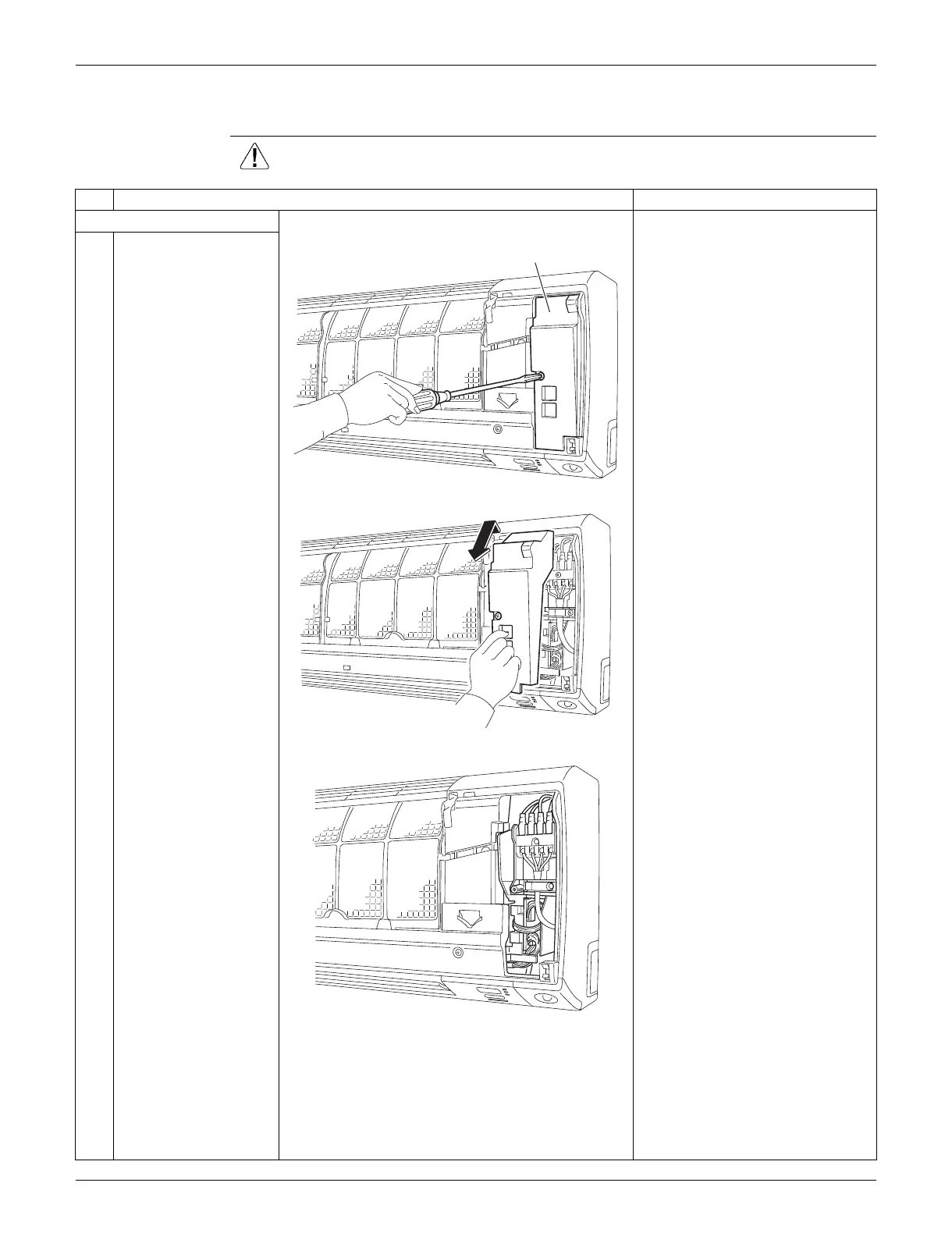

1. Remove the service cover.
1
Remove the screw of
the service cover.
Preparation
 Remove the front panel
according to the “Removal of
Front Panel”.
2
Pull out the service
cover diagonally down
in the direction of the
arrow.
3
The figure shows the
inside.
(R7911)
Service cover
(R13488)
(R13489)
