Installation Manual 3P291714-4
DCM601A72 iTM plus adaptor
English
4.1.2 Procedure for a navigation remote controller
The following describes how to assign a DIII-NET address when a navigation remote
controller is installed.
NOTE
You cannot perform the following procedure when the display backlight is off. In this
case, press any key to turn on the backlight before starting the procedure.

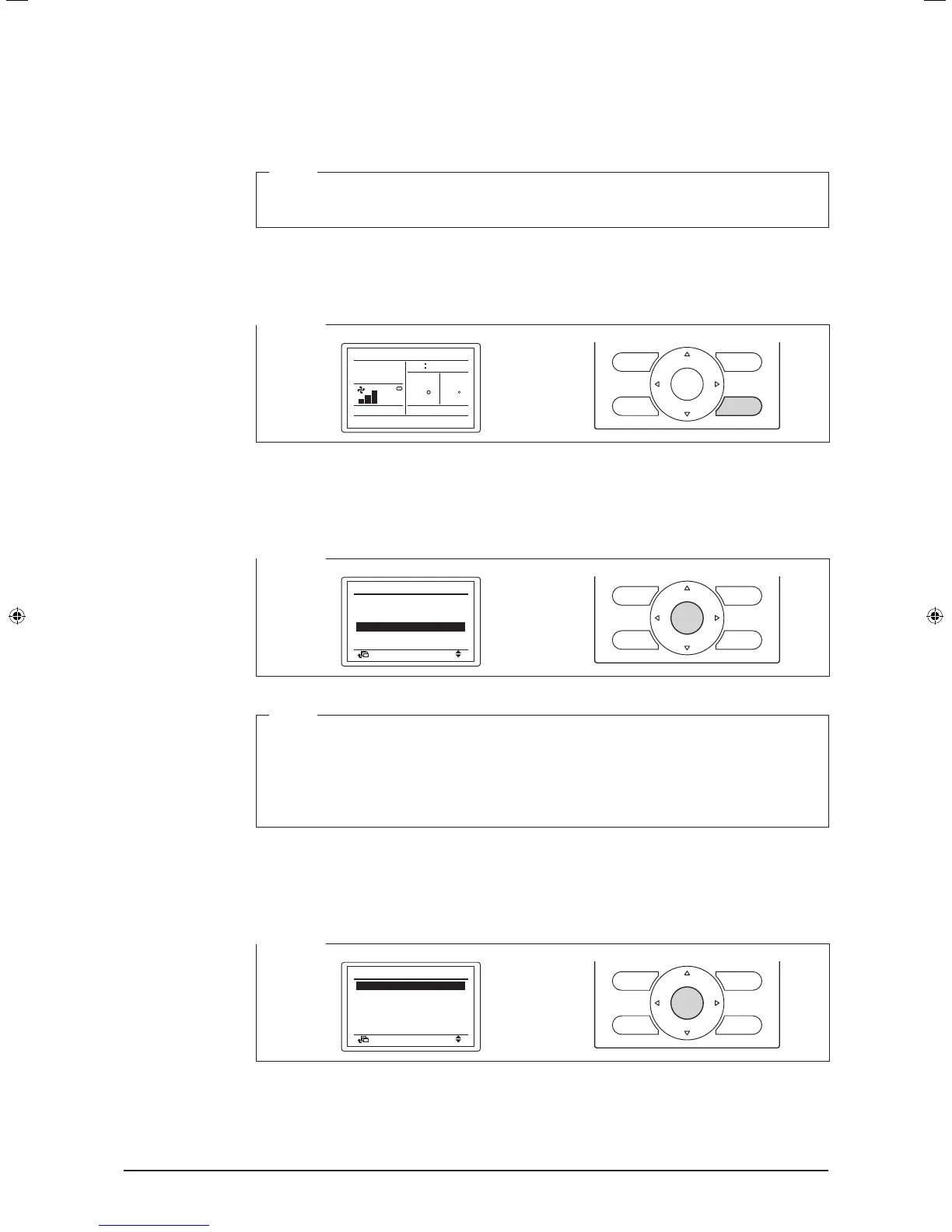

1. Press and hold the Cancel button for 4 seconds or more.
The “Field setting” menu is displayed.
<Step 1>
Cool
Set temp
0000
86
86
F
Room
F
2. Using the Up/Down buttons, select “Group No. setting” and press the Menu/Enter but-
ton.
The “Group No. setting” menu is displayed.
<Step 2>
Test operation
Register Service Contract
Error record
Return
Setting
Field setting
Field setting list
Indoor unit Airnet No. set
Group No.
setting
1/2
ON/OFF
NOTE
The “Group No. setting” menu is not displayed when the intelligent Touch Manager is
not powered on. Power on the intelligent Touch Manager and wait for a while before
trying to operate the remote controller. The “Group No. setting” menu is not displayed
also when the intelligent Touch Manager is not communicating with the indoor units
normally. Make sure that the cables are connected correctly.
3. Using the Up/Down buttons, select “Group No. setting (Group)” and press the Menu/
Enter button.
The current address setting is displayed.
<Step 3>
Group No.
setting(Unit)
Return
Setting
Group No.
setting
Group No.
setting
(Group)
