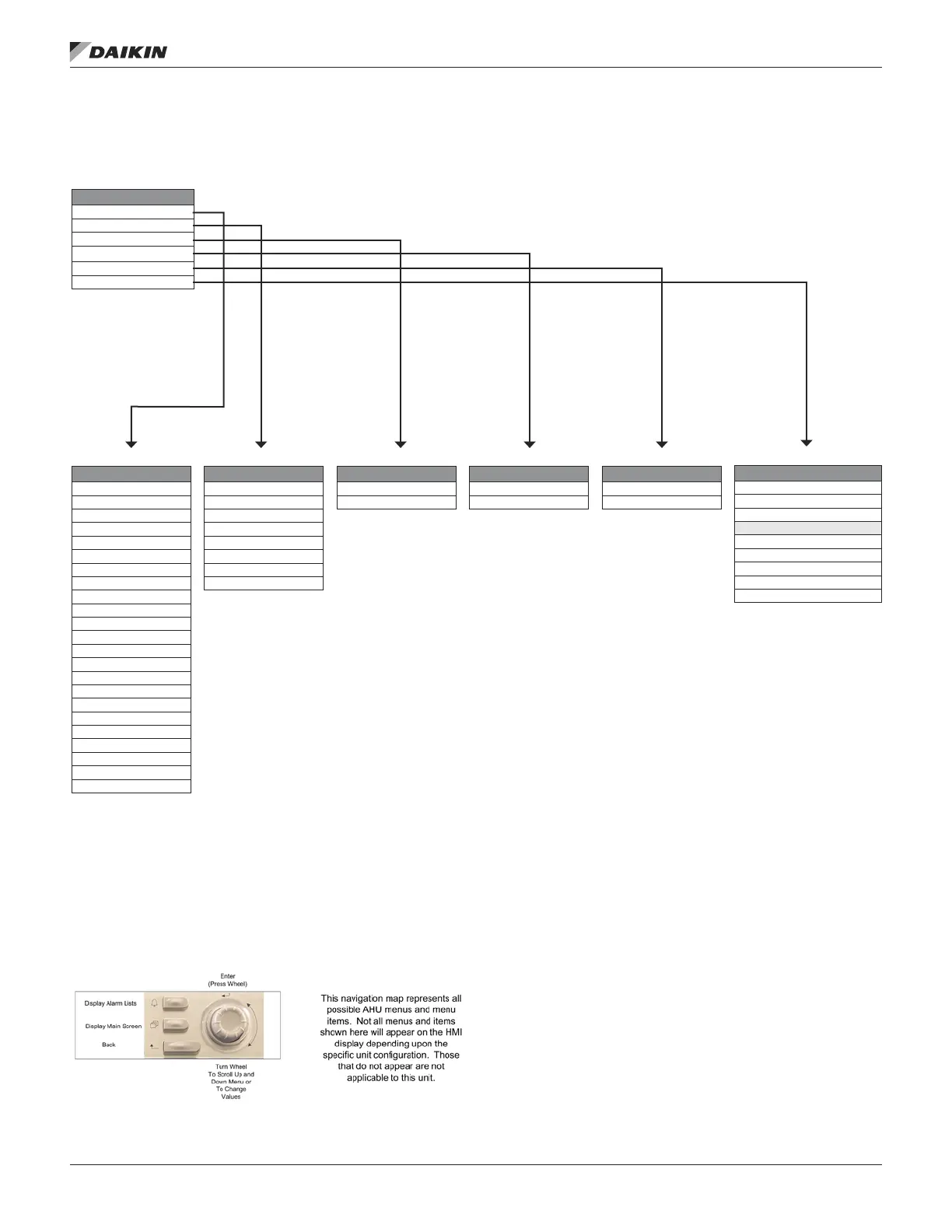

Figure 8: View/Set Unit – Keypad/Display Menu Structure
See page 18 — 21
View/Set Unit
Unit Status/Settings

Temperatures

Flow Status

SAF Spd Control

RF/EF Control

Date/Time/Schedules

See page 21
Date/Time/Schedules
Time= hh:mm:ss
Date= MM/DD/YY
UTC Di󰀨= -60min
DAYLIGHT SAVINGS
DLS Strt Mon= Mar
DLS Strt Wk= 2nd Week
DLS End Mon= Nov
DLS End Wk= 1st Week
DLS Enable= Auto
See page 18 — 19
Unit Status/Settings
System Mode= Local
Heat/Cool In= Heat/Cool
CmpIntrLock= _________
CmpCapIn= ___________
SAFSSIn= ____________
SAFCapIn= ___________
EAFSSIn= ____________
EAFCapIn= ___________
RhtVlvIn= ____________
OADCapIn= ___________
AlmResetIn=__________
Dehum Status= ________
Clg Status= ___________
Htg Status= ___________
SuplHtgStatus= ________
Econo Status= _________
Clg Capacity= XXX%
Htg Capacity= XXX%
Supl Htg Cap= XXX%
Reheat Cap= XXX%
SAF Speed= XXX%
RF/EF Cap= XXX%
OAD/Econo Cap=XXX%
See page 20
Temperatures
OA Temp= XXX°F
DRT1= XXX°F
DRT3= XXX°F
SRT= XXX°F
DFT= XXX°F
IRT= XXX°F
ORT= XXX°F
INVCompTemp= XXX°F
See page 20
SAF Speed Control
SAF Speed= XXX%
Speed Cmd= XXX%
See page 20
RF/EF Control
RF/EF Cap= XXX%
RF/EF Spd Cmd= XXX%
See page 20
Flow Status
Supply Fan= __________
Ret/Exh Fan= _________
