Time Period Programming

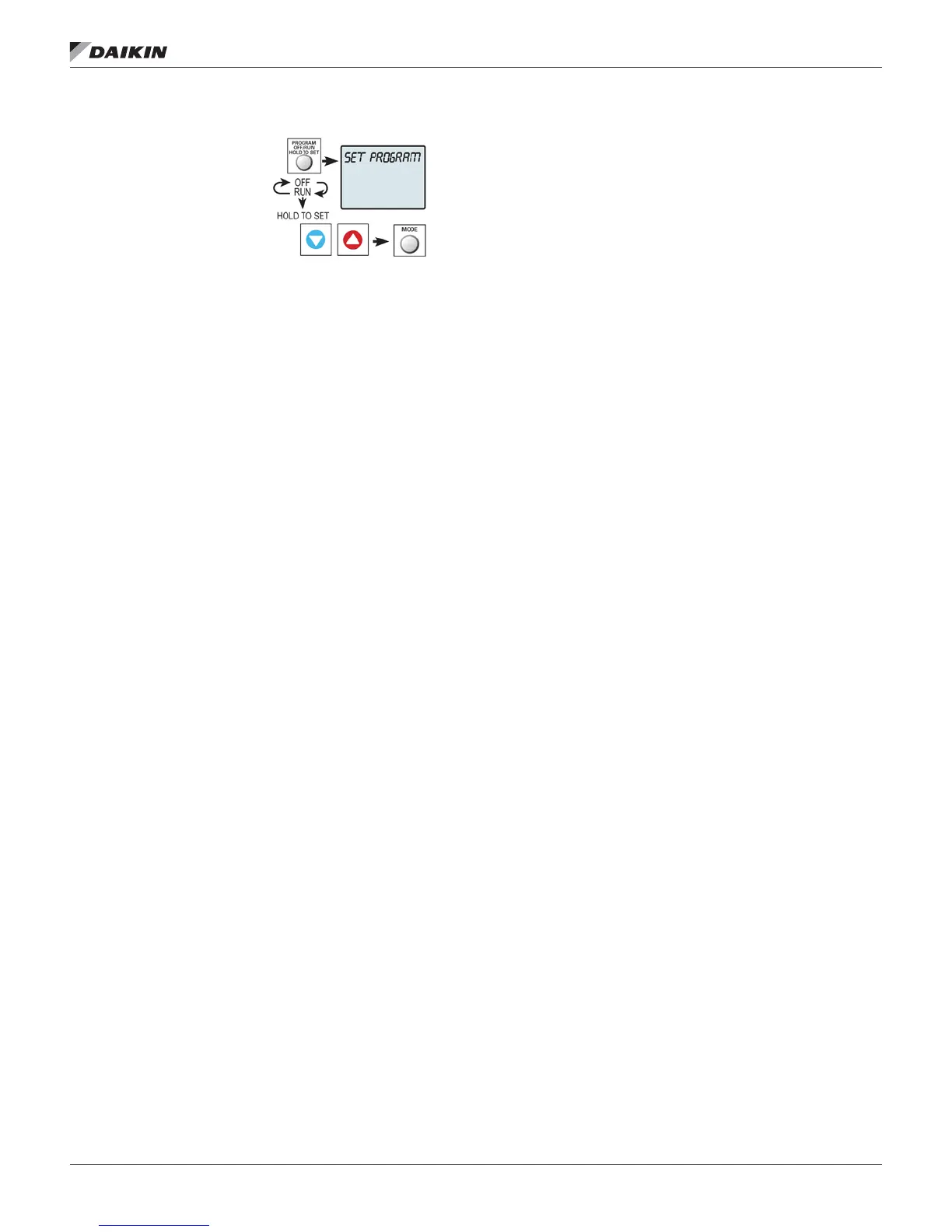

To enter Time Period
Programming screens, Press
and hold PROGRAM until the
scrolling prompt appears.
OFF – Time Period Program
is off.
RUN – Time Period Program
is running.
HOLD TO SET – Press and hold PROGRAM to make Time
Period Programming changes.
Programming a Daily Schedule
Select number of Occupied time periods – Press the UP or
DOWN buttons to choose the maximum number of Occupied
time periods to program. (1-3) Press MODE to advance to the
next step.
Select Occupied 1 Cool Setpoint – Press the UP or DOWN
buttons to adjust the cool setpoint desired. Press MODE to
advance to the next step.
Select Occupied 1 Heat Setpoint – Press the UP or DOWN
buttons to adjust the heat setpoint desired. Press MODE to
advance to the next step.
Select Unoccupied Cool Setpoint – Press the UP or DOWN
buttons to adjust the cool setpoint desired. Press MODE to
advance to the next step.
Select Unoccupied Heat Setpoint – Press the UP or DOWN
buttons to adjust the heat setpoint desired. Press MODE to
advance to the next step.
Select Day of Week to program – Press the UP or DOWN
buttons to choose the day of the week to be programmed.
Press MODE to advance to the next step.
Select Occupied 1 Start Time – Press the UP or DOWN
buttons to adjust the time of day desired. Press MODE to
advance to the next step.
Select Occupied 1 Stop Time – Press the UP or DOWN
buttons to adjust the time of day desired. Press MODE to
advance to the next step.
Select Occupied 1 Enable – Press the UP or DOWN buttons to
choose to enable the program to run on that day. Press MODE
to advance to the next step.
Copy Current Day to Next – Press the UP button to choose to
Copy the current day to another day. Press the UP or DOWN
buttons to choose which day to copy to. Press MODE to
conrm. Continue to Press MODE to copy to more days. Press
the DOWN button to program another day with a different
schedule.
Program Another Day – Press the DOWN button to choose to
program another day with a different schedule. Press MODE.
Press the UP or DOWN buttons to choose the desired day.
Press MODE to advance to the next step.
Press Program Button to exit Time Period Programming
