IM 1227 • MODELS DC THERMOSTATS 54 www.DaikinApplied.com
high resoluTion TouCh sCreen DigiTal ThermosTaT
Using the Settings Functions
Thermostat heating and cooling options are found in this menu.
●

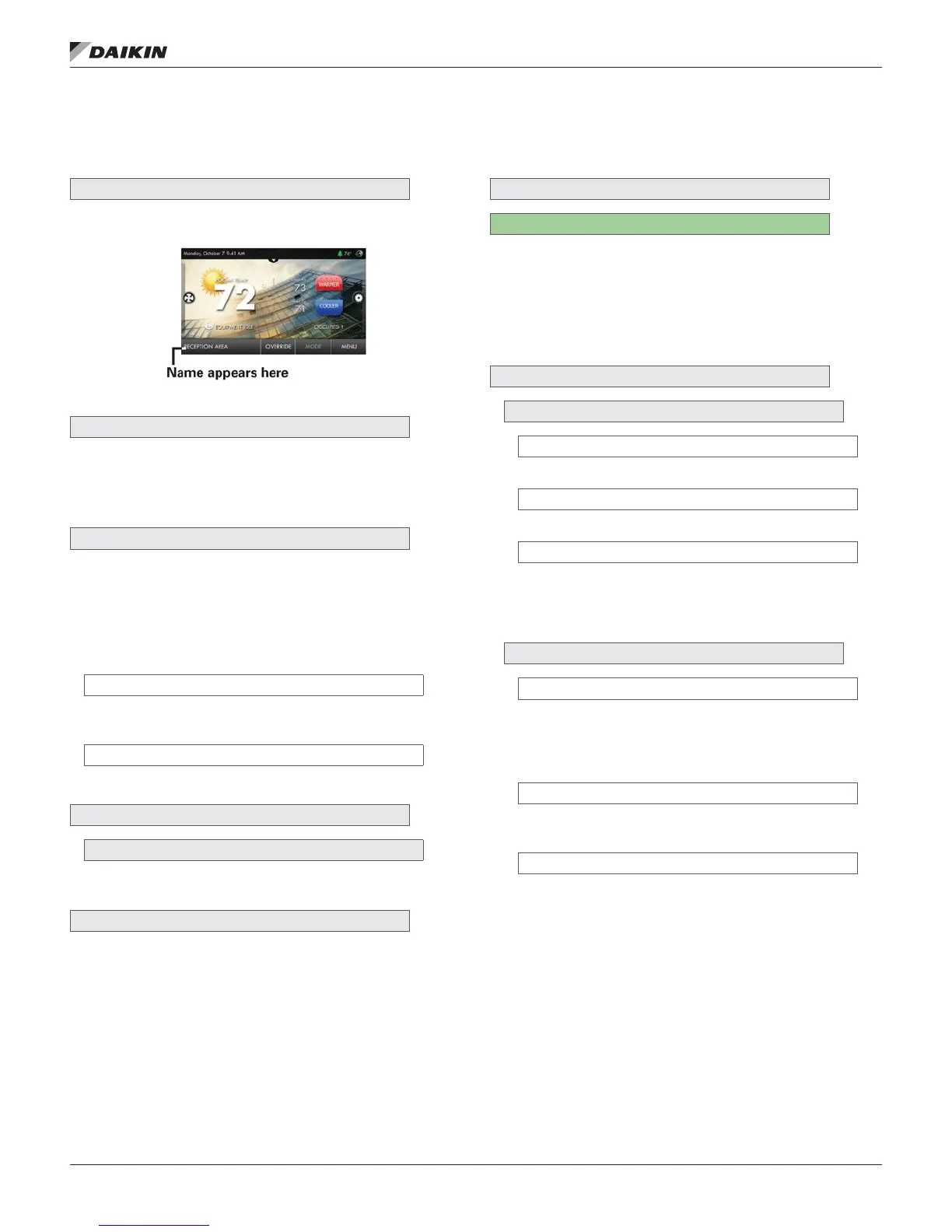

Thermostat Name
►
Use keypad to name your thermostat. The name is displayed
on the Home Screen (Up to 14 characters).
●
Available Modes (all)
►
Choose the desired modes the thermostat will use: Heat,
Cool, Heat & Cool, or Auto (All). For example, if you only have
a heater, choose Heat, and only Heat & Off modes will be
available. This will simplify the operation for the user.
●
SD Card
►
Import and export les to and from the thermostat. See the
TouchScreen Assistant instructions for further details.
NOTE: A 2GB SD card is recommended. To import and
export les, the SD card must contain the same
version of the rmware as the thermostat. Touch
Screen Assistant will keep the rmware current.
●
Import Settings from SD Card
►
Upload les from ColorTouch Assistant or another
thermostat.
●
Export Settings to SD Card
►
Export les from one thermostat and import them into others.
●
General Setup
►
●
Units (F)
►
• Fahrenheit (F)
• Celsius (C)
●
Language (en)
►
• English
• Spanish/Español
• French/Français
●
Smart Recovery – OFF
►
●
Smart Recovery – ON
Smart Recovery turns on the heat before the Occupied start
time to bring the room temperature to the Occupied setpoint at
the start of the Occupied time period. Please allow 4-8 days for
Smart Recovery time to adjust. When used with a heat pump,
electric strip heat will be disabled while Smart Recovery is
active.
●
Installation Settings
►
●
Heat & Cool Stages (1h1c)
►
●
Heat & Cool Stages (1h1c)
►
Up to 2 Stages Cooling and 4 stages Heating.
●
Compressor Stages* (1h1c)
►
Up to 2 compressors.
●
Aux Heat Stages* (1h1c)
►
0 to 2 stages of Aux Heating.
*Only available when dip switch is set for Heat Pump
operation.
●
Timers & Deadbands
►
●
Cycles Per Hour (6)
►
At 6 cycles per hour, the HVAC unit will only be allowed
to energize once every 10 minutes. The Cycles Per
Hour limit may be overridden and reset by pressing the
WARMER or COOLER buttons (2, 3, 4, 5, 6, No Limit).
●
Min Heat/Cool Difference (2°)
►
The minimum gap between Heat and Cool setpoints. (0 - 6
deg. F)
●
Compressor Min OFF Time (5m)
►
None, 1 minute, or 5 minutes.
The Deadband is the number of degrees or minutes that
the thermostat waits before it initiates the stages of
heating or cooling.
1st Stage Deadband: Species the minimum temperature
difference between the room temperature and the desired
setpoint before the rst stage of heating or cooling is allowed
to turn on. For example, if the heat setpoint is 68 and the 1st
Stage deadband is set to 2 degrees, the room temperature will
need to drop to 66 degrees before the heat turns on.
