1st Stage Deadband (2°)
►
(1–6°F)
●
2nd Stage Deadband
►
●
2nd Stage Deadband (2°)
►
Number of degrees past 1st stage before 2nd stage turns
on. (0–10°F)
●
2nd Stage Timer (2 mins)
►
Number of minutes past 1st stage before 2nd stage turns
on. (0–60 mins.) (The 2nd stage deadband must also be
met)
●
2nd Stage Turnoff Point (Deadband )
►
Deadband or Setpoint.
●
3rd Stage Deadband
►
●
4th Stage Deadband
►
The 3rd and 4th stage deadband settings have the same
adjustable steps as 2nd stage deadband.
●
Heat Pump Settings
►
Only available when dip switch is set for Heat Pump
operation. A local outdoor thermostat connected to the
thermostat is reqired.
●
Heat Pump Lockout – DISABLED
►
●
Heat Pump Lockout – ENABLED

Turns on Heat Pump Lockout.
●
HP Lockout Outdoor Temp (65°)
►
Heat Pump will not run below this temp. (0°–75°F)
●
Aux Heat Lockout – DISABLED
►
●
Aux Heat Lockout – ENABLED

Turns on Aux Heat Lockout.
●
Aux Heat Lockout Temp (65°)
►
Aux Heat will not run above this temp. (0°–75°F) GAS/EL
or HP dip switch must be set for HP and GAS or ELEC dip
switch must be set for ELEC.
For TSTATD4272CGT Models Only
●
AUX Output Settings
►
Allows the W3/AUX output to be used for Heating,
Humidication, or Dehumidication.
●

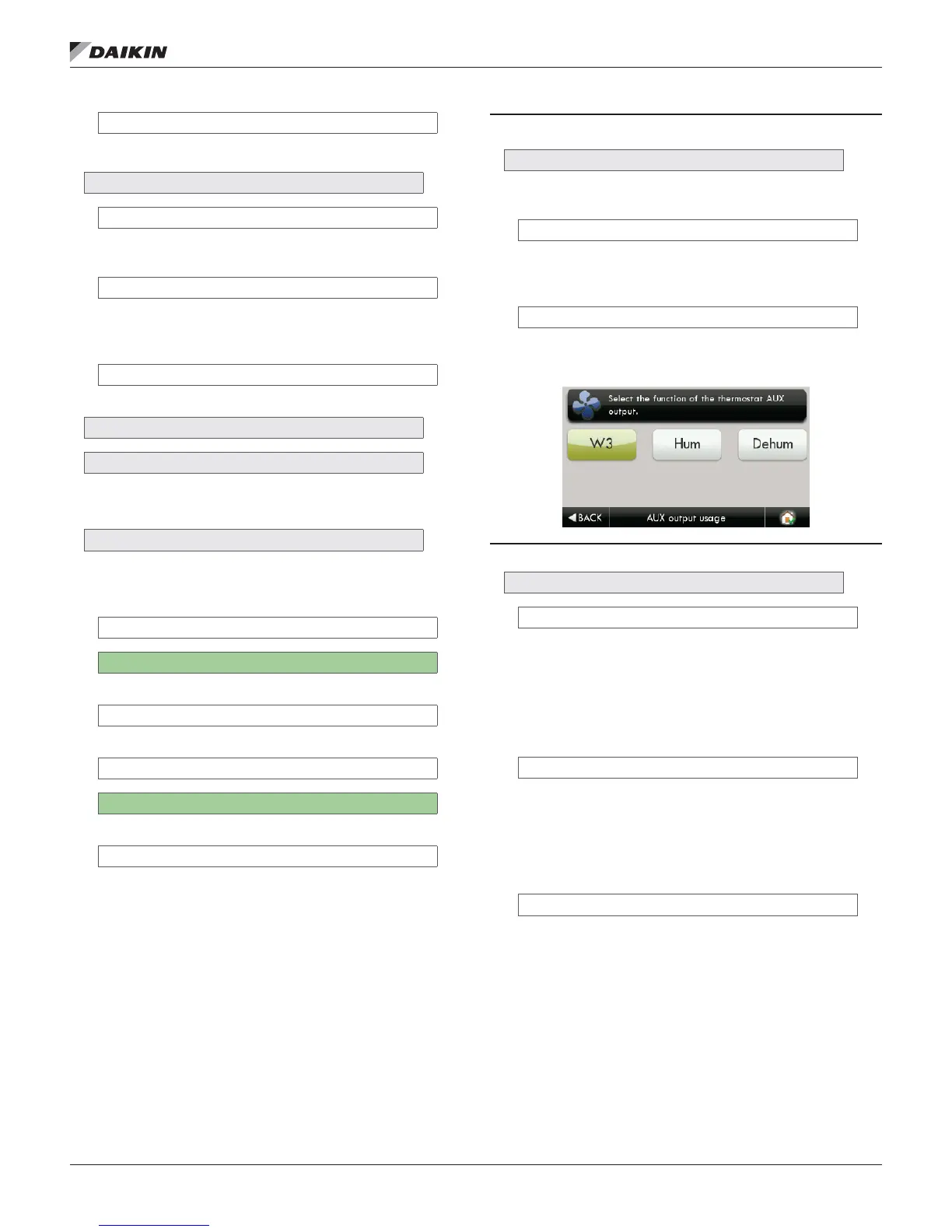

AUX output usage (W3)
►
IMPORTANT: Aux Output Usage must be set for Hum or
Dehum before any settings will take effect in the Humidity
Main Menu.
●
AUX output polarity (NO)
►
The AUX Output polarity may be set for Normally Open or
Normally Closed to accommodate different types of
humidication and dehumidication equipment.
●
Sensor Settings
►
●
Control Sensor (thermostat)
►
When a remote sensor is connected to the thermostat, the
user may choose which sensor source is used to measure
room temperature.
• Thermostat sensor only
• Wired Sensor only
• Average remote/thermostat
●
Wired Sensor Use (remote)
►
The wired sensor may be used as follows:
• Outdoor sensor
• Remote Sensor
• Supply Sensor
• Return Sensor
●
Calibrate Sensors (0°)
►
The thermostat and wired sensor may be calibrated -7° to
+7°F. The integral humidity sensor may be calibrated -20%
to +20% RH.
