Dali Sound Hub User Manual

AUX IN
RCA IN
OPTICAL IN OPTICAL IN USB POWER/
SERVICE
COAXIALPRE OUT
POWER
15V 2.8A
L R L R
Input
Output
SUB OUT
PLUG-IN MODULE
PLUG-IN MODULE
Pre Out Power In USB Power
Out /Service
Sub Out

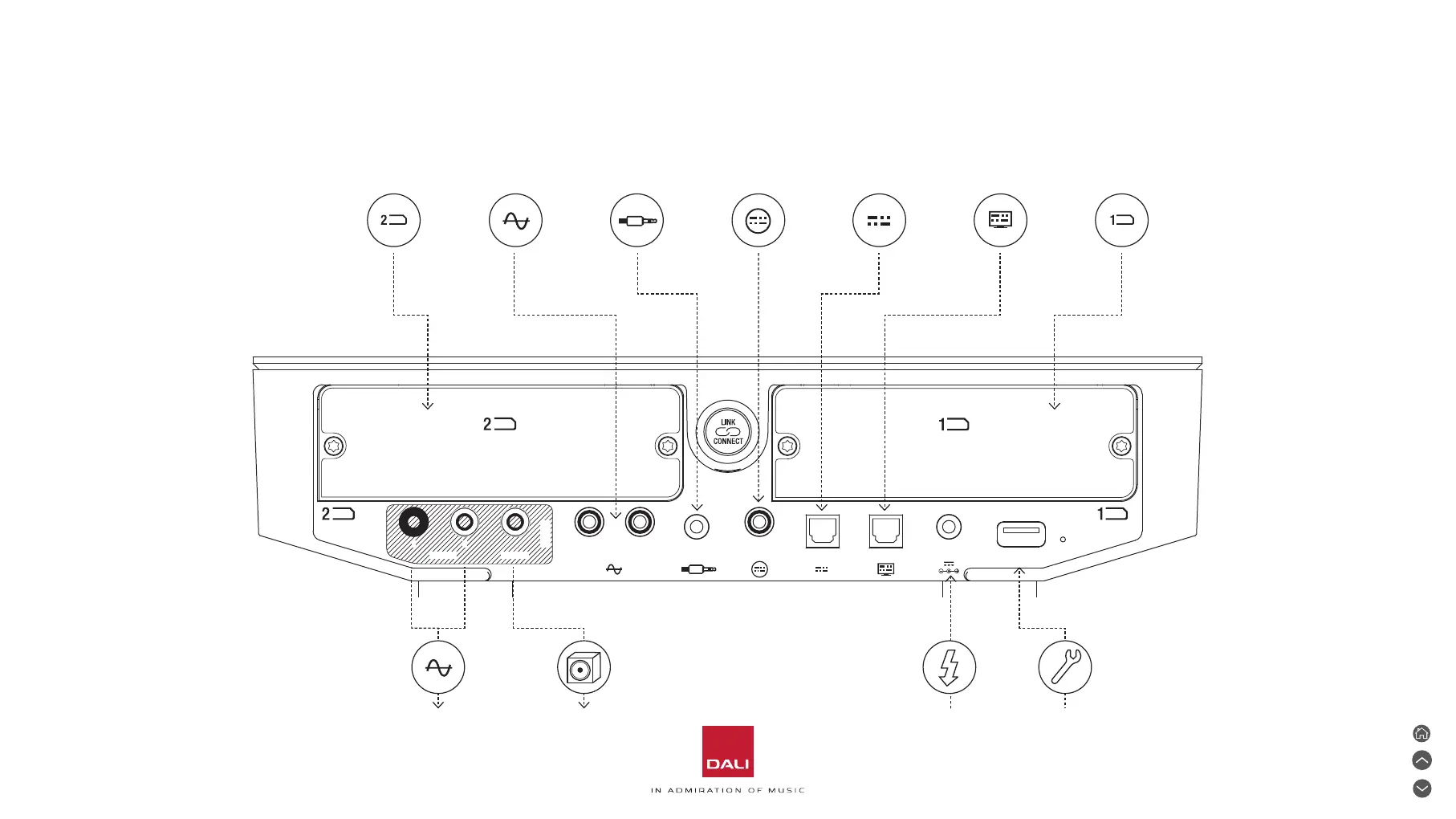

D 1: SOUND HUB Rear Panel
RCA In AUX In
Coaxial In
Optical In
Optical In (TV)
Module 2 Module 1
1. SOUND HUB Overview
5

Dali Sound Hub Specifications

General

Mounting type	Shelf/wall-mounted
Product color	Black
DC input voltage	4.5 V
Number of audio source inputs	-

Weight and Dimensions

Depth	213 mm
Width	300 mm
Height	76 mm
Weight	1600 g
