Installation and User Guide DEVIreg™ Multi
FEC | Produced by Danfoss © 25
This mode can be individually set up for any Channel. By default – function is Disabled for
all Channels.

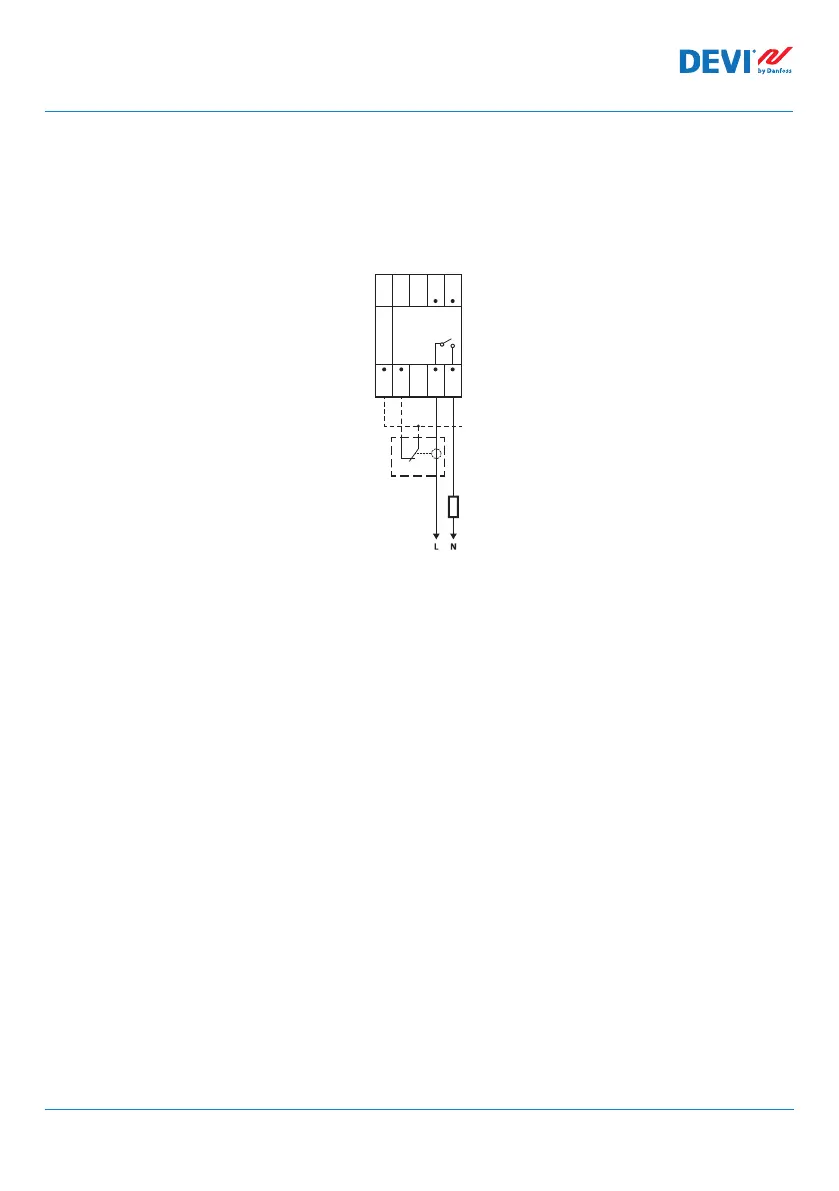

Common Channel diagram with connected CMR is shown on the picture below:
Channel #1
CMR #1
COM
COM
DI 1-4
DI 1
C 1
NO 1
AI 1
<I
For the state CableOK? = OK is used term Yes , and for the state CableOK? = not OK is
used term No respectively.
For CableOK? function can be set up two control parameters: Enable or Disable, and digital input
(DI) state for OK status – Normally Opened (NO) or Normally Closed (NC) on the COM DI input.
Enabled or Disabled. Function can be Enabled (En) or Disabled (Dis) for any Channel.
By default – Disabled.
CableOK? NO/NC. Setting for state of digital input (DI) when CableOK? function is OK. It
means if chosen NO for CableOK? = OK then digital input is not connected to the controller
input COM DI or there is an open circuit between DI and COM DI. And vice versa, if
chosen NC for CableOK? = OK then digital input connected to controller input COM DI or
there is a short circuit between DI and COM DI.
Default – NO or Normally Opened (this setting and proper CMR is shown on the picture above).
Settings CableOK? function can be done by the following menu sequence:
EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X – Ca-
bleOK?– { Enter – #X CableOK? En/Dis – Down – #X CableOK? = NO/NC }
EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X – Ca-
bleOK?– { Enter – #X CableOK? En/Dis – Down – #X CableOK? = NO/NC }
