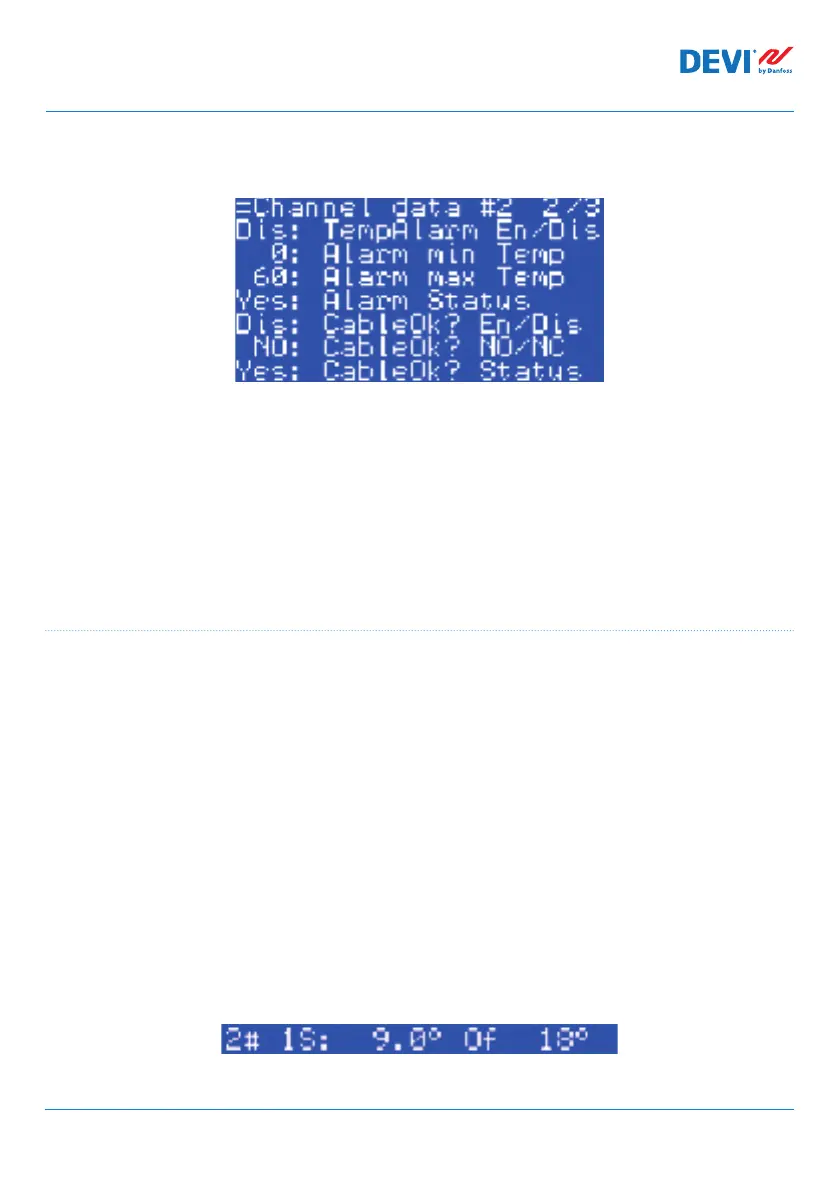

Data for CableOK? function is presented on =Channel data #X screen, for example as on
the screen below in 3 bottom lines:
Relevant data on the picture above means the following:
- CableOK? function is disabled for Channel #2 – ‘Dis’ on the screen, and software does
not control state of the input DI2;
- input DI2 has setting ‘NO’ (Normally Open) or, in other words, when current flows
through the cable/heater the input DI2 should not be closed on input COM DI;
- actual status for CableOK? function is OK or displayed ‘Ye s ’ in the last line.
4.4.7 Channel ON/OFF – special function
Each Active Channel can be set up with status OFF or ON. OFF means that there is no
need to carry out Channel control algorithm due to, for example, a malfunction of the
cable or sensor, heating system installation and so on. In other words, Channel does not
perform algorithm and does not perform any Alarms. At the same time the Channel
saves all settings and for 1S mode active Channels show real sensors’ temperature and for
PR mode – shows real mode time. Additionally, it is possible to do/change any settings.
Settings Channel ON/OFF function can be done by the following menu sequence:
EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X – Channel
ON/OFF – {Enter – #X Channel ON/OFF }
EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X – Channel
ON/OFF – {Enter – #X Channel ON/OFF }
When Channel is OFF hash sign/symbol – ‘#’ – is presented on the 2
nd
position of Main
Screen line, for example:
