Danfoss DSH Series Application Guide

15 mm
(0.59 Inch)
1
2
3
4
5
6
7
cc-0048
1
2
3
4
5
6
7
Tightening torque 15 Nm
HM 8 bolt (4 pcs)
Lock washer (4 pcs)
Flat washer (4 pcs)
Steel mounting sleeve (4 pcs)
Rubber grommet (4 pcs)
Nut (4 pcs)
Figure 25: Rubber grommets from kit 8156138
1
CC-0000001
Figure 26: Rubber grommets
27.5 mm
(1.08 inch)
CC-0049
2
8
3
4
5
6
7
1
2
3
4
5
6
7
8

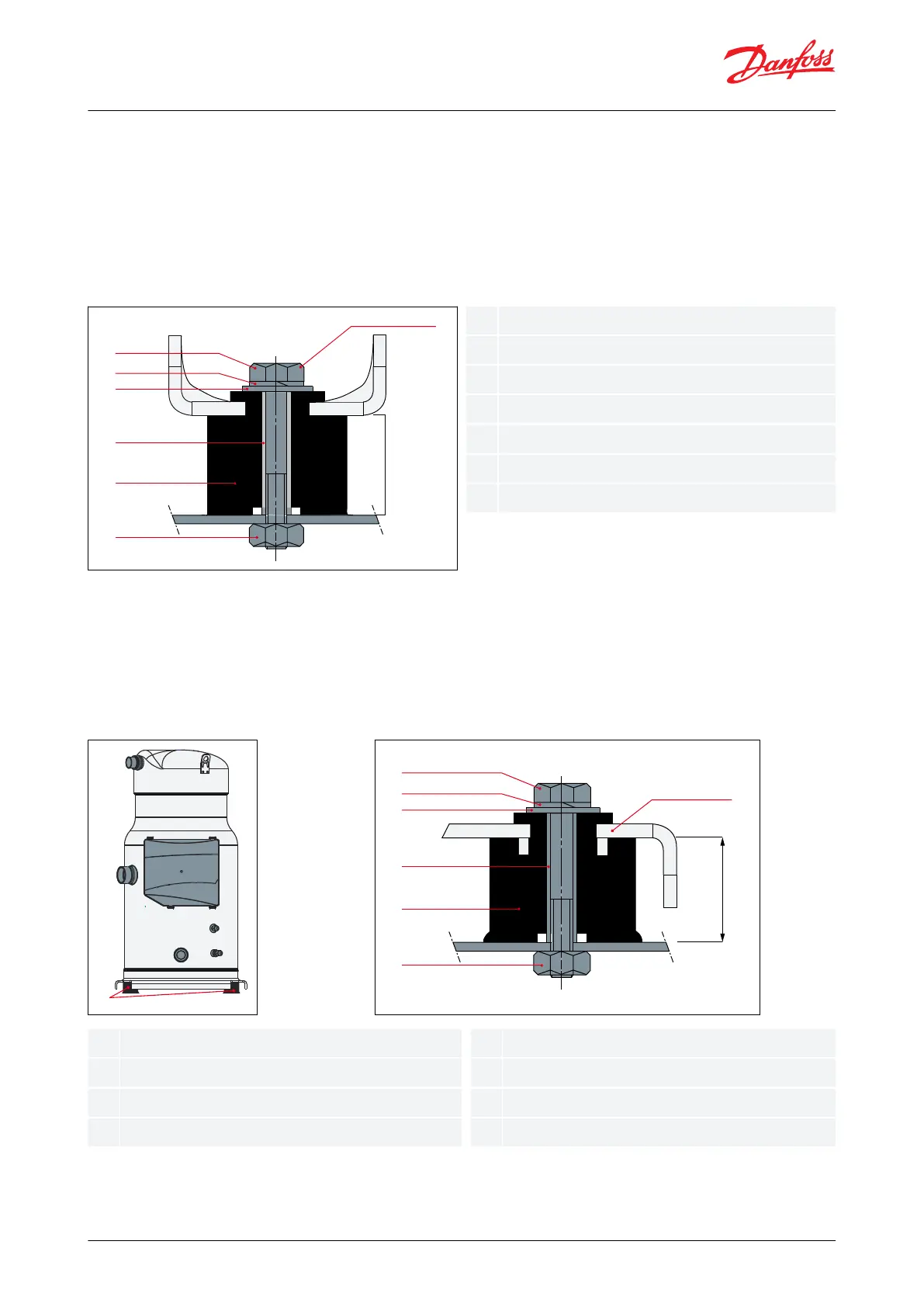

Single requirements DSH090-105-120-140-161-184 mounting
Compressors DSH090-105-120-140-161-184 are delivered with rubber grommets and steel mounting sleeve used to
isolated the compressor from the base frame.
The grommets must be compressed until contact between the at washer and the steel mounting sleeve is
established. The required bolt size for the DSH090-105-120-140-161-184 compressors is HM8-40. This bolt must be
tightened to a torque of 15Nm.
Figure 24: Rubber grommets
Part 2, 3, 4, 5, 6 and 7 are delivered along with
compressor
Single requirements DSH240-295-381-485 -600 mounting
To be used in single applications, an additional accessory including exible grommets is necessary kit 8156138.
The grommets must be compressed until contact between the at washer and the steel mounting sleeve is
established. The required bolt size for the DSH240-295-381-485-600 compressors is HM8-55. This bolt must be
tightened to a torque of 21Nm.
Rubber grommets from kit 8156138
HM 8 bolt (4 pcs)
Lock washer (4 pcs)
Flat washer (4 pcs)
Steel mounting sleeve (4 pcs)
Rubber grommet (4 pcs)
Nut (4 pcs)
Compressor base plate
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 27
Scroll compressors, DSH090 to DSH600 | Mechanical connections
