Manifolding requirements DSH180E-210E-240E-280E-322E-368E and DSH260U-281U-301U
mounting
The compressors must be mounted with rigid mounting spacers on rails. Rubber grommets and spacers must be
installed below the rails.
The rigid mounting spacers are included in tandem accessory kits. The rubber grommets are supplied with
compressor.
For more details about parallel mounting feet, please see parallel unit outline drawing.

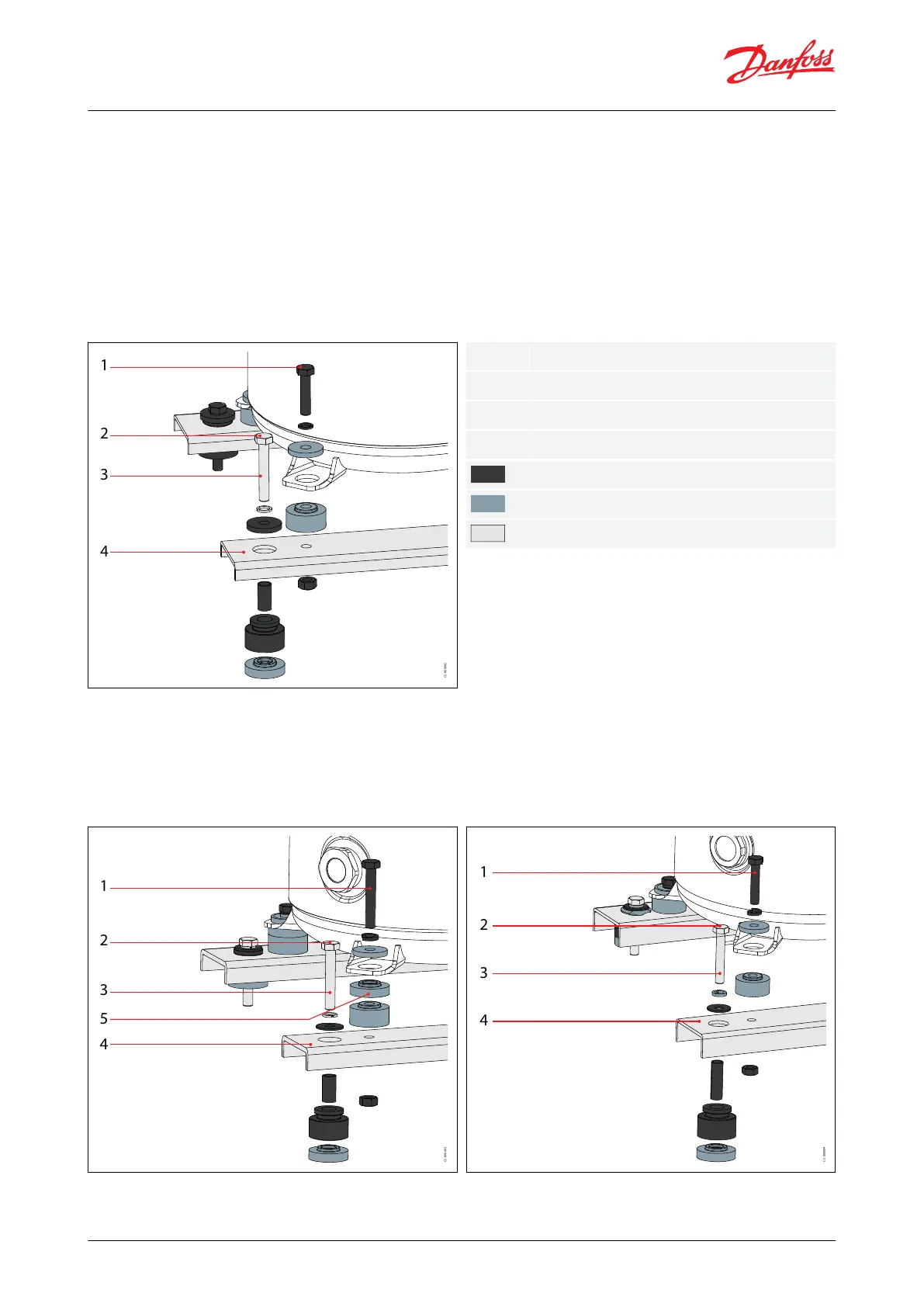

Figure 27: DSH180E to DSH368E and DSH260U-281U-301U mounting
Manifolding requirements DSH195U-210U-230U-251U-274U-289U-304U-324U-345U mounting
The compressors must be mounted with rigid mounting spacers on rails. Rubber grommets and spacers must be
installed below the rails.
The rigid mounting spacers are included in tandem accessory kits. The rubber grommets are supplied with
compressor.
