1
2
3
4
CC-000009
1
2
3
4
Tightening torque 15Nm
Not supplied HM8mm 0.31 inch
Tightening torque 15 Nm
3mm (0.12inch) Thickness
Supplied with the compressor
Included in manifolding kit
Not supplied
1
2
3
4
5
Tightening torque 15Nm
Not supplied HM8mm 0.31 inch
Tightening torque 15 Nm
4mm (0.16 inch) Thickness
Additional rigid spacer (Refer to table below)
Supplied with the compressor
Included in manifolding kit
Not supplied
Table 18: Additionnal rigid spacer
Tandem
Additionnal rigid spacer (to be added on the smallest compressor of the tan‐
dem)
DSH195U-210U-230U-251U-289U-304U-345U
7 mm
DSH274U
14 mm
Tandem requirements DSH420T-483T-552T
The compressors must be mounted with rigid mounting spacers on rails. Rubber grommets and spacers must be
installed below the rails.
The rigid mounting spacers and rubber grommets are included in tandem accessory kits.

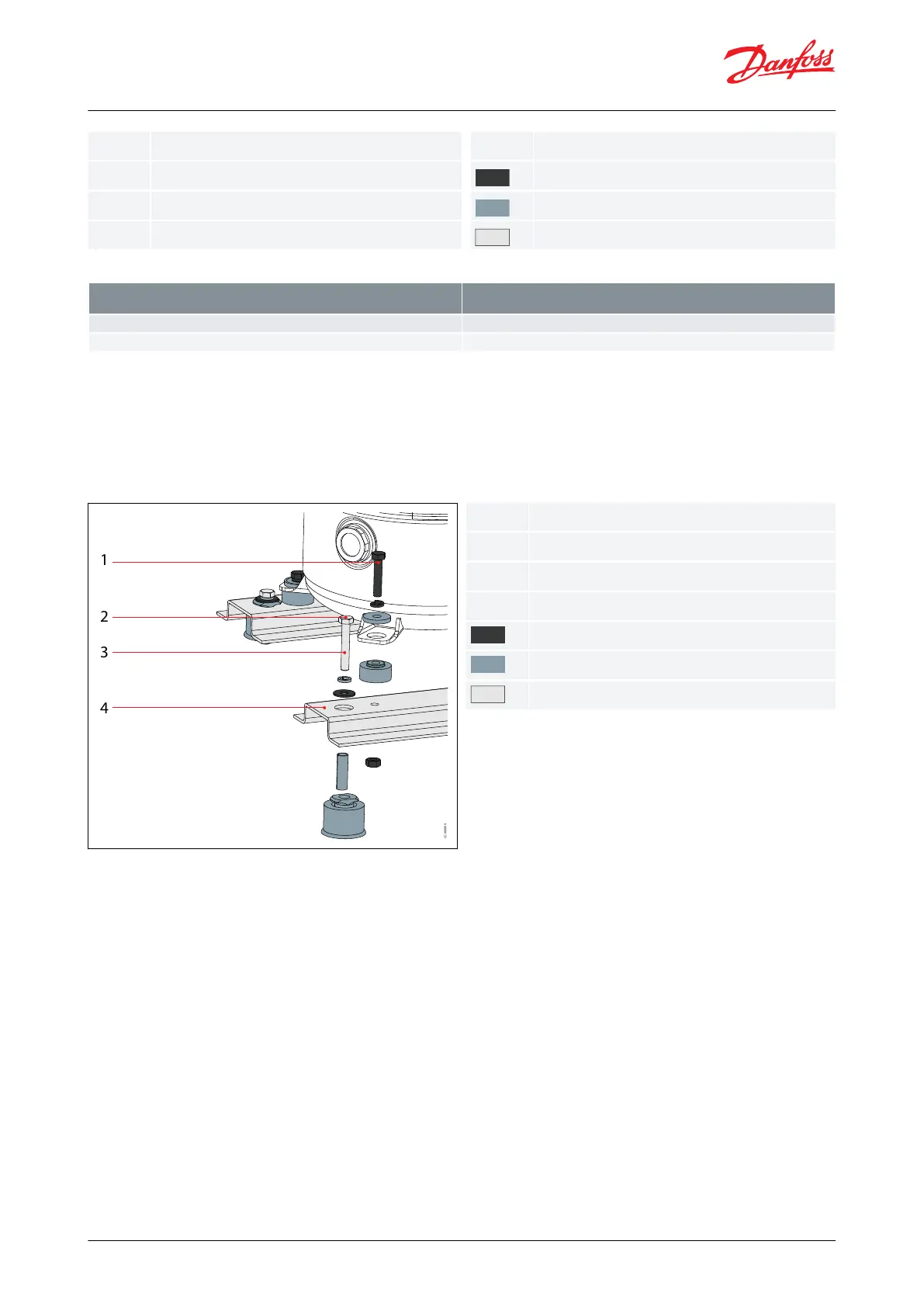

Figure 28: DSH420T-483T-552T mounting
Tandem requirements DSH360X-424X-456X-479X-565X mounting
The large compressor, DSH240, 295 or 381, is mounted with rigid spacers on the rails.
The DSH120, 161 or 184 compressor is xed on beams by rigid spacer, and the beams are mounted with rigid
spacers on the rails. Rubber grommets and spacers must be installed below the rails.
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 29
Scroll compressors, DSH090 to DSH600 | Mechanical connections
