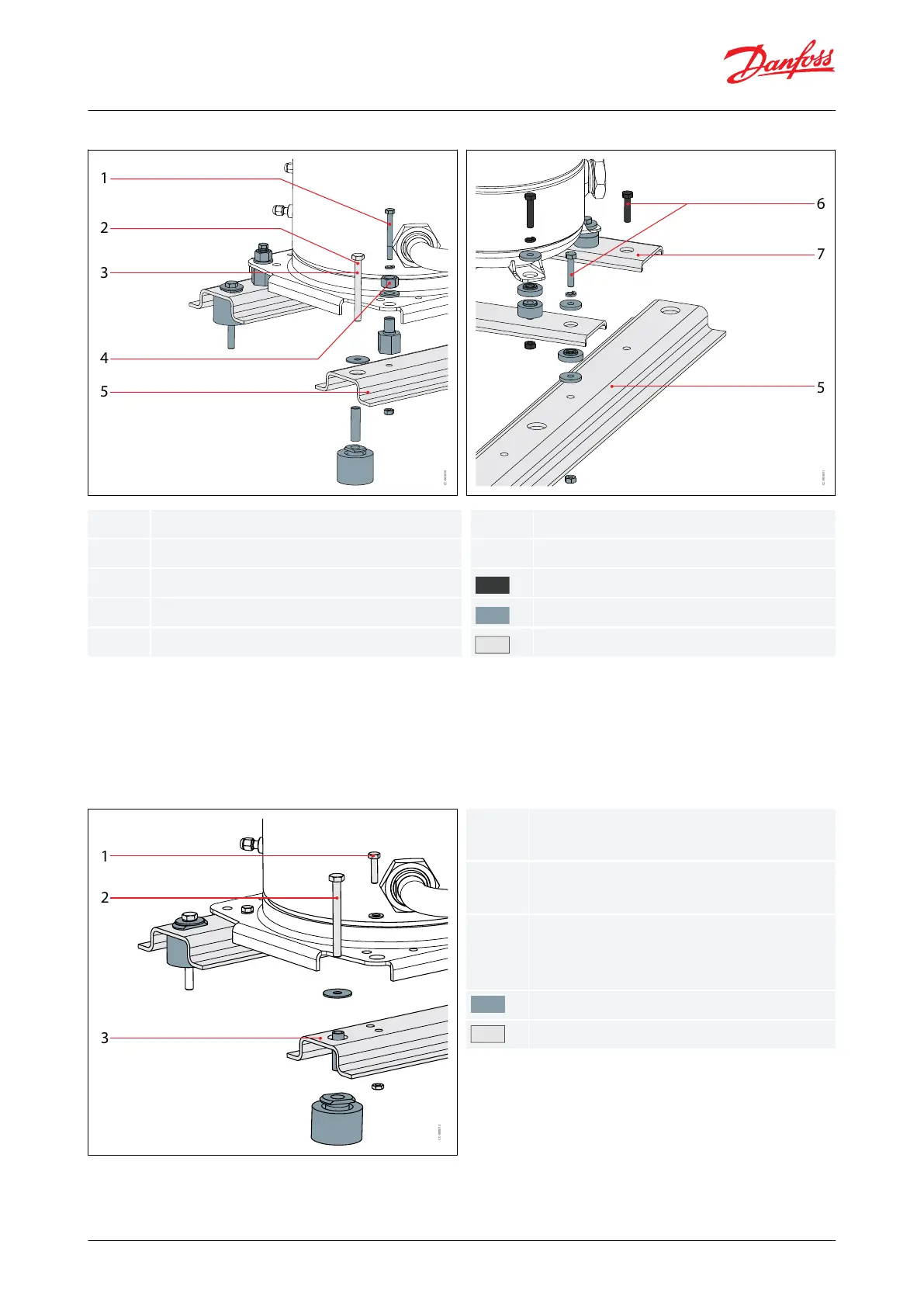

Figure 29: DSH240-295-381 mounting
1
CC-000010
4
5
2
3
Figure 30: DSH120-161-184 mounting
7
6
5
CC-000011
2
1
3
CC-000012
1
2
3
HM10 x 30 class 10.9 Tightening torque 50
Nm
HM10 x 100 class 10.9 Tightening torque
50Nm
Thickness : 5mm (0.2 inch) (6mm (0.24 inch)
for manifold congurations using one or
several DSH600)
Included in tandem/trio kit
Not supplied
1
2
3
4
5
6
7
Tightening torque 16Nm
Not supplied Φ10mm
Tightening torque 50Nm
Tightening torque 55Nm
5mm (0.2inch) thickness
Tightening torque 15Nm
4mm (0.16inch) thickness
Supplied with the compressor
Included in manifolding kit
Not supplied
Tandem requirements DSH482 to DSH1800 mounting (except DSH565)
For parallel mounting, the compressors can be mounted directly on the rails. Rubber grommets and spacers must be
installed below the rails.
These parts are included in accessories.
Figure 31: DSH482 to DSH1800 mounting (except DSH565)
