Danfoss DSH Series Application Guide

1 2
CC-000034
1
2
Organ pipe
Tightening torque 100Nm
Supplied with the compressor
Included in tandem kit
Trio model
Composition Cp1 + Cp2
+Cp3
Suction
Dis‐
charge
Oil equaliza‐
tion
Outline
drawing
number
Suction
from
Washer inner di‐
ameter
Washer in
suction of
Trio kit code
DSH1455T
DSH485+DSH485+DSH485
3"1/8
2" 1/8
1" 5/8
8556216
Left
33 mm(1.3 inch)
Cp2 & Cp3
120Z0793
Right
33 mm(1.3 inch)
Cp2 & Cp3
DSH1570T
DSH485+DSH485+DSH600
3"1/8
2" 1/8
1" 5/8
8556246
Left
36mm(1.42 inch)
Cp3
120Z0822
Right
36mm(1.42 inch)
Cp3
120Z0822
DSH1685T
DSH485+DSH600+DSH600
3"1/8
2" 1/8
1" 5/8
8556245
Left
42mm (1.65 inch)
Cp2
120Z0819
Right
41mm (1.61 inch)
Cp3
120Z0820
DSH1800T
DSH600+DSH600+DSH600
3"1/8
2" 1/8
1" 5/8
8556244
Left
Not needed
-
120Z0712
Right

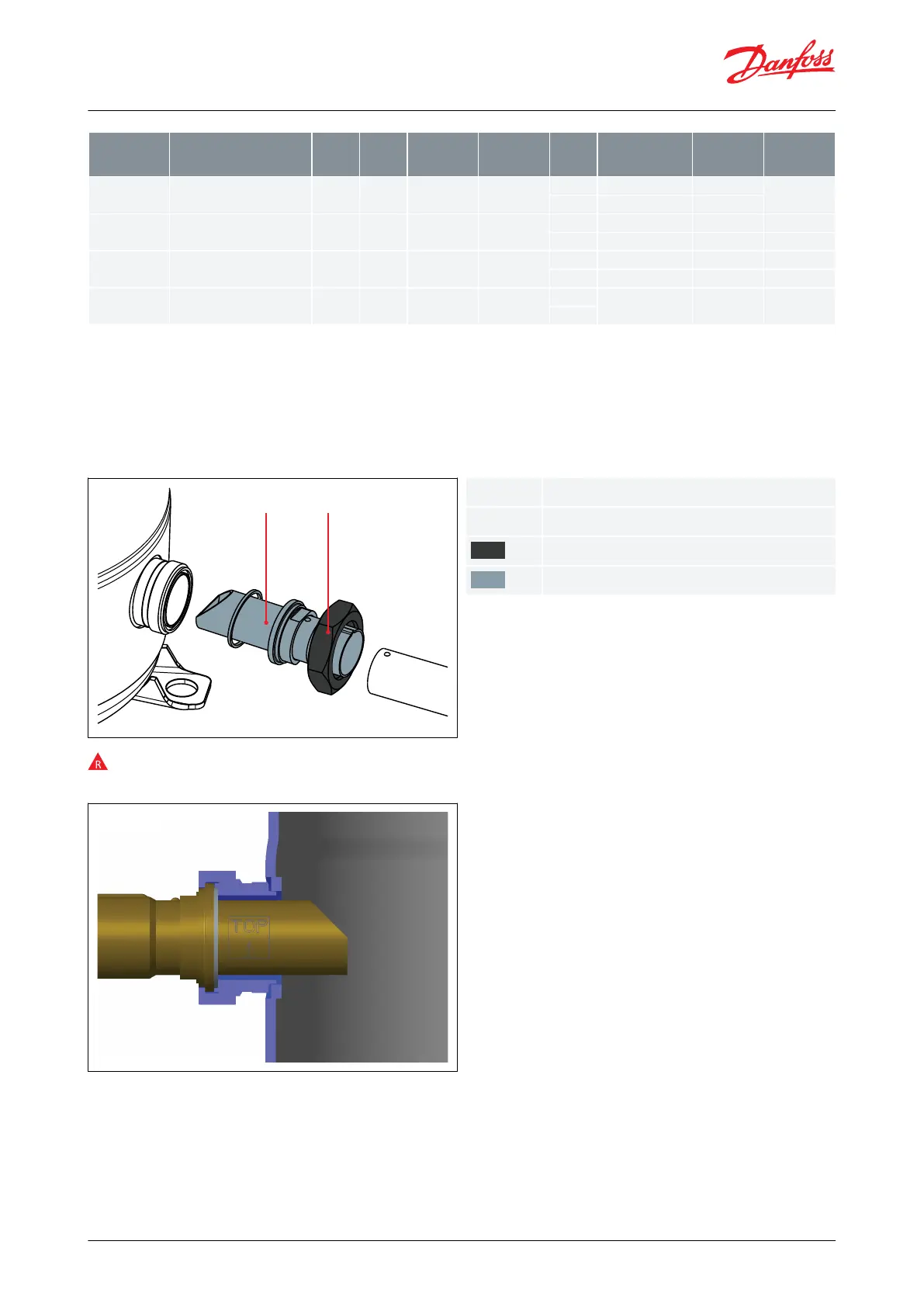

Oil equalization design DSH180E to DSH368E
The oil level is balanced by a pipe of 1"1/8 oil equalization line.
In order ensure best oil balance, the organ pipe need to be mounted inside the oil equalization port as indicated on
below picture. To connect the equalization line on rotolock connections, the organ pipe adaptor and teon gasket
are included in the tandem kit must be used.
The organ pipe needs to be installed in the direction indicated by the label attached on pipe surface, which will
ensure best oil balance.
Oil equalization design DSH360X-424X-456X-479X-565X
The oil level is balanced by a pipe of 1"3/8 oil equalization line.
In order to ensure best oil balance, the organ pipe need to be mounted inside the DSH120, 161 or 184 oil
equalization port as indicated on below picture. DSH240, 295 or 381 has integrated organ pipe inside the oil
equalization port.
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 35
Scroll compressors, DSH090 to DSH600 | Mechanical connections
