Danfoss DSH Series Application Guide

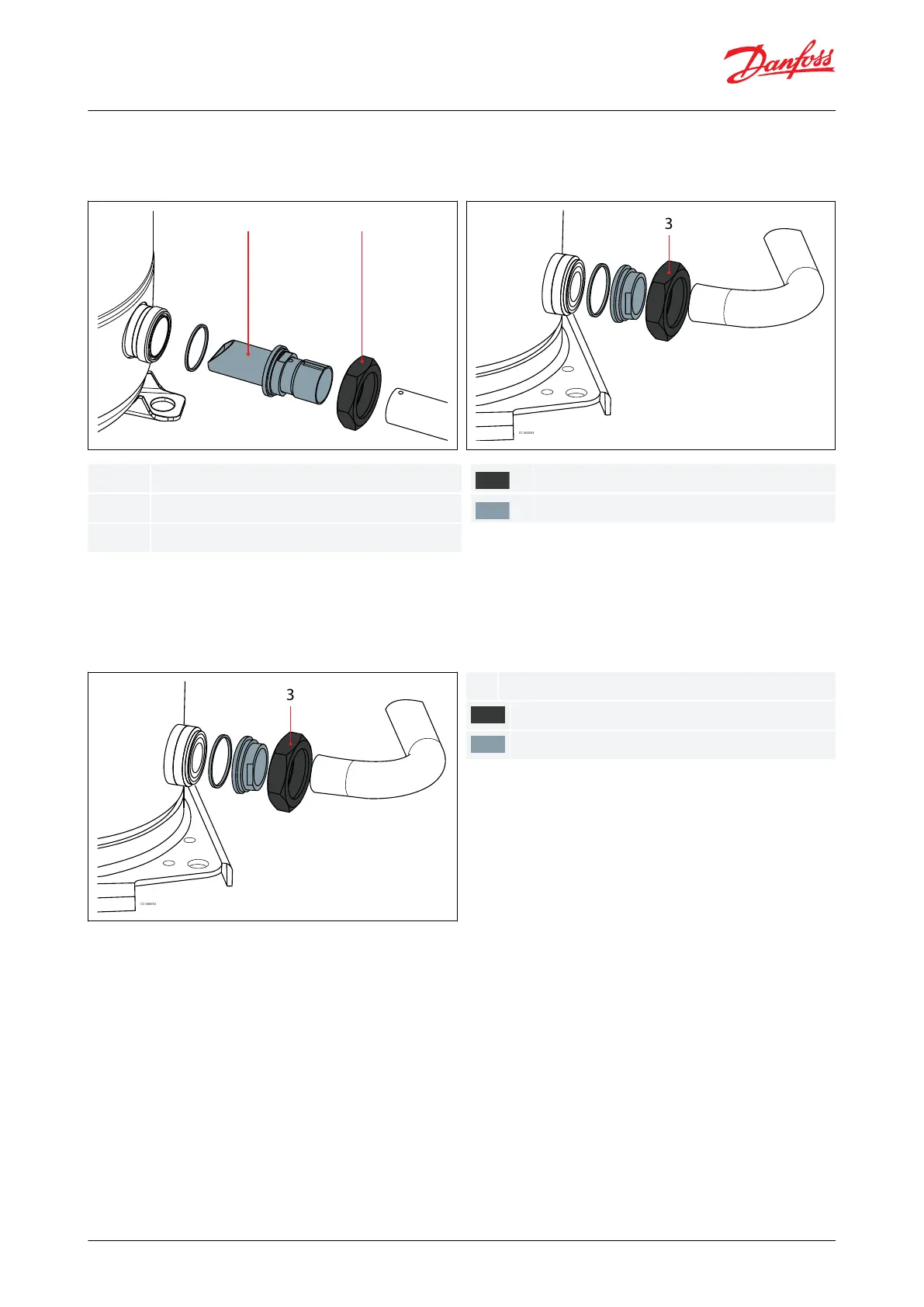

Figure 37: For DSH120, DSH161 or DSH184
1 2
CC-000032
Figure 38: DSH240, DSH295 or DSH381
3
CC-000033
3
CC-000033
3
Tightening torque 145Nm
Supplied with the compressor
Included in tandem kit
1
2
3
To connect the equalization line on rotolock connections, the organ pipe, adaptor sleeves, Teon gaskets included
in the tandem accessory kit must be used.
Organ pipe
Tightening torque 100Nm
Tightening torque 145Nm
Supplied with the compressor
Included in tandem kit
Oil equalization design DSH482-535, DSH590 to DSH1800
The oil level is balanced by a pipe of 1"3/8 or 1"5/8. To connect the equalization line on rotolock connections, the
adaptor sleeves included in the tandem or trio accessory kit must be used.
Figure 39: DSH482-535, DSH590 to DSH1800
Scroll compressors, DSH090 to DSH600 | Mechanical connections
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 36
