Danfoss H1 Series User Manual

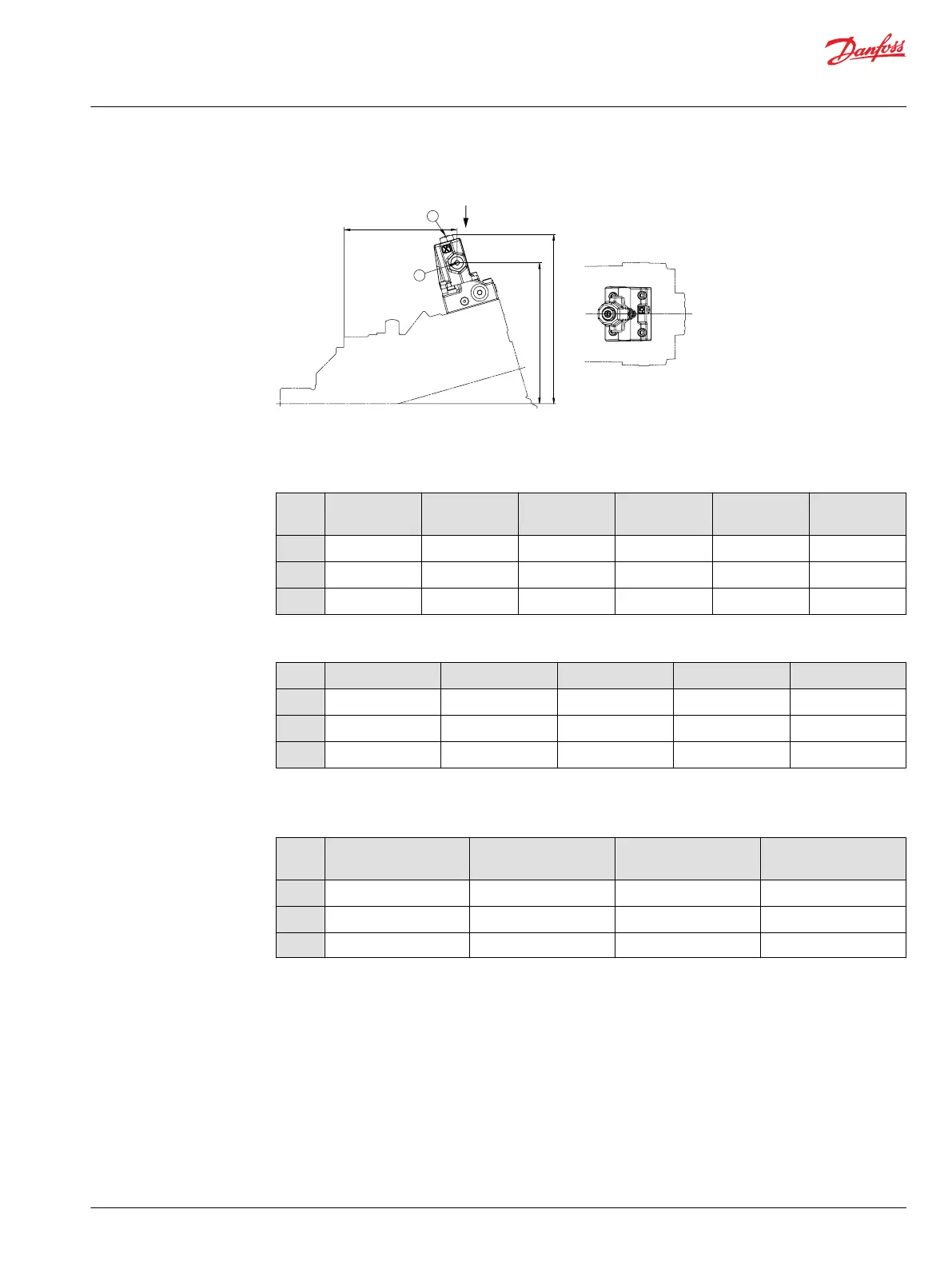

Option MHCA (Hydraulic proportional control)
EA
EB
AB
X
X
P108796
1
2
1. Pilot Pressure Gauge Port “X1” ISO 11926-1 9/16-8
2. Start pressure adjustment screw
SAE mounting flange per ISO 3019/1 dimensions (mm [in])
Size 060
SAE 127-4
Size 080
SAE 127-4
Size 110
SAE 152-4
Size 160
SAE 152-4
Size 210
SAE 165-4
Size 250
SAE 165-4
AB
224.2 [8.83] 228.4 [8.99] 239.9 [9.44] 257.6 [10.14]
272 [10.71]
282.8 [11.13]
EA
158.8 [6.25] 171.5 [6.75] 193.4 [7.61] 213.1 [8.39]
231.7 [9.12]
245.5 [9.67]
EB
172.2 [6.78] 188.7 [7.43] 200.2 [7.88] 217.8 [8.57]
232.2 [9.14]
243.0 [9.57]
DIN B4 HL mounting flange per ISO 3019/2 dimensions, (mm [in])
Size 060 – DIN 125 Size 080 – DIN 140 Size 110 – DIN 160 Size 160 – DIN 180 Size 210 – DIN 200
AB
224.2 [8.83] 228.4 [8.99] 239.9 [9.44] 257.6 [10.14]
272 [10.71]
EA
134.4 [5.28] 147.5 [5.81] 160.9 [6.33] 181.2 [7.13]
199.7 [7.86]
EB
172.2 [6.78] 188.7 [7.43] 200.2 [7.88] 217.8 [8.57]
232.2 [9.14]
Size 250 is not available.
Cartridge mounting flange dimensions (mm [in])
Size 060
Cartridge 160
Size 080
Cartridge 190
Size 110
Cartridge 200
Size 160
Cartridge 200
AB
224.2 [8.83] 228.4 [8.99] 239.9 [9.44] 257.6 [10.14]
EA
74.6 [2.94] 69.1 [2.72] 78.9 [3.11] 98.8 [3.89]
EB
172.2 [6.78] 188.7 [7.43] 200.2 [7.88] 217.8 [8.57]
Size 210 and 250 are not available.
Technical Information
H1 Bent Axis Variable Displacement Motors, Size 060/080/110/160/210/250
Dimensions – Controls on H1B motors
©
Danfoss | December 2016 11037153 | BC00000043en-US1103 | 133
