Danfoss H1 Series User Manual

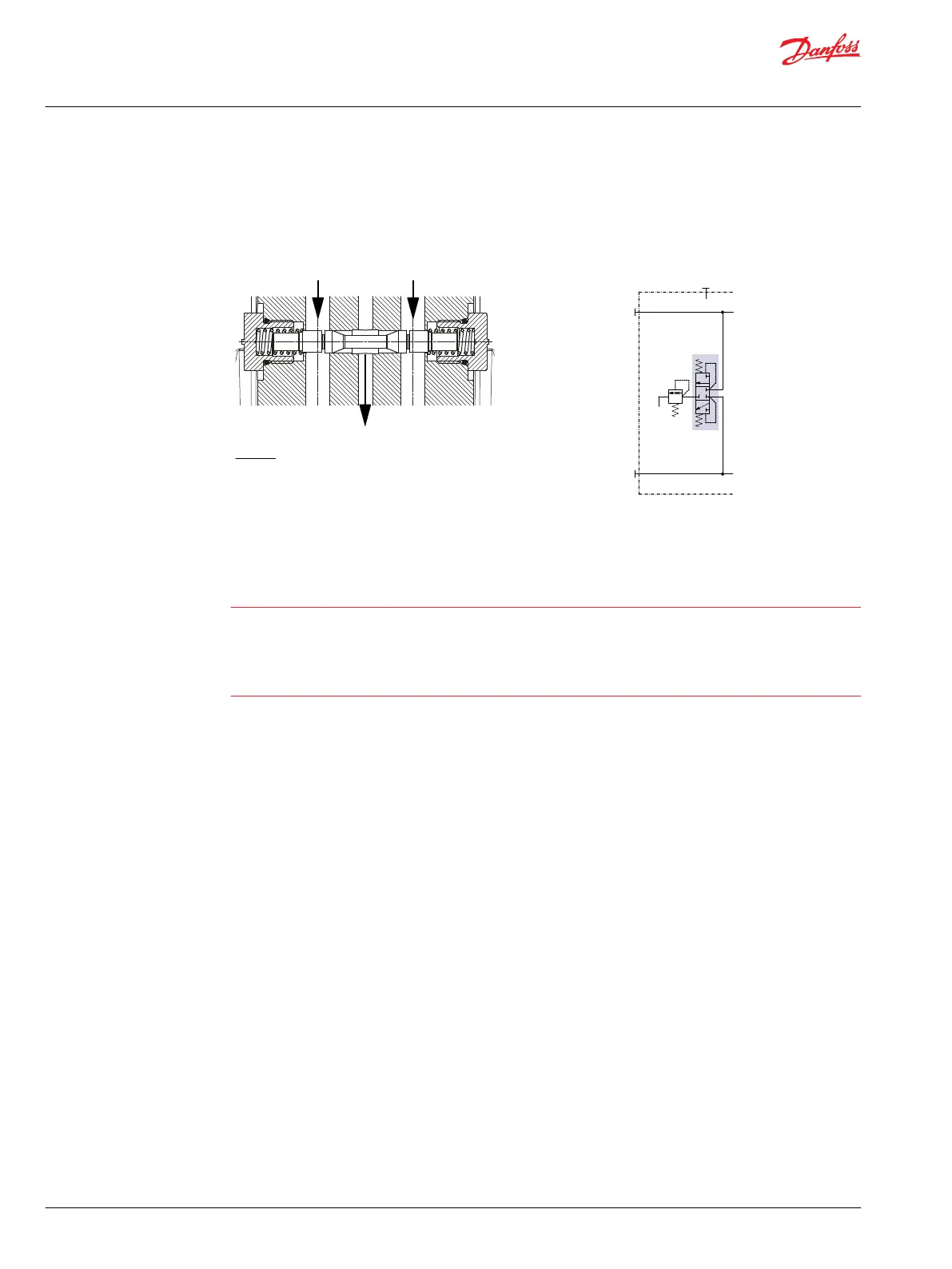

Loop flushing shuttle spool
An integral loop flushing shuttle spool is used to separate system A and system B pressures.
System delta pressure will cause the shuttle spool to shift, allowing the low side system pressure to flow
to the loop flushing relief valve.
P006033
A
LFRV
B
Legend:
A System loop A
B System loop B
LFRV to Loop flushing relief valve
P003 437
A
B
L2
W
Warning
Unintended vehicle or machine movement hazard.
Excessive motor loop flushing flow may result in the inability to build required system pressure in some
conditions. Maintain correct charge pressure under all conditions of operation to maintain pump control
performance in hydrostatic systems.
Technical Information
H1 Bent Axis Variable Displacement Motors, Size 060/080/110/160/210/250
Operation
20 |
©
Danfoss | December 2016 11037153 | BC00000043en-US1103
