Danfoss H1 - H1 P Input Shaft - Option F1 (SAE C, 21 Teeth)

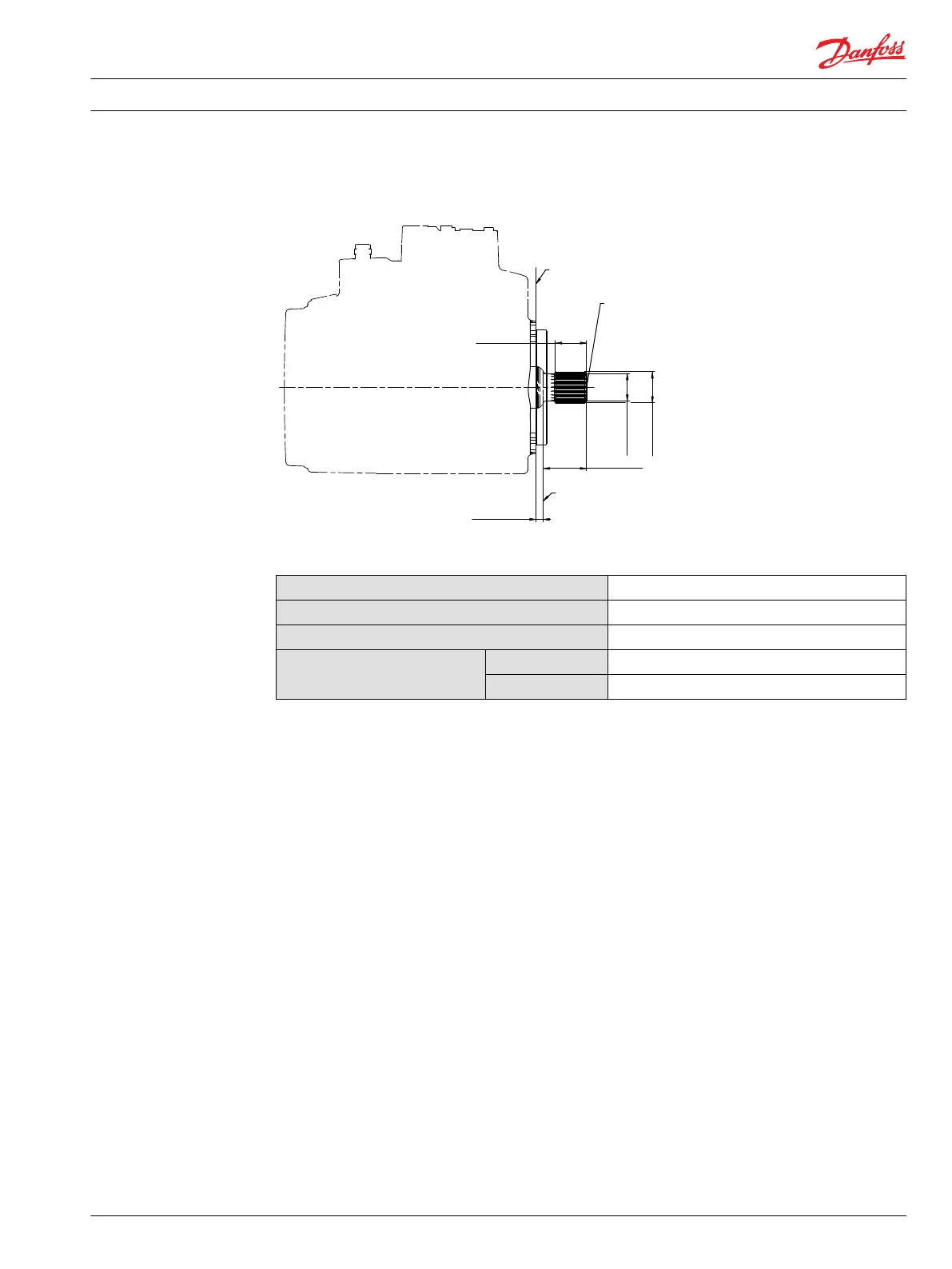

H1P input shaft - Option F1 (SAE C, 21 teeth)
Option F1, ISO 3019-1, outer dia 35 mm-4 (SAE C, 21 teeth)
34.5 ±1
[1.358 ±0.039]
Ø34.42 ±0.09
[1,355 ±,004]
48 ±1
[1.890 ±0.039]
Ø30.4 ±0.25
[1.197 ±.010]
8.05 ±0.8
[0.317 ±0.031]
Mounting flange surface
Flange 127 - 4 per ISO 3019-1
To be paint free
Spline data
Number of teeth : 21
Pitch fraction : 16/32
Pressure angle : 30°
Pitch-ø : ø33,337 [ø1,313]
typ of fit : Flat root, side fit
Per : Ansi B92.1-1996 Class 5
Coupling must not
protrude beyond
this surface
P003 263E
Specifications
Option
F1
Spline
21 teeth, 16/32 pitch
Min. active spline length
1)
34.5 mm [1.358 in]
Torque rating
2)
Rated
760 N•m [6730 lbf•in]
Maximum
1137 N•m [10 060 lbf•in]
1)
Minimum active spline length for the specified torque ratings.
2)
For definitions of maximum and rated torque values, refer to Basic Information 11062168, section Shaft Torque
Ratings and Spline Lubrication.
Technical Information H1 Axial Piston Single Pumps, Size 069/078
Dimensions
11062169 • Rev 0700 • November 2015 41
