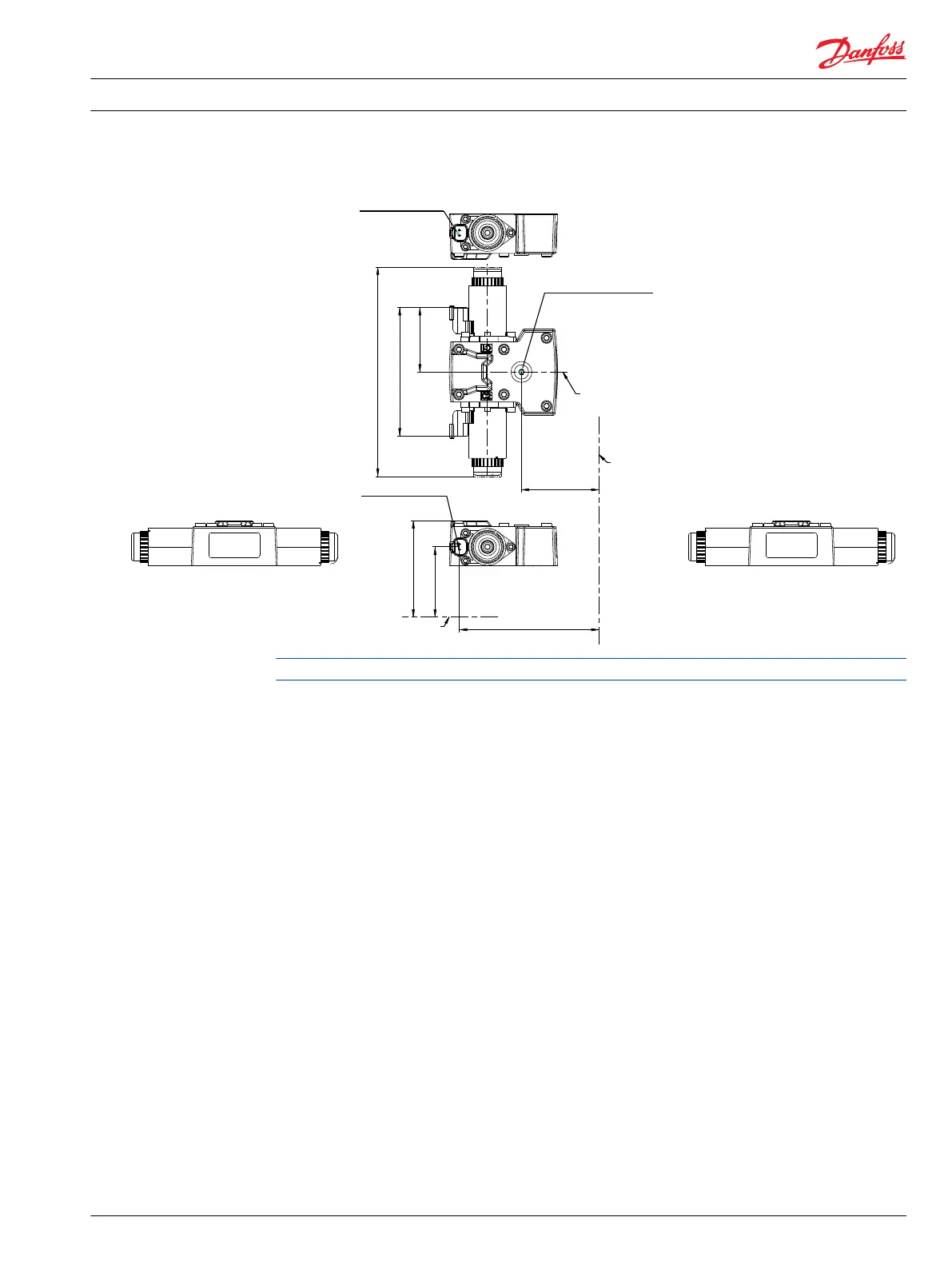

Forward-Neutral-Reverse (FNR) with manual override, option A9 (12 V)/B1 (24 V)
2x 139.3 ± 1
[5.484 ± 0.039]
77.2 ± 1
[3.04 ± 0.039]
Mounting flange
Shaft
Shaft
178.86 ± 1
[7.042 ± 0.039]
2x 152.86 ± 1
[6.018 ± 0.039]
Connector
Deutsch DT04-2P:
To be paint free
Connector :
Deutsch DT04-2P
To be paint free
Case gauge port "M14"
Port ISO 11926-1 -7/16-20
∅ 21 max clearance dia for fitting
128.4 ± 2
[5.055 ± 0.079]
64.2 ± 1
[2.528 ± 0.039]
209 MAX
[8.228]
P003 257E
Please contact Danfoss Power Solutions representative for specific installation drawings.
Technical Information
H1 Axial Piston Single Pumps, Size 069/078
Controls
11062169 • Rev 0700 • November 2015 59
