Danfoss H1 Technical Information

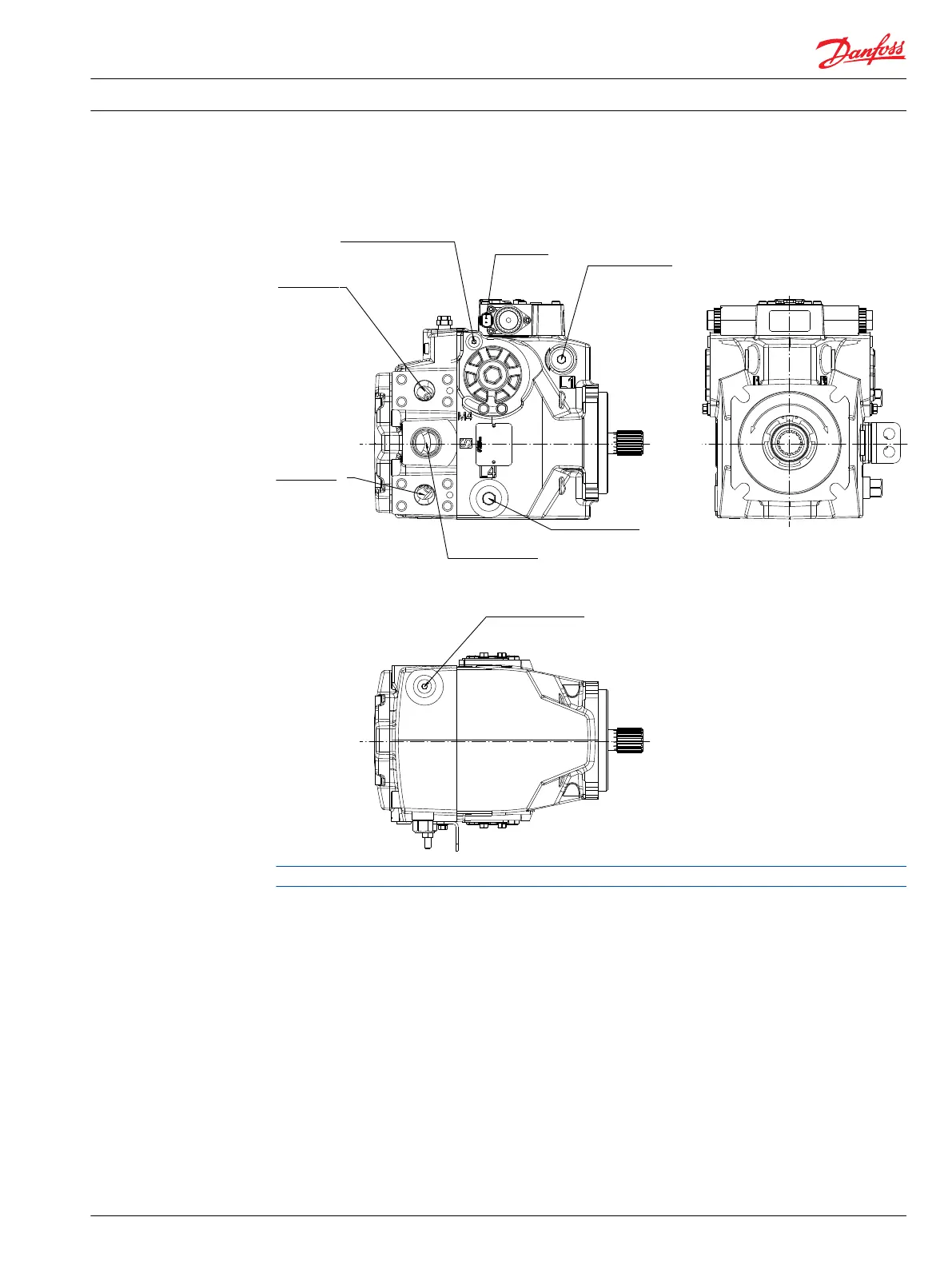

Ports description H1P 069/078
P003 324E
CCW
Rotation
CW
Rotation
Case pressure port
Port ISO 11926-1 -7/8-14
∅42 max clearance dia for fitting
Servo gauge port "M4"
Port ISO 11926-1 -7/16-20
∅21 max clearance dia
For fitting
Case drain port "L4"
Port ISO 11926-1 -1 1/16-12
∅48 max clearance dia for fitting
M12 X 1,75
System port "B"
∅25.4 - 450bar
Split flange boss
Per ISO 6162
M12 x 1.75
20 min.
Full thread depth
Recommended screw-in depth
1.5 x thread dia
System port "A"
∅25.4 - 450bar
Split flange boss
Per ISO 6162
M12 x 1.75
20 min.
Full thread depth
Recommended screw-in depth
1.5 x thread dia
Charge inlet port "S"
Port ISO 11926-1 -1 5/16-12
∅63 max clearance dia for fitting
System A gauge port "MA"
Port ISO 11926-1 -9/16-18
∅28 max clearance dia for fitting
Connector :
Deutsch DT04-2P
To be paint free
Please contact Danfoss Power Solutions representative for specific installation drawings.
Technical Information
H1 Axial Piston Single Pumps, Size 069/078
Installation drawings
11062169 • Rev 0700 • November 2015 49
