Danfoss H1 - H1 P 069;078 Manual Displacement Control (MDC), Option M1

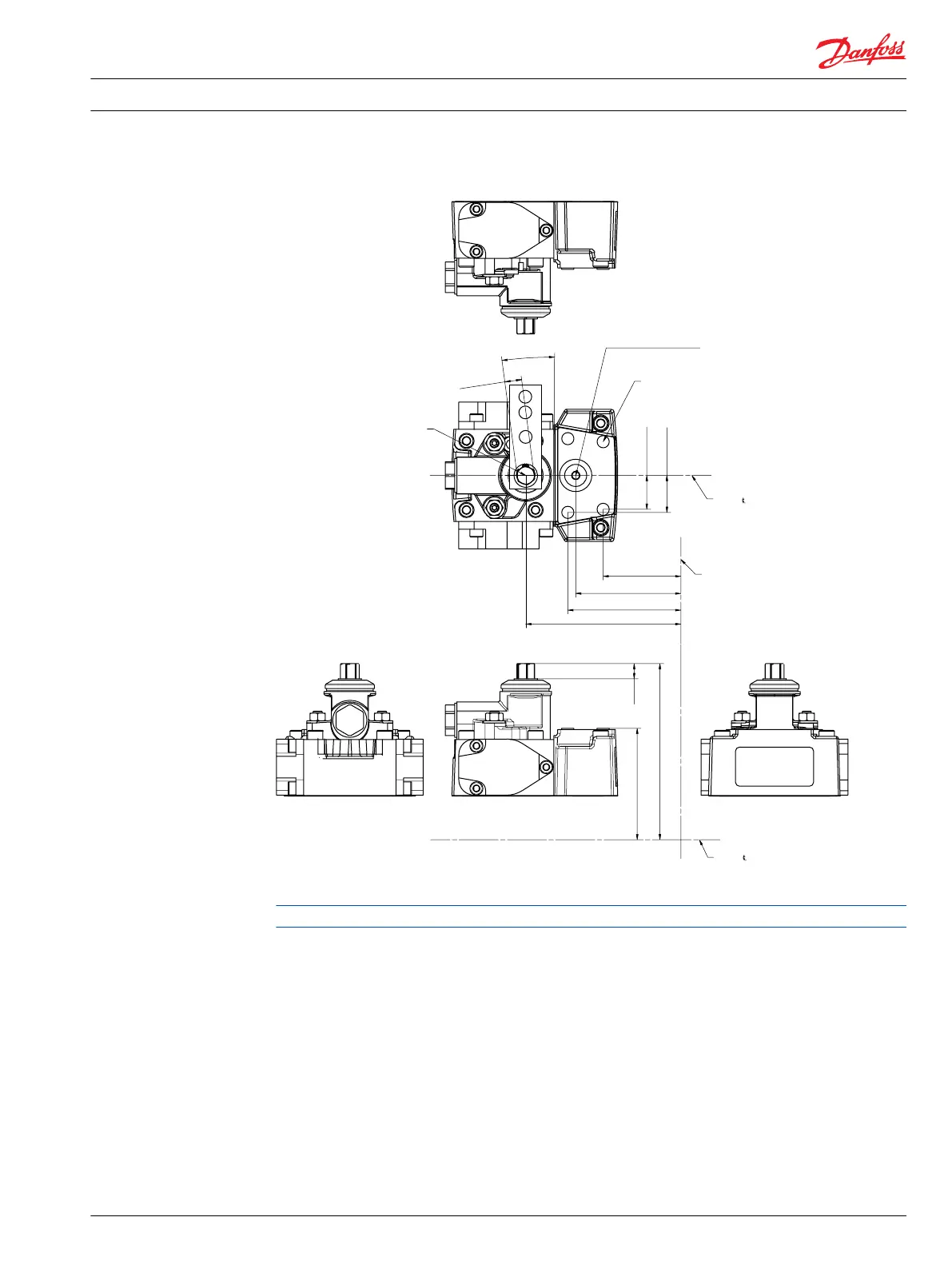

H1P 069/078 Manual Displacement Control (MDC), option M1
70052604-D10
Mounting flange
50.7±0.8
68.5±0.8
73.7±0.8
101.1±0.8
2x22±0.5
9.8
+1
220.26±2.5
178.16±1.2
2x24±0.5
4x M6x1-6H thd.
9 min. full thd. depth
paint free
Case gauge port M14
ISO 11926-1 -7/16-20
Shaft
Shaft
0
7.5±1°
3x11
-0.02
-0.08
Control handle shaft
Please contact Danfoss Power Solutions representative for specific installation drawings.
Technical Information
H1 Axial Piston Single Pumps, Size 069/078
Controls
11062169 • Rev 0700 • November 2015 55
