Danfoss H1 Technical Information

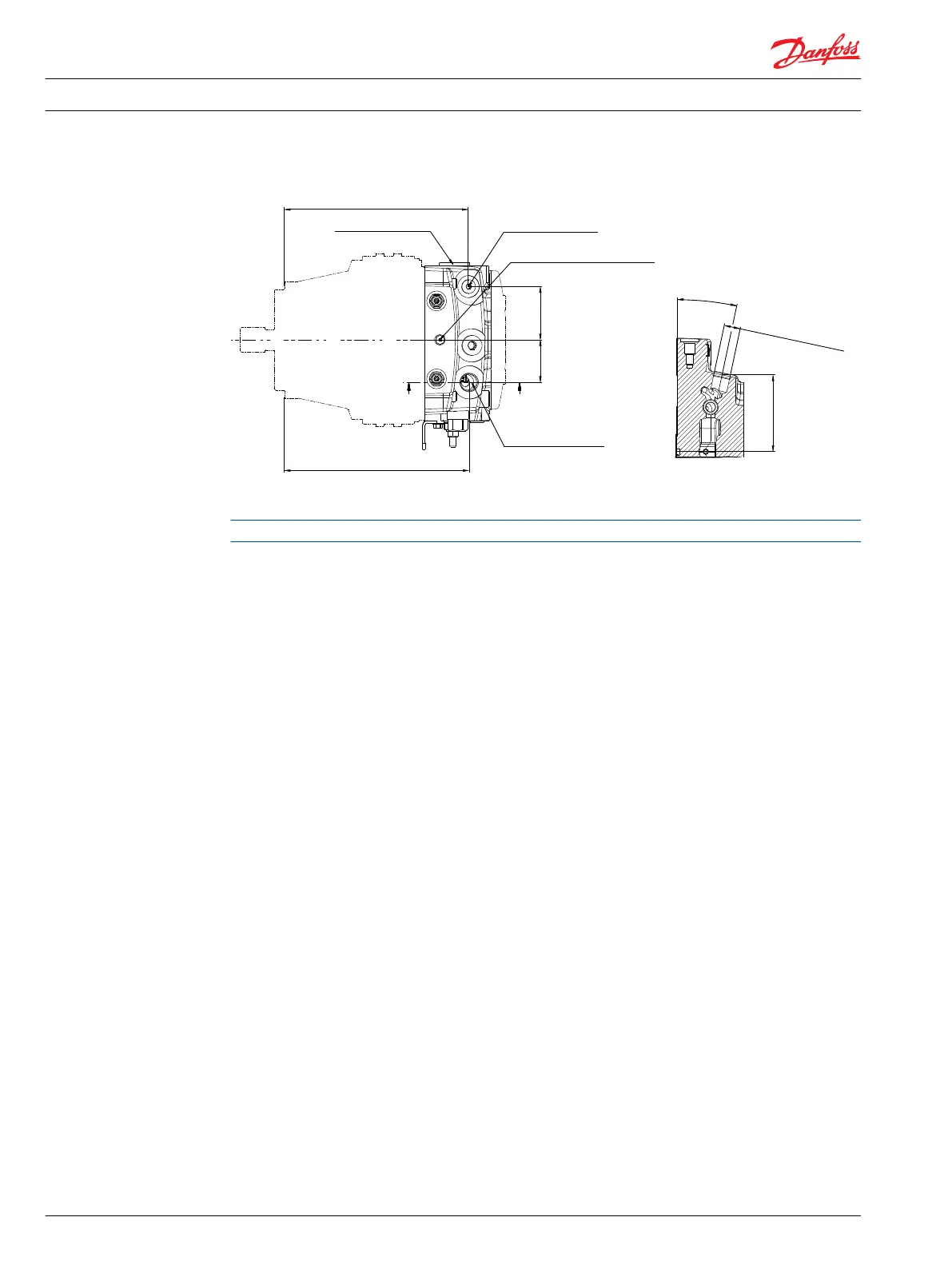

External full flow charge pressure filtration, option S for end cap options D8 or F5
231.415 ±1
[9.111 ±0.039]
232.515 ±1
[9.154 ±0.039]
67 ±1
[2.638 ± 0.039]
53.5 ±1
[2.106 ± 0.039]
System B gauge port "MB"
Port ISO 11926-1 -9/16-18
∅28 max clearance dia for fitting
Charge pressure construction port
Port ISO 11926-1 -5/16-24
Charge filtration port "E"
Port ISO 11926-1 -7/8-14
∅42 max clearance dia for fitting
From filter
E-E
96.5 ±1
[3.799 ± 0.039]
12º
Charge filtration port "E"
Port ISO 11926-1 -7/8-14
∅42 max clearance dia for fitting
From filter
Charge inlet port "S"
Port ISO 11926-1 -1 5/16-12
Closed with plug
E E
P301 299
Please contact Danfoss Power Solutions representative for specific installation drawings.
Technical Information H1 Axial Piston Single Pumps, Size 069/078
Filtration
66 11062169 • Rev 0700 • November 2015
