Danfoss H1 - Integral Full Flow Charge Pressure Filtration with Filter Bypass Sensor, Option M

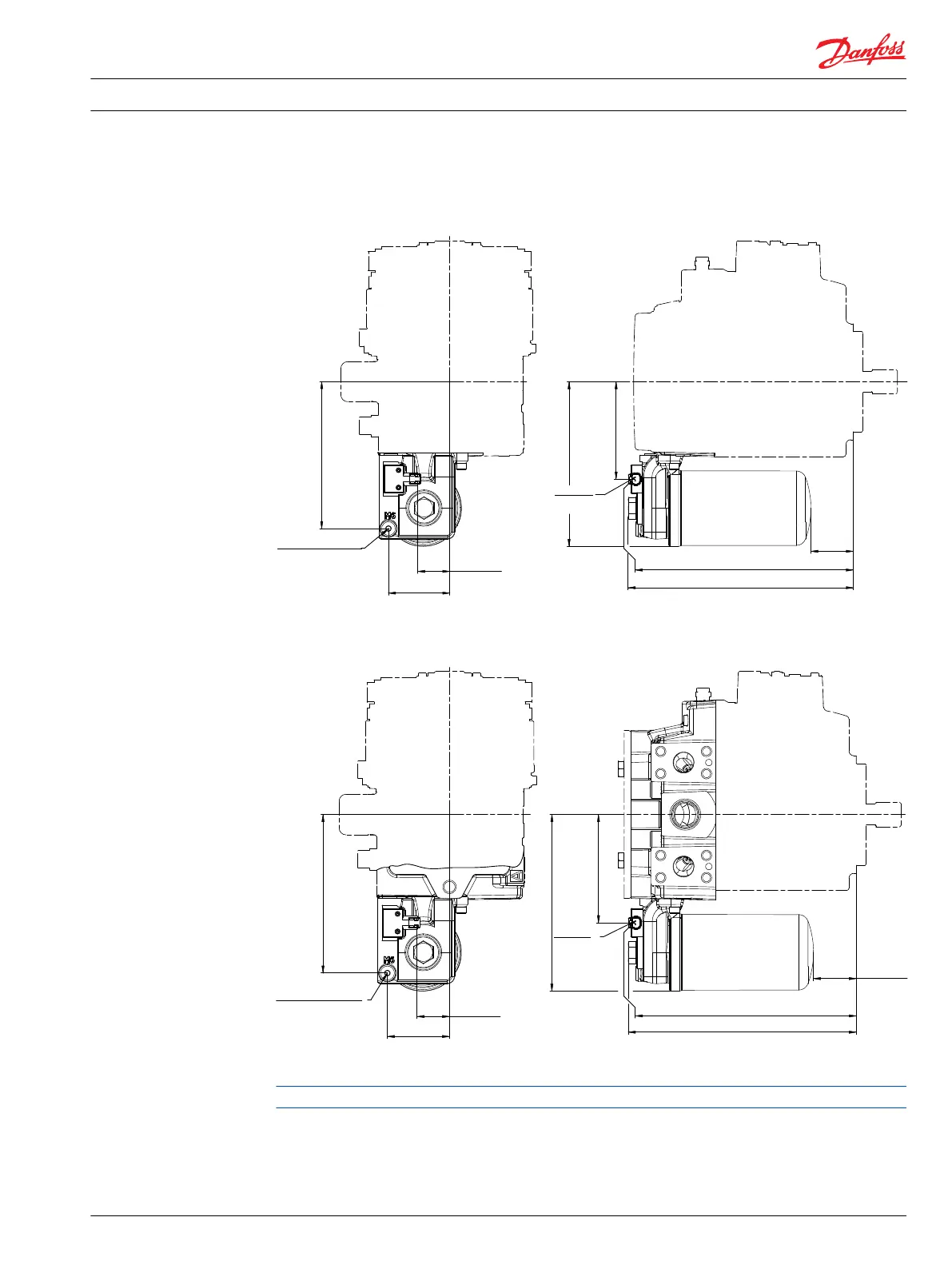

Integral full flow charge pressure filtration with filter bypass sensor, option M
Integral full flow charge pressure filtration with filter bypass sensor, option M
53.58 ±1
[2.110 ±0.039]
208.649 ±1
[8.215 ±0.039]
123.26 ±1
[4.853 ±0.039]
276.405 ±1
[10.882 ±0.039]
285.214 ±1
[11.229 ±0.039]
Connector:
Deutsch DTM04-2P
To be paint free
77.751 ±1
[3.061 ±0.039]
186.268 ±1
[7.333 ±0.039]
40.6 ±1
[1.598 ± 0.039]
Charge gauge port "M6"
Port ISO 11926-1 -9/16-18
Ø28 max clearance
Dia for fitting
Before filter
P003 246E
Integral full flow charge pressure filtration with filter bypass sensor, option M, for end cap option F4 (SAE-C
PTO)
53.58 ±1
[2.110 ±0.039]
220.7 ±1
[8.687 ±0.039]
135.268 ±1
[5.326 ±0.039]
276.405 ±1
[10.882 ±0.039]
285.214 ±1
[11.229 ±0.039]
Connector:
Deutsch DTM04-2P
To be paint free
198.267 ±1
[7.806 ±0.039]
77.751 ±1
[3.061 ±0.039]
40.6 ±1
[1.598 ±0.039]
Charge gauge port "M6"
Port ISO 11926-1 -9/16-18
Ø28 max clearance
Dia for fitting
Before filter
P301 297
Please contact Danfoss Power Solutions representative for specific installation drawings.
Technical Information
H1 Axial Piston Single Pumps, Size 069/078
Filtration
11062169 • Rev 0700 • November 2015 65
