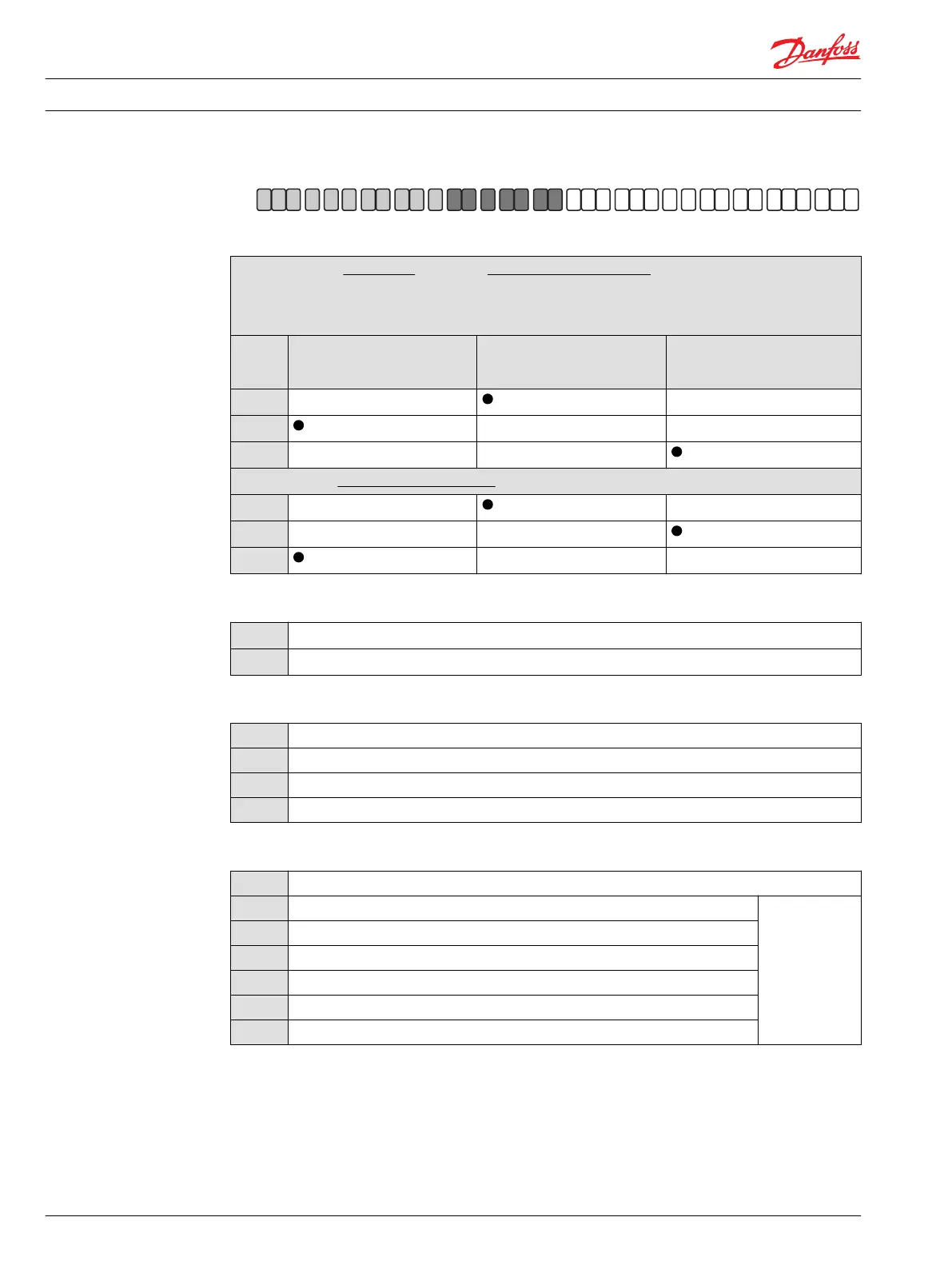

Danfoss H1 Technical Information

A
G H J K M N S T V W X YZ D EF
A
H1P
A B
G – Endcap options (Twin port, ISO 6162 split flange ports)
Align with options T – Filtration (below) and K – Auxiliary mounting pads:
•
ISO 3019-1, flange 82–2 (SAE A, 9 and 11 teeth)
•
ISO 3019-1, flange 101–2 (SAE B, 13 teeth)
•
ISO 3019-1, flange 101–2 (SAE B-B, 15 teeth) or None
Code Suction filtration Integral full charge flow
filtration
Remote or external charge
supply for full charge flow
filtration
D3
– –
D6
– –
D8
– –
Align with option K – Auxiliary mounting pad: ISO 3019-1, flange 127–4 (SAE C, 14 teeth)
F4
– –
F5
– –
F6
– –
H – Mounting
H
ISO 3019-1, flange 127–4 (SAE C)
K
ISO 3019-1, flange 127–4 (SAE C), 4-bolt and speed sensor
J – Input shaft per ISO 3019-1
G1
Outer Ø32 mm - 4 (SAE C, 14 teeth splined shaft 12/24 pitch)
F1
Outer Ø35 mm - 4 (SAE C, 21 teeth splined shaft 16/32 pitch)
G9
Outer Ø38 mm - 4 (SAE C-C, 23 teeth splined shaft 16/32 pitch
F4
Conical keyed shaft end similar to code 38-3, taper 1:8 (key not supplied with pump)
K – Auxiliary mounting pad per ISO 3019-1 (Align with option G: Endcap selection)
NN
None
H2
Flange 82–2, outer Ø16 mm - 4 (SAE A, 9 teeth 16/32 coupling)
Shipping cover
H1
Flange 82–2, outer Ø19 mm - 4 (SAE A, 11 teeth 16/32 coupling)
H3
Flange 101–2, outer Ø22 mm - 4 (SAE B, 13 teeth 16/32 coupling)
H5
Flange 101–2, outer Ø25 mm - 4 (SAE B-B, 15 teeth 16/32 coupling)
H6
Flange 127–4, outer Ø32 mm - 4 (SAE C, 14 teeth 12/24 coupling)
S1
Flange 101–2, outer Ø22 mm - 4 (SAE B, 14 teeth 12/24 coupling, not SAE standard)
Technical Information H1 Axial Piston Single Pumps, Size 069/078
Master model code H1P 069/078
12 11062169 • Rev 0700 • November 2015
