4.
5.
6.

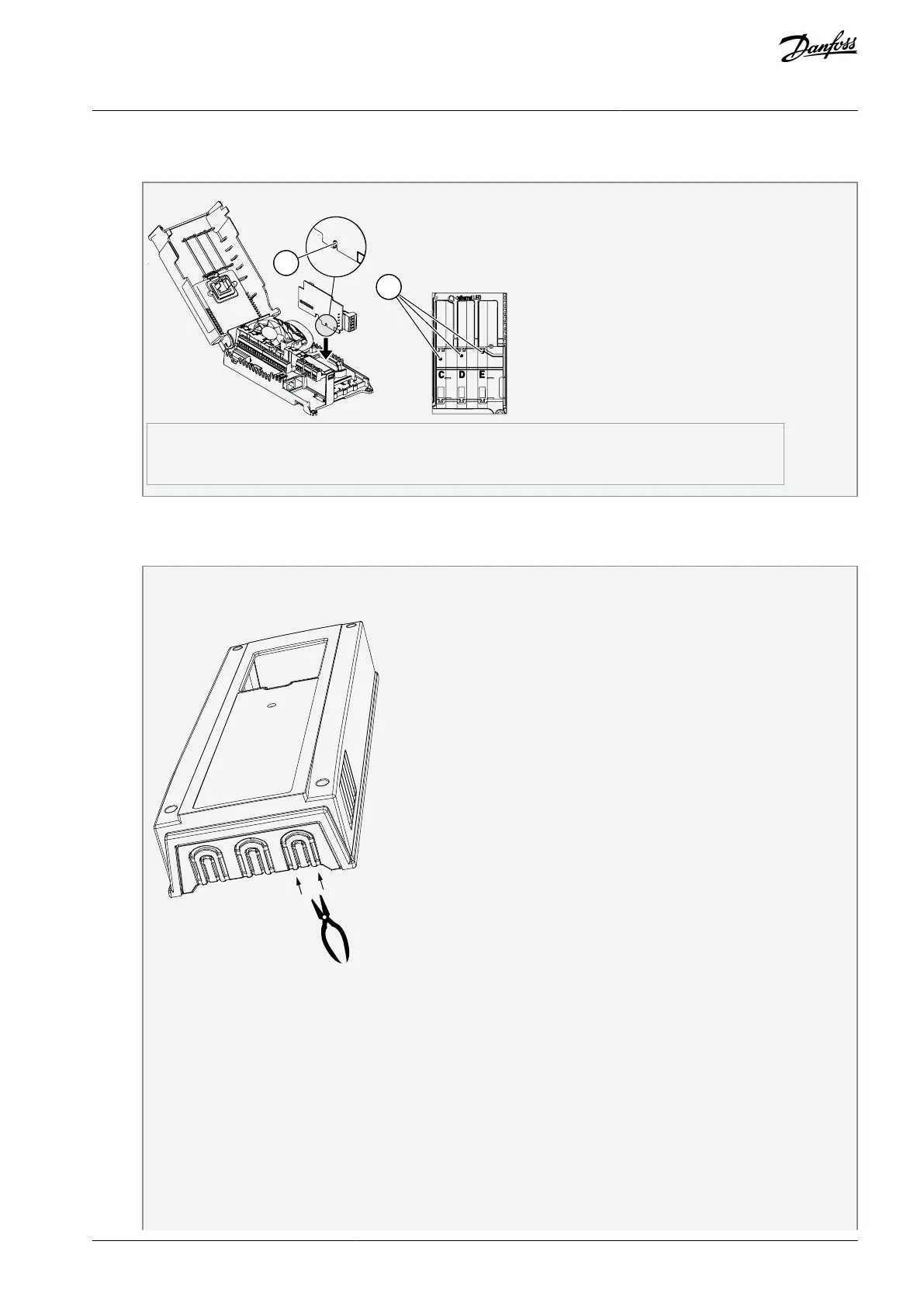

Install the option board into the slot D or E. Installation of option board into an in correct slot has been physically preven-
ted. Do not use force.
B
A
e30bg849.10
A
The slot coding
B
The slot options
Close the cover of the control unit.
In IP21, cut free the opening on the cover of the AC drive for the fieldbus cable.
In IP54, cut a hole in a grommet and move the cable through it.
Make the connection tight. In internal fieldbus, make the opening on the left side. When installing into the slot D or E,
make the opening on the right side.
e30bh336.10
Illustration 1: IP21
