7.
8.

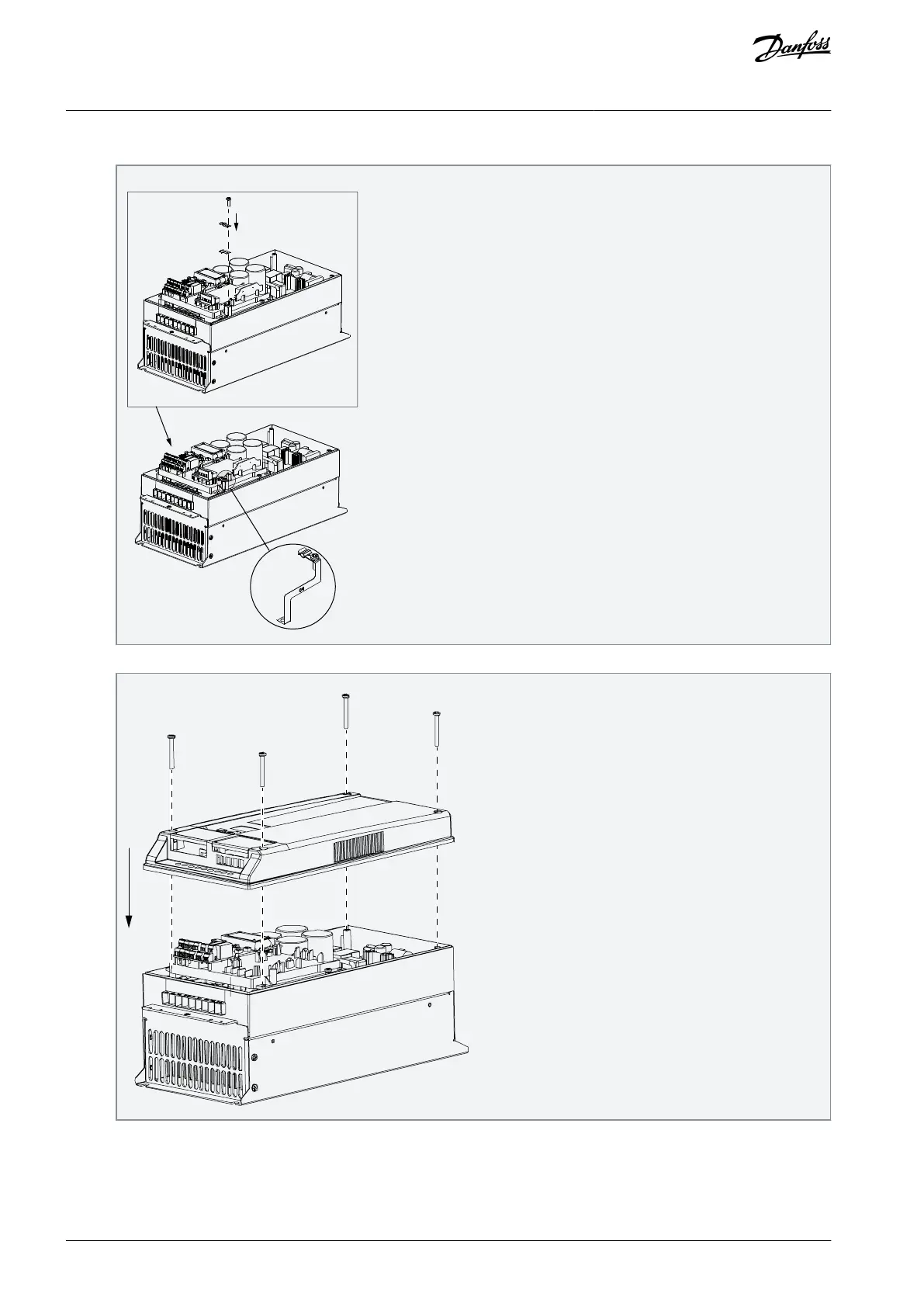

Put a clamp on top of the grounding plate on both sides of the option board.
e30bi057.10
In MI4, close the cover of the drive. In MI5, attach the fan connector and close the cover of the AC drive.
e30bi058.10
