4.
5.

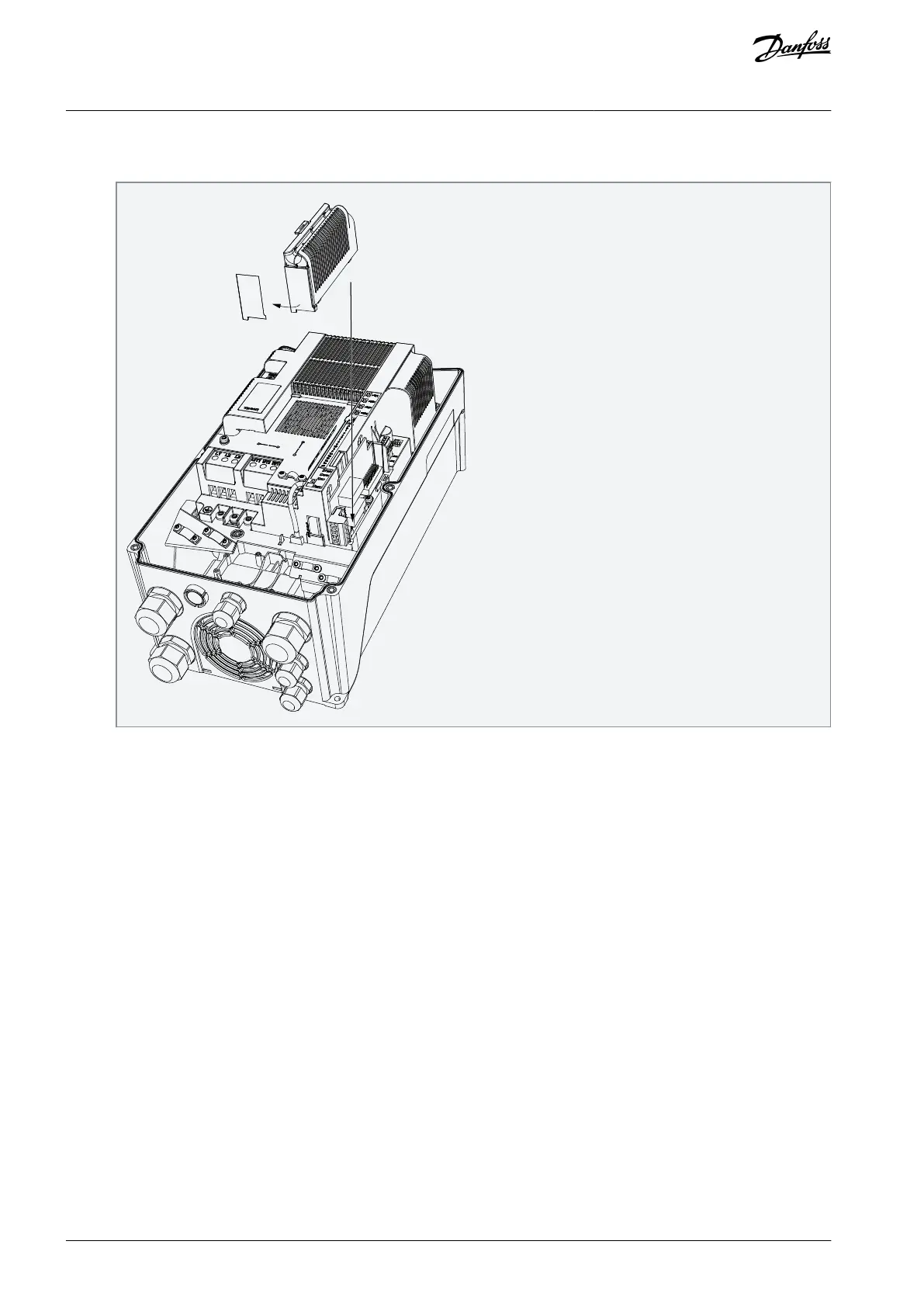

To make an opening for the option board connector, remove the plastic plate at the end of the option board cover. Attach
the option board cover to the AC drive.
e30bi063.10
Close the cover of the AC drive.
