Danfoss VLT 3516 User Manual

VLT
®
Series 3500
12
Type Input Overall Dimensions Mounting Dimensions
VAC H W D a b c d
Chassis* 380 11.81 (300) 11.18 (284) 7.01 (178) 10.16 (258) 7.48 (190) 2.17 (55) 2.17 (55)
NEMA 1* 380 15.35 (390) 11.18 (284) 7.01 (178) 10.16 (258) 7.48 (190) 4.53 (115) 3.35 (85)
NEMA 12 380 20.87 (530) 11.18 (284) 7.01 (178) 10.16 (258) 12.99 (330) 4.53 (115) 3.35 (85)
inches (mm)
W
a
b
c
0.98
(25)
0.33
(8.5)
Ø0.57
(14.5)
D
H
d
Add-On Module
2.28
(58)
10.16
(258)
11.18
(284)
7.01
(178)
4.53
(115)
0.98
(25)
0.33
(8.5)
Ø0.57
(14.5)

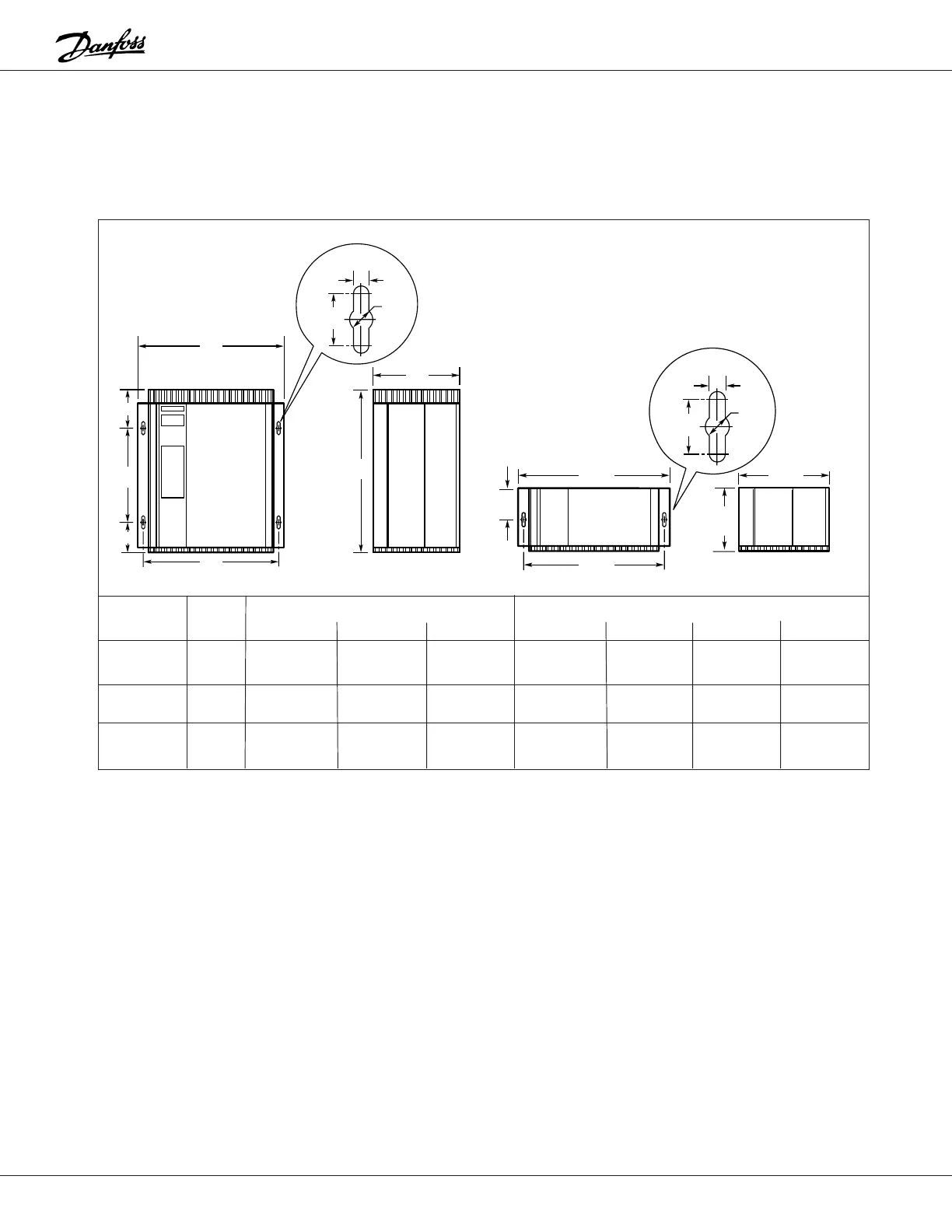

VLT 3505 Dimensions
* Additional dimensions for Fan Option:
Chassis 2.36 (60) to H; 2.36 (60) to c
NEMA 1 1.18 (30) to H; 1.18 (30) to c
