VLT
®
Series 3500
52
Drive Setup
When the drive is first powered up, the items in the Quick
Setup menu should be viewed and changed as required.
The Quick Setup menu items are shown below. If
preferred, these items can be viewed and changed from
the Extended menu.
Quick setup no. Extended menu Designation Settings Data Entry
0 000 Language Choose from six languages Choose English (typical)
1 104 Motor voltage Check nameplate on motor Enter line voltage 460 (typical)
2 107 Motor current Check nameplate on motor Enter FLA motor amps
3 105 Motor frequency Check nameplate on motor Enter 60 Hz (typical)
4 412 Speed reference Select reference range Choose 0 to 10 V DC (typical)
5 413 Speed reference Select reference range Choose 4 to 20 mA (typical)
6 201 Min. frequency Select desired frequency Enter 20 Hz (typical)
7 202 Max. frequency Select desired frequency Enter 60 Hz (typical)
8 215 Ramp up Select desired time Enter 30 sec (typical)
9 216 Ramp down Select desired time Enter 30 sec (typical)
Return to Factory Defaults
It is possible to globally return all parameters to the
factory default settings. If undocumented changes have
been made to the settings and the drive is not responding
as it should, it is possible to start over.
Returning to the factory defaults may affect all
parameters. Be sure to review all parameters for desired
settings after returning to the factory defaults.
There are three ways to return to factory defaults.
1. One way initializes the EEPROM and therefore resets
everything. To do this, first remove power from the
drive. Then press and hold the “Menu”, “Data” and
“Local/Hand” keys while reapplying power. Release
the keys after the third line in the display reads “init
eeprom”.
2. If you wish to retain the settings of parameters 501
(PC communication), 821, 822, 904 and 918 (Profibus
communication), the cumulative kWh and total running
hours, use Parameter 604 to reset to factory settings
instead. See parameter 604. Set it to INITIALIZE [3] .
3. It is also possible to return the parameter sets to the
factory defaults one set at a time or all at once. If
multiple settings are used, it may be desirable to
change only one of them, or change them one at a
time. Use the procedure for parameter 001 and
parameter 002 to copy the factory defaults to a single
parameter set or to all four parameter sets.

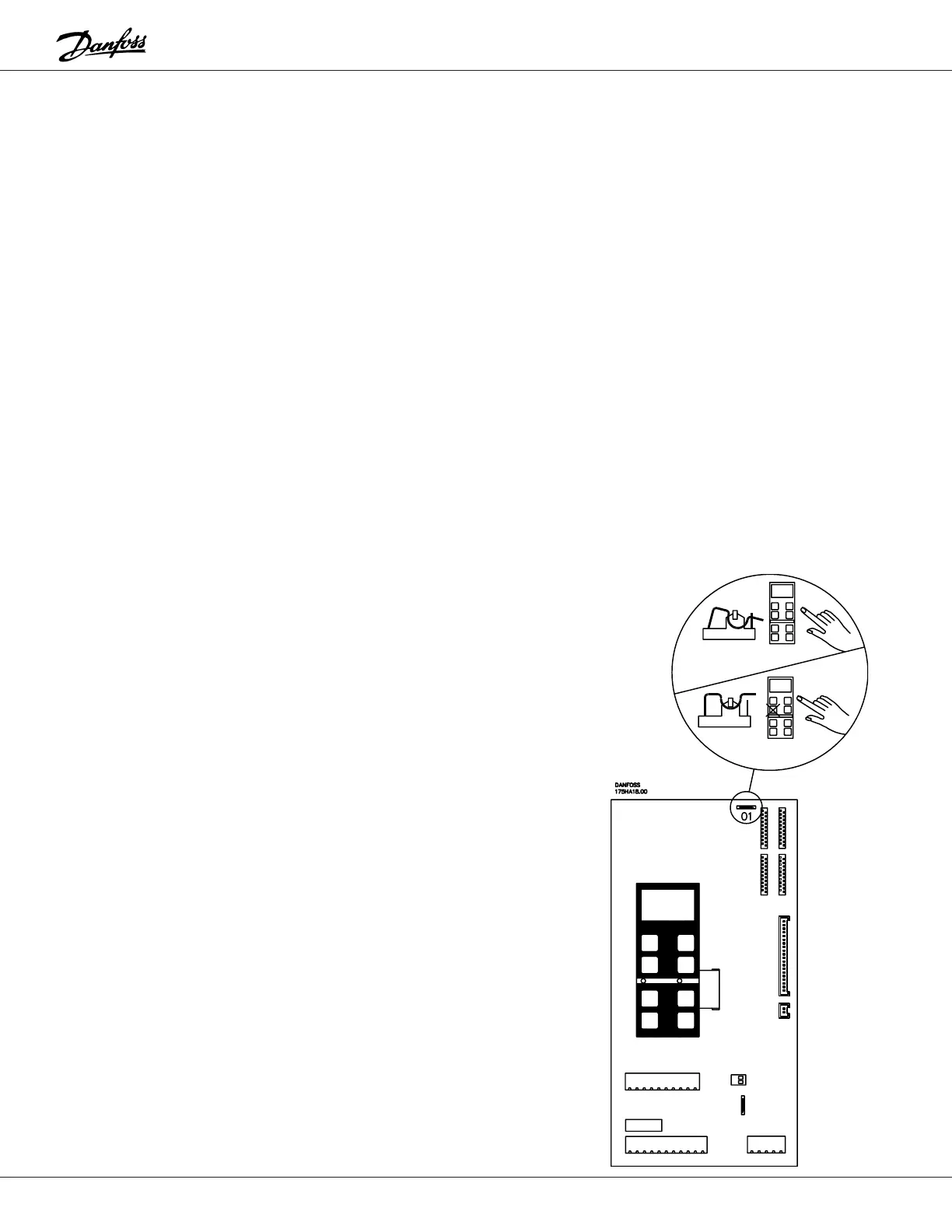

Lockout
Unwanted programming can be prevented by opening
switch pin 01 on the control card. When the switch pin is
open, changes cannot be made to the programming. The
Local/Hand, Stop/Reset, Remote/Auto, and Start keys
are functional, but the programming keys are not. “LOCK
OPEN” is displaced on the third line of the display when
programming changes are attempted with the switch pin
open.
Control functions can be locked
out individually. See
parameter 006 through 010.
